Tester rezistenta izolatie la 2500V instalatii electrice Metrel MI 3102H CL EUROTEST XE 2.5kV

Cod: Metrel MI3102H MI-3102H CL-EUROTEST-XE 2.5kV

Brosura produs

PDF, 0.35 Mb

Descriere

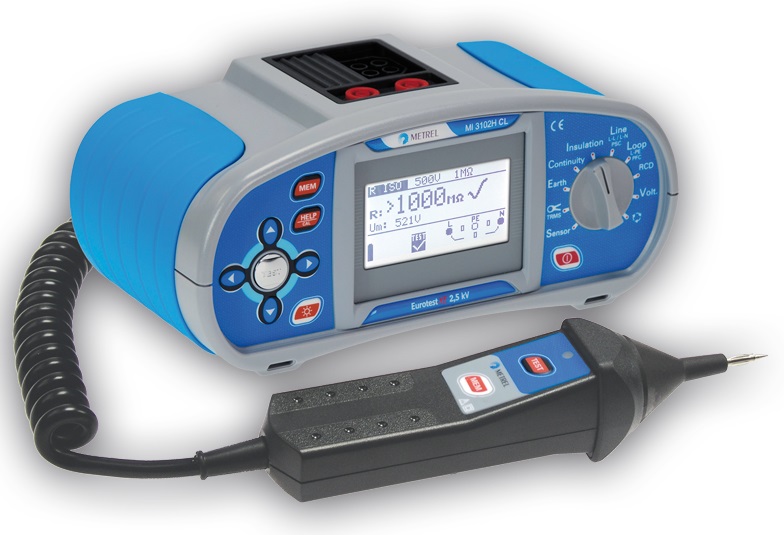

MI 3102H CL EurotestXE 2,5 kV is the multifunctional measuring instrument which apart from all the necessary functions for complete installation safety testing according to IEC/EN 61557 performs insulation resistance measurement with the test voltage up to 2.5 kV (reading is up to 10 G?) and enables diagnostic test by PI and DAR indexes calculation.

MEASURING FUNCTIONS

Insulation resistance with DC voltage
PI, DAR calculation
Continuity of PE conductors with 200 mA test current with polarity change
Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
Line impedance
Loop impedance
Loop impedance with Trip Lock RCD function
TRMS voltage and frequency
Phase sequence
RCD testing (general and selective, type AC, A)
Earth resistance (3-wire and 2 clamps methods)
TRMS leakage and load currents (option)
Illumination (option)

OTHER FEATURES

Wide range of insulation test voltages from 100 V to 2500 V, reading up to 10 GO.
Insulation diagnostics: Polarisation Index (PI) and Dielectric Absorption Ratio (DAR) calculation.
Built-in help screens for referencing on site.
Built-in fuse tables for automatic evaluation of the line / loop impedance result.
Monitoring of all 3 voltages in real-time.
Automatic polarity reversal on continuity test.
Loop impedance test without tripping the RCD.
Built-in charger and rechargeable batteries as standard accessory.
Automated RCD testing procedure.
PC SW Eurolink PRO for downloading of test results and report creation.

SOFTWARE

PC SW EuroLink PRO is a strong creating tool of professional Visual Inspection Report and Testing Result Report.

TECHNICAL DATA

Dimensions (w x h x l): 230 x 103 x 115 mm

Mass (without accessories): 1.3 kg

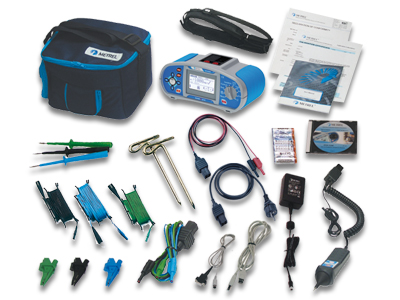

Accesorii standard

MI 3102H CL Standard set MI 3102H CL

Instrument EurotestXE 2,5 kV
Tip commander, 1.5 m
Schuko-plug test cable
2.5 kV test lead, 2 x 1.5 m
Test lead, 3 x 1.5 m
Earth test set (test lead, 4 m; 2 x test lead, 20 m; 2 x test rod)
Power supply adapter + 6 NiMH rechargeable batteries, type AA
PC Software EuroLink PRO
Test probe, 3 pcs (blue, black, green)
Crocodile clip, 3 pcs (blue, black, green)
RS232 - PS/2 cable
USB cable
Soft carrying neck belt
Soft carrying bag
Short instruction manual
Instruction manual on CD
Handbook on CD
Calibration certificate
