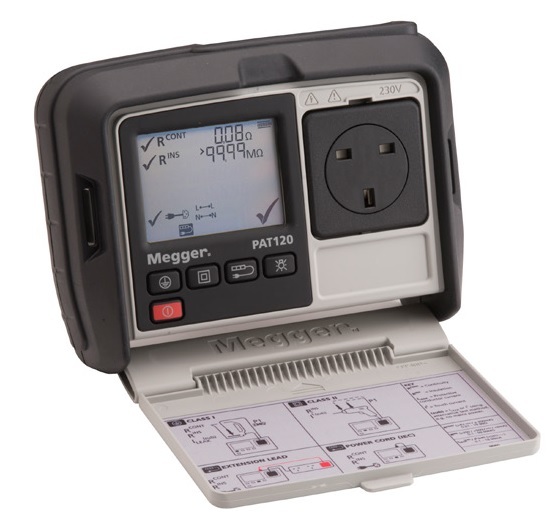

Tester instalatii electrice continuitate, izolatie, curent scurgere si atingere Megger PAT120 PAT150

• Testarea RCD de tip B şi a RCD trifazate pentru aplicaţii industriale fără împământare
• Testarea buclei fără declanșare cu două şi trei fire pentru circuite protejate de RCD
• Opţiuni de teste cu 3 poli, 3 poli cu tehnica tijei atașate, 2 poli şi fără ţăruşi pentru măsurarea rezistenţei electrodului de împământare
• Selecţie simplă a testelor codificate prin culori şi afișaj mare, clar, iluminat din spate pentru ușurinţă în utilizare
• Test de continuitate cu inversare automată a curenţilor de testare de 200 mA şi 15 mA la alegere



• Modular based design - user configurable TM1800 from nine different modules
• Built in PC with CABA Local software - advanced testing with predefined breaker test plans (templates), onsite measurement view and analysis
• Dual ground testing using DCM module - increased safety with both sides of breaker grounded
• Fast and easy testing - Select-Connect-Inspect workflow and high level user interface
• Graphical results for quick interpretation - timing and motion measurements, coil currents
• USB and Ethernet communication interface - for quick back up, LAN connection and printer options
• CABA Win - for advanced data analysis, database interface and common test data archive



• Most advanced primary current injection test system to simplify all types of switchgear and CT commissioning, ground grid, circuit breaker testing and more
• Up to 5000 A output current
• Two units, each of about 20 kg, makes it easier to carry
• Unique I/30 function allows the current to be pre-set using low current to prevent test sample heating, thus eliminating corruption of test result



• Safe test DualGround
• Auto range: 1 ½O to 1000 mO
• Bluetooth® PC communication
• Complies with IEEE and IEC standards



• DC and AC current and voltage
• 600 A and 600 V
• Resistance and continuity
• 31/2 digit, 4000 count display with backlight
• High resolution digital bargraph



• Testarea izolaţiei până la 1000 V şi 200 GΩ
• Tensiune de testare a izolaţiei stabilizată (Nou)
• Gamă unică, testare a continuităţii mai rapidă de la 0,01 Ω la 1 MΩ
• Măsurare tensiune AC şi DC 600 V T RMS
• CAT IV 600 V şi IP54



• Testare diagnostică cu suită completă de teste
• PI Predictor™ reduce timpul de testare la jumătate
• Testare precisă cu RE>Act™
• Stocare încorporată şi export ușor de date
• Conceput pentru testare sigură pe teren



• High or low output power selection for condition diagnosis
• Rechargeable battery or line power supply, continuous operation, even with dead battery
• 10 A for 60 seconds, less time waiting to cool, great for charging inductance
• High input protection to 600 V, inadvertent connection to line or UPS voltage will not blow a fuse
• Heavy duty case: IP 65 lid closed, IP54 operational (battery operation only)
• Rotary switch selects one of five test modes, including auto start on connection, giving ease of use



• TDR20000/2P can perform single or dual channel measurements on a wide range of metallic cables
• dead or Live cables to CATIII 300V Phase to earth or 415V phase to phase can be tested.



• Full autoranging for measuring the length of power, telephony, CATV and LAN cables, provides distance to an open or short.
• Extra large, high resolution backlit LCD.
• Automatic output impedance control of 25, 50, 75, 100, 125 or 150 ohms.
• User-friendly menu on screen operation.
• Cable length calibration function.
• Internal library of 39 standard cable types.
