The PST series are 3-channel, 96 or 158W, programmable linear DC power supplies. High resolution, maintained at 10mV, 1mA ( 3A). OVP, OCP, and OTP, protects the PST-Series and its loads from unexpected conditions. The PST Series are capable of independent, series, or parallel operation for increased flexibility. The large LCD display conveniently displays all outputs and configurations simultaneously to simplify operation. The programmable interface allows automatic stepping, 100 set of memory, and comprehensive timing operations. GPIB and RS232C interfaces, Labview driver,s and SCPI compatibility allow easy ATE software development and remote control. The versatile PST-Series is ideal for high resolution, multiple output, and automated operations such as production testing and rack mounting systems.

Features:

Digitized programmable interface
high resolution 10mV, 1mA
192 x 128 LCD display, simultaneously
Over-voltage, over-current, over temperature protection
Intelligent fan control (changes by output power)
100 Sets memory
Auto step running with timer
Provided auto series and parallel function
Labview driver

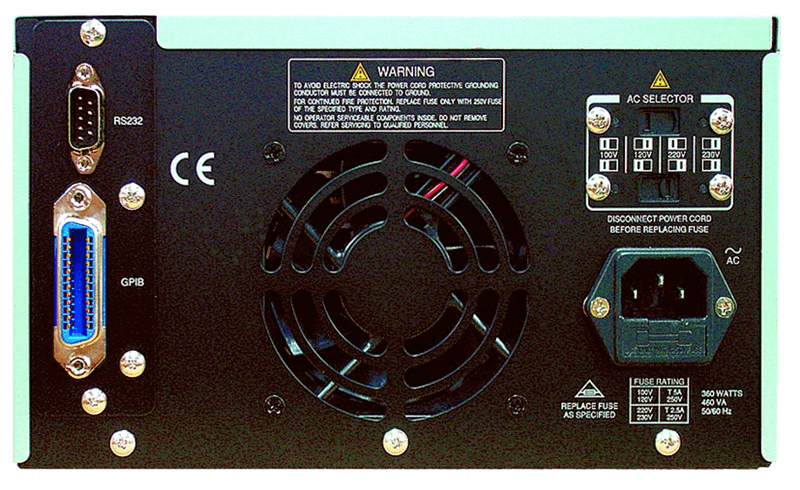

Standard interface: RS-232C
Optional: GPIB (IEEE-488.2)
Optional European jack type terminal
