GOODWILL INSTEK GCM-403 & GCM-407

Cod: GOODWILL INSTEK GCM-403 & GCM-407




Brosura produs PDF, 0.89 Mb


Descriere

Digital Clamp Meter -- ACA, ACV, DCV, Ohm, Diode, Buzzer.

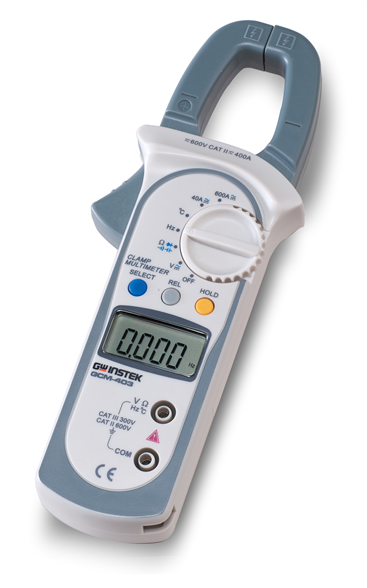

The GCM-403 is digital clamp meter can measure AC/DC voltage, AC/DC current, resistance, diodes, continuity, capacitance, frequency and temperature.  Tapered jaws, auto range, data hold, REL function and auto power off which makes it a superb tool for electricians.

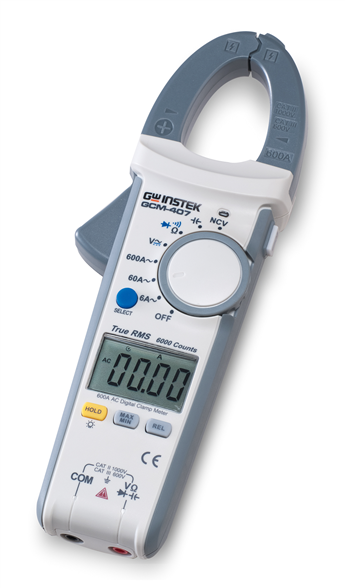

The GCM-407 is digital clamp meter with true RMS measurement. Featuring tapered jaws, a wide range (AC 600A/750V, DC 1000V max input), capacitance measurement as well as non-contact voltage sensing function and the ability to keep MAX/MIN or hold data  and automatically power down make the GCM-407 suitable for almost any cable measurement task.


Features:

  • Auto Range, Expect Current Measurement
  • Auto Power Off
  • Max Hold
  • True RMS Measurement (GCM-407)
  • (AC)600A/600V Max Input (GCM-403)
  • (AC)600A/750V Max Input (GCM-407)
  • Mini Size
  • High Accuracy
  • MAX Clamp Size: 28mm (GCM-403)
