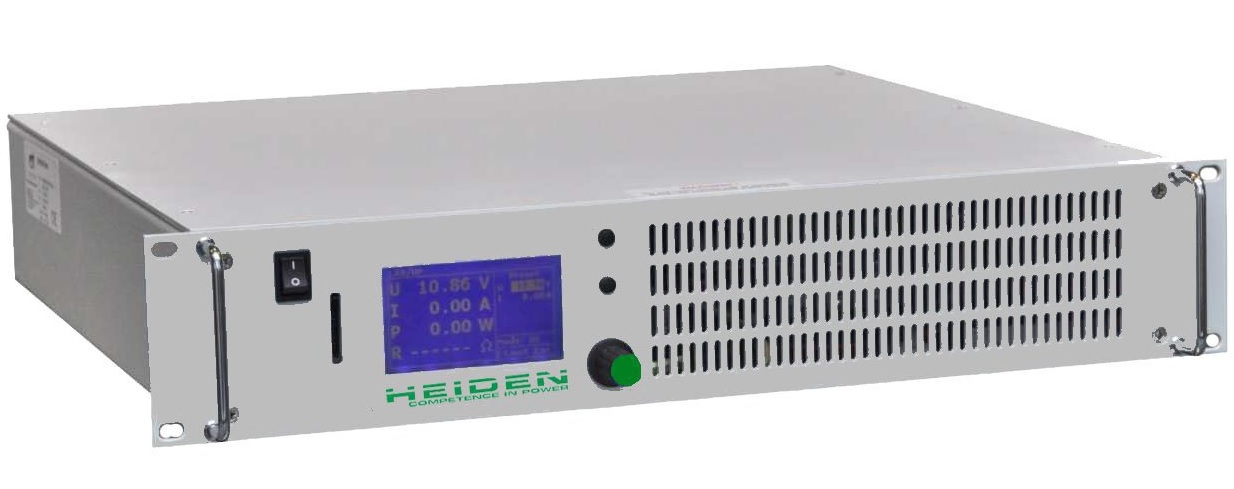

Very compact and high power with excellent performance. The NEW HE-LAB/SMS series is available from 3 to 10 kW with only 2U hight. Expandable with the master-slave option up to 90 kW.

Efficiency up to 94 %
Compact Design
Active and Parallel connectable
Easiest operation via front panel
Constant Current, Voltage, Resistance and Power Operation
Randomly programmable Memory Locations for U/I waves
UI, UIP, UIR Mode, Simulation of PV-Arrays
Script Control: process programming and booting from memory card
Creating user defined output characteristics via memory card or digital interface
Digital Interfaces IEEE 488, RS232/485, USB and LAN (optional)
Galvanically isolated Analogue Interface 0-5V or 0-10V
(user selectable; optional)
Storable U/I wave forms (e.g. for PV simulation and sequential control)
Graphical Display
Special version on request
Datalog function: operation values can be saved in an adjustable interval to a memory card
Script operation in combination with Datalog function allows an independent stand-alone test field setup
Umax and Imax randomly selectable to limit maximum output voltage and current

Model

Power(W)

Voltage(V)

Current(A)

Dimensions

HE-LAB/SMS 315

3.000

0 - 15

200

19" x 2U x 440mm

HE-LAB/SMS 335

3.000

0 - 35

19" x 2U x 440mm

HE-LAB/SMS 345

3.000

0 - 45

19" x 2U x 440mm

HE-LAB/SMS 370

3.000

0 - 70

19" x 2U x 440mm

HE-LAB/SMS 3150

3.000

0 - 150

19" x 2U x 440mm

HE-LAB/SMS 3300

3.000

0 - 300

19" x 2U x 440mm

HE-LAB/SMS 3600

3.000

0 - 600

19" x 2U x 440mm

HE-LAB/SMS 31000

3.000

0 - 1000

19" x 2U x 440mm

HE-LAB/SMS 31200

3.000

0 - 1200

2,6

19" x 2U x 440mm

HE-LAB/SMS 420

4.000

0 - 20

200

19" x 2U x 440mm

HE-LAB/SMS 435

4.000

0 - 35

115

19" x 2U x 440mm

HE-LAB/SMS 445

4.000

0 - 45

19" x 2U x 440mm

HE-LAB/SMS 470

4.000

0 - 70

19" x 2U x 440mm

HE-LAB/SMS 4150

4.000

0 - 150

19" x 2U x 440mm

HE-LAB/SMS 4300

4.000

0 - 300

19" x 2U x 440mm

HE-LAB/SMS 4600

4.000

0 - 600

19" x 2U x 440mm

HE-LAB/SMS 41000

4.000

0 - 1000

19" x 2U x 440mm

HE-LAB/SMS 41200

4.000

0 - 1200

3,4

19" x 2U x 440mm

HE-LAB/SMS 525

5.000

0 - 25

200

19" x 2U x 440mm

HE-LAB/SMS 535

5.000

0 - 35

150

19" x 2U x 440mm

HE-LAB/SMS 545

5.000

0 - 45

120

19" x 2U x 440mm

HE-LAB/SMS 570

5.000

0 - 70

19" x 2U x 440mm

HE-LAB/SMS 5150

5.000

0 - 150

19" x 2U x 440mm

HE-LAB/SMS 5300

Optiuni recomandate

Options	Description
../WI	Input 90 - 264 VAC
../230	Input 110-126 VAC
../230	Input 230 / 207 - 253 VAC
../3P400	Input 3 x 400 / 360 - 440 VAC
../3P440	Input 3 x 440 / 396 - 484 VAC
../3P480	Input 3 x 480 / 432 - 528 VAC
../400Hz	Input 400Hz
../DC	Input 250 - 750VDC
../ATE	Only ATE mode, no frontpanel
../ATI5/10	Isolated analogue interface 0 - 5 / 0 - 10 VDC set and monitor
../LT	Interface IEEE488
../LTRS485	Interface RS485
../LTRS232	Interface RS232
../LAN	Interface LAN
../USB	Interface USB
../KFZ12	Car starting curve 12 VDC
../KFZ24	Car starting curve 24 VDC
../OPT	Output characteristics
../SD	SD Card Slot
../M-S	Master-Slave Option for max. 20 kW
