Brand: Heiden

Sursa DC de curent inalt 120kW Heiden 1138/ 1139

Cod: Heiden 1138/ 1139





Descriere

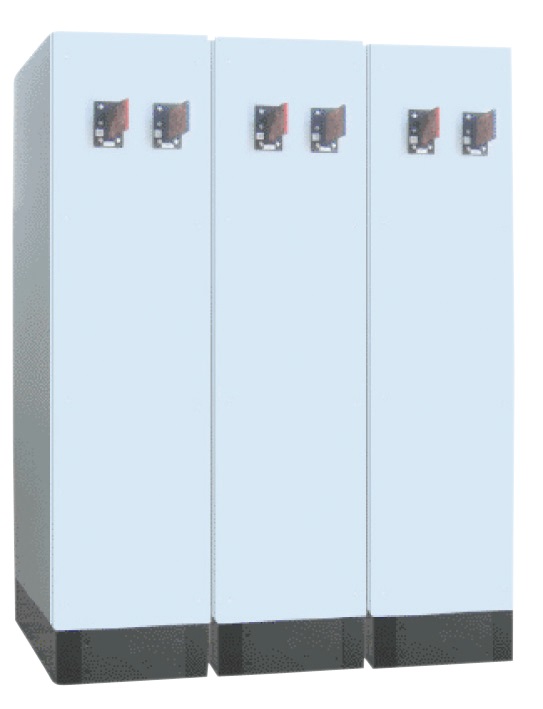

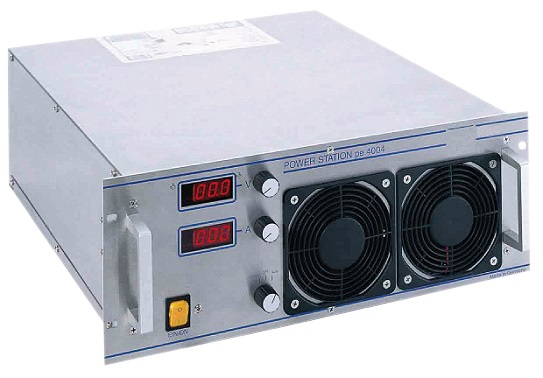

The high-current power supplies Series 1138 & 1139 may affect up to 50V supply a current up to 24000A. These high-current power supplies are created customized and there is a 19"module or cabinet.



  • Wide application
  • A high-current applications of 5000 and more
  • customized configuration
  • robust and inexpensive
  • Sense, soft start
  • remote control, analog, freely definable voltages and currents up to max. 75 kW
  • RS485, LAN, Profibus
  • Water cooling
  • parallel to 24000 A and 120 kW
  •

DC power source suitable for:

  • Electroplating
  • Chrome
  • Anodized
  • Electrophoresis


Optiuni recomandate



Order Number

kW

Current (A)

 Voltage (V)

1138-006100

0,6 kW

0 … 100 A

6 V

1138-006200

1,2 kW

0 … 200 A

6 V

1138-006300

1,8 kW

0 … 300 A

6 V

1138-006500

3,0 kW

0 … 500 A

6 V

1138-006001

6,0 kW

0 … 1000 A

6 V

1138-006002

12,0 kW

0 … 2000 A

6 V

1138-015100

1,5 kW

0 … 100 A

15 V

1138-015200

3,0 kW

0 … 200 A

15 V

1138-015300

4,5 kW

0 … 300 A

15 V

1138-015500

7,5 kW

0 … 500 A

15 V

1138-015001

15,0 kW

0 … 1000 A

15 V

1138-015002

30,0 kW

0 … 2000 A

15 V

1138-024100

2,4 kW

0 … 100 A

24 V

1138-024200

4,8 kW

0 … 200 A

24 V

1138-024300

7,2 kW

0 … 300 A

24 V

1138-024500

12,0 kW

0 … 500 A

24 V

1138-024001

24,0 kW

0 … 1000 A

24 V

1138-024002

48,0 kW

0 … 2000 A

24 V

1138-050100

5,0 kW

0 … 100 A

50 V

1138-050200

10,0 kW

0 … 200 A

50 V

1138-050300

15,0 kW

0 … 300 A

50 V

1138-050500

25,0 kW

0 … 500 A

50 V

1138-050001

50,0 kW

0 … 1000 A

50 V

1138-RS232



Interface



1138-analog



RCP (insulated)



1138-500



handheld



1138-50x



19" Control field







Order Number

kW

Current (A)

Voltage (V)

1139-006100

0,6 kW

0 … 100 A

6 V

1139-006200

1,5 kW

0 … 250 A

6 V

1139-006500

3,0 kW

0 … 500 A

6 V

1139-006001

6,0 kW

0 … 1000 A
