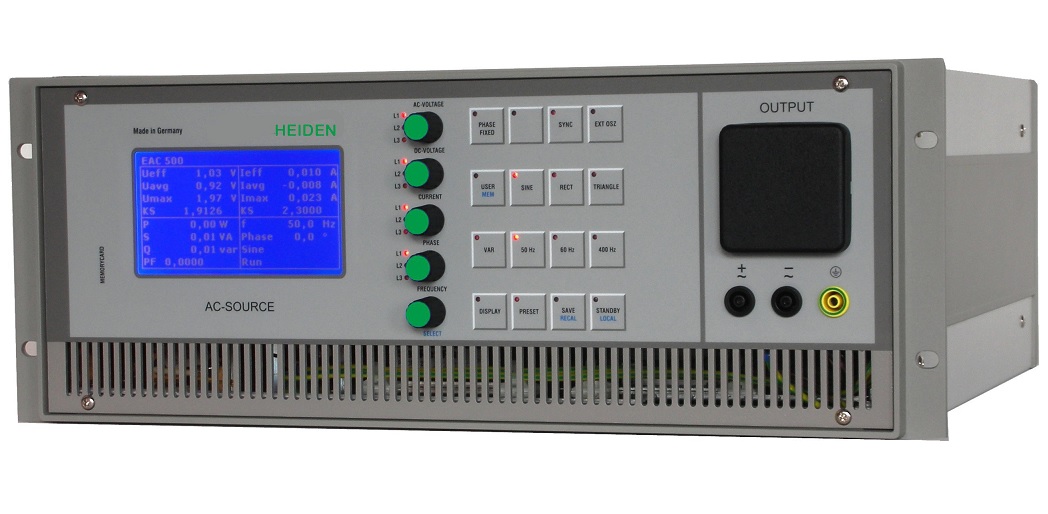

Electronic AC Sources are used to simulate frequency, voltage, wave form, phase angles and current of different single- and three-phase networks. The single- and three-phase AC sources feature excellent control data and cover a power range from 250 VA to 10 kVA per Phase.

Power range from 250 VA to 10 kVA
Output voltage from 0-700 V AC and 1000 V DC per phase
Variable frequency from 1 to 2000 Hz,
Wave forms sine, triangle and rectangle
Maximum current up to 80 A per phase
Simulation of 1 or 3 phases
Graphic Display
Measurement of voltage, actual current, average value, peak current, actual power, no power, apparent power, Power- and crest factors
Voltage and current mode operation
Free memory for three programmable curves (WAV files),
enabled via an external SD card. (option)
Integrated measuring curves for different standards (EN, MIL�.)
Adjustable External Oscillator input ± 10 V ± 360 ° phase (option)
Computer interface: IEEE, RS 232 / 485, USB, LAN (option)
Customer specific models on request

Order Number	Current rms/dc	Power(VA)	Voltage
HE-ACS-250	3,0 / 3,0 A	250 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-500	6,0 / 6,0 A	500 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-1000	10,0 / 10,0 A	1000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-2000	15,0 / 15,0 A	2000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-3000	20,0 / 20,0 A	3000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-4000	30,0 / 30,0 A	4000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-5000	35,0 / 35,0 A	5000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-6000	40,0 / 40,0 A	6000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-7000	50,0 / 50,0 A	7000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-8000	60,0 / 60,0 A	8000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-9000	70,0 / 70,0 A	9000 VA	0 - 300 Vrms 0 - 425 V DC
HE-ACS-10000	80,0 / 80,0 A	10000 VA	0 - 300 Vrms 0 - 425 V DC

Three-Phase Models

Order Number	Current rms/dc	Power(VA)	Voltage
HE-ACS3-250	3x 3,0 / 3,0 A	750 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-500	3x 6,0 / 6,0 A	1500 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-1000	3x 10,0 / 10,0 A	3000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-2000	3x 15,0 / 15,0 A	6000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-3000	3x 20,0 / 20,0 A	9000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-4000	3x 30,0 / 30,0 A	12000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-5000	3x 35,0 / 35,0 A	15000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-6000	3x 40,0 / 40,0 A	18000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-7000	3x 50,0 / 50,0 A	21000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-8000	3x 60,0 / 60,0 A	24000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-9000	3x 70,0 / 70,0 A	27000 VA	0 - 300 Vrms 0 - 425 Vdc
HE-ACS3-10000	3x 80,0 / 80,0 A	30000 VA	0 - 300 Vrms 0 - 425 Vdc

Optiuni recomandate

HE-ACS-F1000	expendend Frequency Range up to 1 kHz
HE-ACS-F2000	expendend Frequency Range up to2 kHz
HE-ACS-V500	expendend Voltage Range up to500 Vrms
HE-ACS-V700	expendend Voltage Range up to700 Vrms
HE-ACS/opt Osz.	external Oscillator
HE-ACS/opt ATI5	Galvanic insulated Analogue Interface 0-5V
HE-ACS/opt ATI10	Galvanic insulated Analogue Interface0-10V
HE-ACS/opt 232	RS-232 Interface
HE-ACS/opt 485	RS-485 Interface
HE-ACS/opt IEEE	IEEE/GPIB Interface
HE-ACS/opt LAN	LAN Interface
HE-ACS/opt USB	USB Interface
HE-ACS/opt SD	SD Card Slot
HE-ACS/opt Sync A	Sync Output
HE-ACS/opt Sync E	Sync Input
HE-ACS/opt DIP	Output voltage can be switched off for a certain number of half-periods
HE-ACS/opt GATE	Output voltage switched on for a certain time
HE-ACS/opt 3p	3 Phase upgrade Option
