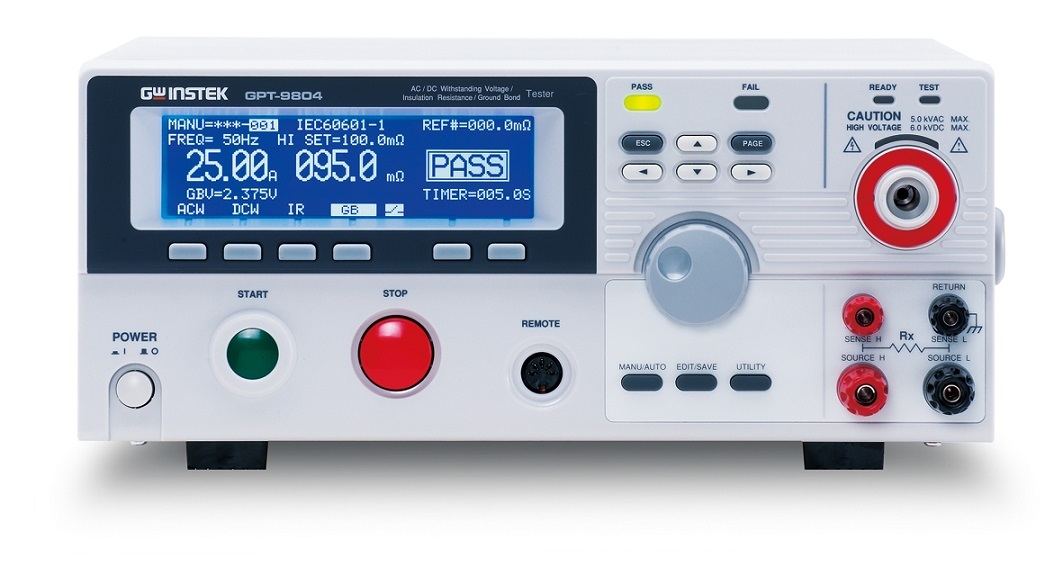

Trusa incercari 5kV GwInstek GPT-9801 GPT-9802 GPT-9803 GPT-9804

Cod: Goodwill-Instek GPT-9801 GPT-9802 GPT-9803 GPT-9804 GPT9801 GPT9802 GPT9803 GPT9804




Brosura produs PDF, 4.33 Mb

Descriere

  • 200VA AC Test Capacity
  • 240x64 Ice Blue Dot matrix LCD
  • Manual/Auto Mode
  • Function Key for quick selecting
  • High intensity flash for Caution & Status indication
  • Safety INTERLOCK function
  • Zero Crossing Turn-on Operation
  • Controllable Ramp-up Time
  • True RMS Current Measurement
  • High resolution: 1uA for measuring current, 2V for setting voltage
  • PWM amplifier to enhance the power efficiency and reliable testing
  • Max. 100 memory block for test condition (step) setting. And each step can be named individually.
  • Remote terminal on the front panel for ½start½ and ½stop½ control
  • Interface : RS-232C, USB device, Signal I/O and GPIB (optional)


GPT-9804  AC 200VA AC/DC Withstanding Voltage/ Insulation Resistance / Ground Bond Tester

GPT-9803  AC 200VA AC/DC Withstanding Voltage/ Insulation Resistance Tester

GPT-9802  AC 200VA AC/DC Withstanding Voltage Tester

GPT-9801  AC 200VA AC Withstanding Voltage Tester



Accesorii standard

Quick Start Guide x 1,

CD x1(completed user manual)

Power cord x 1,

Interlock key x 1,

Remote terminal male plug x 1,

Test lead GHT-114 x 1 for GPT-9803/9802/9801

Test lead GHT-114 x 1, GTL-115 x 1 for GPT-9804



Optiuni recomandate

Option

Opt.1 GPIB card



Optional Accessories

GHT-113   High Voltage Test Pistol

GHT-205   High Voltage Test Probe

GTL-232   RS232C Cable, 9-pin Female to 9-pin, null Modem for Computer

GTL-247   USB Cable, A-A type, approx. 1.8m

GTL-248   GPIB Cable, approx. 2m

GRA-402   RACK Adapter Panel (19½, 4U)
