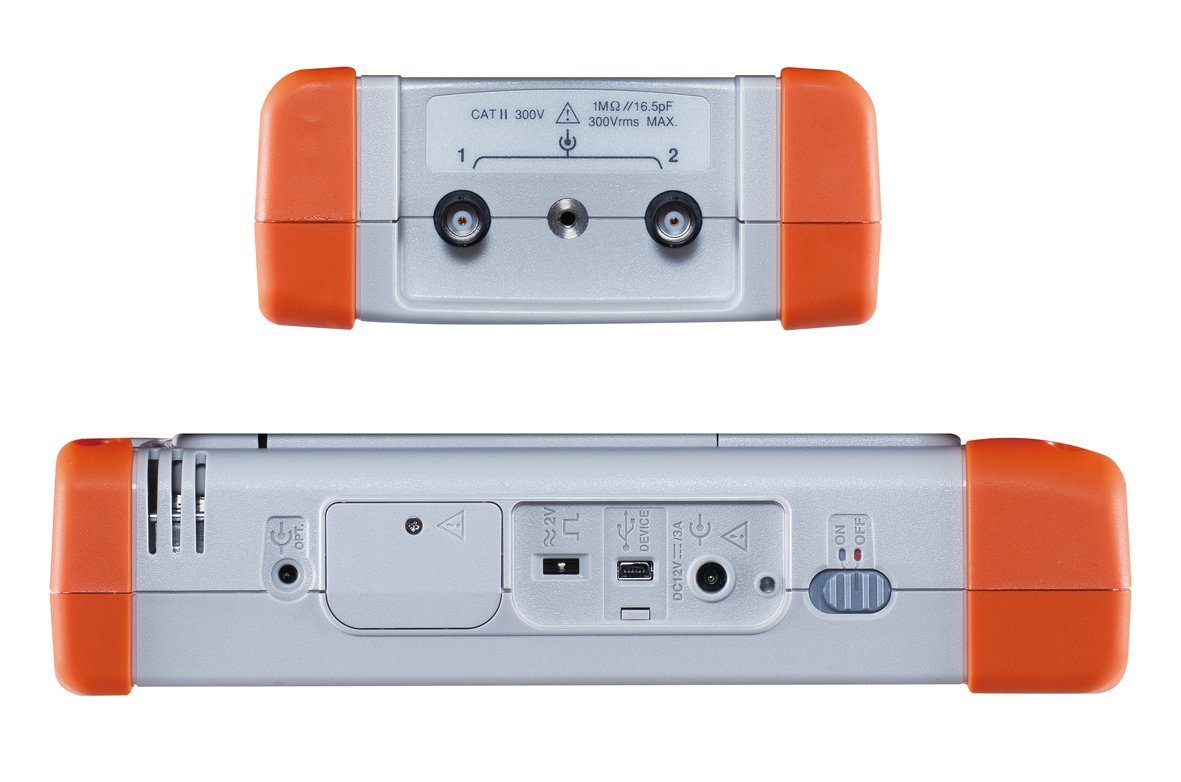

Osciloscop portabil cu ecran tactil INSTEK GDS-200

Cod: GOODWILL INSTEK GDS-207 GDS-210 GDS-220 GDS-200




Brosura produs PDF, 3.29 Mb


Descriere

Modele:


GDS-220  200MHz, 2-Channel, Full Touch Panel, Digital Oscilloscope

GDS-210  100MHz, 2-Channel, Full Touch Panel, Digital Oscilloscope

GDS-207  70MHz, 2-Channel, Full Touch Panel, Digital Oscilloscope





  • 200/100/70MHz Bandwidth Selections, Two Input Channels
  • 1GSa/s Maximum Sample Rate
  • Maximum 1M Memory Depth Per Channel
  • 7"� 800 x 480 Full Touch Panel Capacitive LCD Multi-Point Control, Landscape and Portrait Display
  • Built-In 5000 Counts DMM
  • 30,000 Consecutive Waveform Records Logging Function, Replay Measurement Results Any Time
  • Built-In Engineering Calculator, SMD Resistance Coding, Color Coding Info, and Attenuator Calculation Application Software
  • Optional Differential Probe to Achieve Isolation Effect


Accesorii standard

Accessories

GTP-100A-4   100MHz Probe. Suitable for GDS-307/207, GDS-310/210

GTP-200A-4   200MHz Probe. Suitable for GDS-320/220

GTL-207      Multimeter Test Lead x 2

GSC-010       Soft Carrying Case

GSC-011       Soft Carrying Bag

GAP-001       AC-DC Adaptor

GWS-001      Wrist Strap

Optional Accessories

GDP-040D     40MHz Dual-Channel Differential Probe, Suitable for GDS-300/200

GTL-253      Type A "" Mini USB Cable

GCL-001      Vertical Calibration Cable

Free Download Software

OpenWave 200 Software
