Analizor de spectru RF 9kHz..3GHz Gw Instek GSP-830

Cod: Gw Instek GSP-830




Brosura produs PDF, 1.25 Mb

Descriere

  • Low Noise Floor(-117dBm@1GHz, 3k RBW)
  • Sequence Programming Functions
  • ACPR, OCBW, Channel Power, N-dB and Phase Jitter Measurements
  • 10 Markers with Delta Marker, Peak Functions
  • AC/DC/Battery(Option)three modes of power supply
  • USB/RS-232C/GPIB(Option) Interface
  • 6.4" TFT Color LCD, Resolution: 640x480
  • Optional Tracking Generator
  • Optional Preamplifier

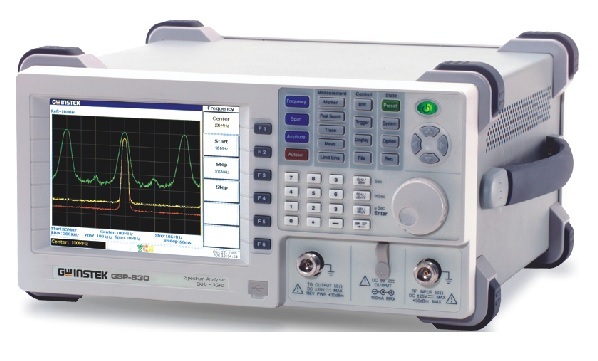

3GHz Spectrum Analyzer

Featuring high performance, uncompromised design, and remote monitoring software, the GSP-830 3GHz Spectrum Analyzer is the latest evolution from GWInstek. The GSP-830 is one of the most advanced Spectrum Analyzer GWInstek has produced to date. The GSP-830 has an exceptional noise floor of -152dBm/Hz; combined with the optional GAP-802 preamplifier, the noise floor can reach a remarkable -172dBm/Hz. With a low noise floor, the GSP-830 is more than capable of finding limits; Trace Detection, combined with an easy-to-use interface, makes the GSP-830 an ideal solution for spectrum analysis. Using the Auto Sequence mode, advanced users can define their own macros in 10 Sequence sets. Repeat or Single run mode can be used to streamline repetitive tasks. PC connection is effortless and versatile supporting USB host/device, RS232C, VGA and GPIB (optional) for remote monitoring, control and analysis.



Accesorii standard

User Manual x 1
Power Cord x 1
USB Cable (Type A plug to Type mini-B plug) x1



Optiuni recomandate

GSP-830 3GHz Spectrum Analyzer

Opt. 01

Tracking Generator

Tracking Generator

- Frequency Range: 9k~3GHz

- Amplitude Range: -50dBm~0dBm

- Amplitude Accuracy: ±1dB@100MHz, 0dBm

- Amplitude Flatness: ±1dB@0dBm

- Harmonics: <-30dBc typical

- Reverse Power: +30dBm

- Impedance: Type: N female, 50O nominal

- RF output VSWR: < 2:1

Opt. 02

Battery pack

*  11.1V Li-Ion battery pack *2

Opt. 03

± 1ppm Stability

*   ±1ppm, 0~50 °C , ±1ppm/yr

Opt. 04

300Hz RBW

*   RBW 300Hz, 3dB bandwidth, RBW Accuracy: 20%

Opt. 05

EMI Filter 9kHz & 120kHz RBW(*)

*   RBW selections: 9kHz & 120kHz, 6dB bandwidth, Accuracy: 15%

Opt. 06

10kHz & 100kHz RBW (*)

*   RBW selections: 10kHz & 100kHz, 3dB bandwidth,  Accuracy: 15%

Opt. 07

Demodulator (*)

* Demodulation: AM/ FM

* Output: Internal speaker, 3.5mm stereo jack wired for mono operation

*   RBW selection: 10kHz & 100kHz, 3dB bandwidth, Accuracy: 15%

Opt. 08

GPIB Interface

*   IEEE 488 bus

Note:

1. (*) Only one option can be selection between Opt. 05, 06, 07

2. All options are factory-installed except opt.02.

OPTIONAL ACCESSORIES

ATA-001

BNC Antenna

(An additional ADP-001 is needed for fitting GSP spectrum analyzers)

ATA-002

Near Field Probe

(An additional ADP-001 & GTL-110 is needed for fitting GSP spectrum analyzers)

GAP-801

Preamplifier Preamplifier with 10dB(typical), gain 9kHz ~ 6GHz

GAP-802

Preamplifier Preamplifier with 20dB(typical), gain 9kHz ~ 3GHz

RLB-001

Return Loss Bridge RLB Frequency Range 10MHz ~ 1GHz

GTP-3000

Passive touch Probe Set

PR-03: Passive touch probe, SMA(F)

ADP-002: Adaptor, SMA(J/F) ~ N(P/M)

GTL-303: RF Cable Assembly, SMA(P/M), 600mm

GKT-001

General Kit set

ADP-002: adaptor, SMA(J/F) ~ N(P/M) x 2

ATN-100: 10dB attenuator, N(J/F) ~ N(P/M) x 1

GTL-303: RF cable assembly(SMA(P/M),RD316,600mm)x2

GSC-002: Kit box x 1

GKT-002

CATV Kit set

ADP-001: adaptor, BNC(J/F) ~ N(P/M) x 2

ADP-101: adaptor, BNC(J/F)75O ~ BNC(P/M)50Ox 2

GTL-304: RF cable assembly(RG223,N(P/M)-N(J/F),300mm)x2

GSC-003: Kit box x 1

GKT-003

RLB Kit set

GAK-001: termination 50 , N(P/M) x 1

GAK-002: Cap with chain, N(P/M) x 1

GTL-302: RF cable assembly(RG223,N(P/M),300mm)x2

GSC-004: Kit box x 1

GKT-006

EMI Probe Kit set

ANT-01: 6cm Loop, H-Field Probe x 1

ANT-02: 3cm Loop, H-Field Probe x 1

ANT-03 6mm Stub tip, E- Field Probe x 1

PR-03: Touch Passive Probe x 1 ADP-02: N(P/M)~SMA(J/F) Adapter x 1

ADP-01: N(P/M)~BNC(J/F) Adapter x 1

Test Lead: BNC(P/M)~BNC(P/M) RF Cable x 1

Test Lead: SMA(P/M)~SMA(P/M) RF Cable x 1

GRA-404

Rack Adapter Panel

Rack Mounting (19", 4U)

GSC-001

Soft Carrying Case

GTL-301

RF Cable RG 223 N(P/M), 1000mm

GTL-401

DC Power Cord

DC power cord with DC Jack and lighter plug, Current 5A
