Brand: FLUKE BIOMEDICAL

Tester multifunctional debit, volum, vid, presiune, concentratie oxigen Fluke Biomedical VT MOBILE

Cod: Fluke Biomedical VT MOBILE




Brosura produs PDF, 0.3 Mb


Descriere

VT MOBILE is a compact and portable general-purpose gas-flow analyzer designed to meet the needs of the traveling technician or engineer. This versatile tool evaluates performance of a wide variety of medical gas-flow/pressure devices and measures 16 ventilator parameters.



The easy-to-use front panel has onboard graphing ability, allowing technicians to view waveforms right on the tool's screen. Test results can be stored in the unit and uploaded to a computer later for viewing or printing using VT for Windows. The VT for Windows PC software provides, among other features, simultaneous display of all 16 ventilator parameters to speed performance testing and other evaluations. EC.6.20 now requires completion of 100% of life-support device preventive maintenance every year. VT MOBILE can help you meet those requirements.





  • Bidirectional flow (high- and low-flow ranges), volume, vacuum, pressure, and oxygen-concentration measurements
  • 16 ventilator parameter measurements
  • Trending and statistical analysis of all measured values
  • Onboard graphical display
  • Portable and compact
  • RS232 for computer control
  • Memory for storing results
  • VT for Windows PC software
  • Optional sensor assembly for temperature and humidity measurements


Accesorii standard

  • Accessory kit (VTMOB-7002)
  • CD, includes: quick-reference card, operator’s manual, getting-started manual, other matter (VTPLUS-WIN)
  • Getting-started manual, hard copy and pdf file on CD (MANUAL)
  • Quick-reference card, hard copy and pdf file on CD (QUICK REF CARD)
  • High-flow sensor (VTMOB/HIGH SENSOR)
  • Low-flow sensor (VTMOB/LOW SENSOR)
  • High-pressure adapter, male to female (VTMOB/ADPT FEMALE)
  • Low-pressure adapter (VTMOB-4402)
  • Oxygen-sensor cable, 6 ft (FITTING)
  • T adapter for oxygen sensor (VTMOB-4401)
  • Oxygen sensor (97132)
  • 9 V dc battery, alkaline (BATTERY)
  • Serial communications cable, RS-232, 6 inch (CABLE ASSEMBLY)
  • VT for Windows PC Software (CD ROM)
  • Soft Carrying Case (VTMOB/SOFTCASE)


Optiuni recomandate

Adapters

  • VTMOB High-pressure adapter, male to male
  • VTMOB-PWR ADAPTER Power adapter, universal for USA and International



 Cables

  • VTMOB-4405 Temperature and RH sensor, cable and T adapter, 6 inch


Alte produse FLUKE

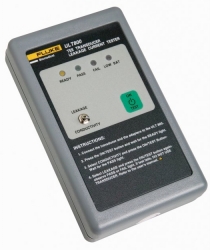

TESTER ULTRASUNETE SECURITATE ELECTRICA FLUKE BIOMEDICAL ULT800

• Handheld
• Stand-alone operation
• Direct measurement of leakage current
• Battery-operated
• Independent of 120 V or 240 V systems
• Built-in self-test circuit
• Auto shut-off to conserve battery



TESTER CAMERE IONIZARE RADIATII BETA, GAMMA, RAZE X FLUKE BIOMEDICAL 451B

• High sensitivity measurement of rate and dose simultaneously, with the capability to record peak rate
• Auto-ranging and auto-zeroing
• RS-232 communications interface with optional Windows-based Excel add-in for data logging
• Ergonomic, anti-fatique handle with replaceable grip, wrist strap and tripod mount
• Programmable flashing LCD display and audible alarm



TESTER DIGITAL SECURITATE ELECTRICA ECHIPAMENTE MEDICALE FLUKE BIOMEDICAL LT544

• Small, lightweight, self-contained portable instrument
• Universal Power Supply. Input voltage from 85 - 265 VAC
• Chassis Resistance measurements are made with a four-wire Kelvin bridge to eliminate errors due to cable length
• Test method complies with AAMI load per ANSI/AAMI ES1-1993


SCOPMETRU MEDICAL DIGITAL PORTABIL 200 MHZ FLUKE BIOMEDICAL 199XRAY

• Dual input - 200, 100 or 60 MHz bandwidth
• Up to 2.5 GS/s real-time sampling per input
• Connect-and-View™ automatic triggering and a full range of manual trigger modes
• Digital Persistence for analyzing complex dynamic waveforms, similar to an analog scope
• Fast-display update rate for seeing dynamic behavior instantaneously
• Automatic capture and replay of 100 screens
• 27,500 points-per-input record length using ScopeRecord mode



TESTER MULTIFUNCTIONAL DEBIT, VOLUM, VID, PRESIUNE, CONCENTRATIE OXIGEN FLUKE BIOMEDICAL VT MOBILE

• Bidirectional flow (high- and low-flow ranges), volume, vacuum, pressure, and oxygen-concentration measurements
• 16 ventilator parameter measurements
• Trending and statistical analysis of all measured values
• Onboard graphical display
• Portable and compact
• RS232 for computer control
• Memory for storing results
• VT for Windows PC software



ANALIZOR DE PARAMETRI INCUBATOARE TEMPERATURA, UMIDITATE, SUNET, DEBIT AER FLUKE BIOMEDICAL INCU

• Portability (sitting in place of infant within incubator)
• Single-instrument measurement and documentation for key infant-incubator parameters
• Measurement for most parameters according to IEC and AAMI standards
• Time-saving in testing critical infant incubators
• Windows® software for evaluation and documentation
• Numerical and graphical reports



SIMULATOR PLAMAN PORTABIL DE PRECIZIE FLUKE BIOMEDICAL ACCU LUNG

• Small, lightweight and portable
• User-selectable compliance and resistance settings
• Calibrated accuracy for both resistance and compliance
• Complies with IEC standard for breathing- circuit connection
• Certified test lung for test system traceability to standards



ANALIZOR CONCENTRATIE OXIGEN O2 FLUKE BIOMEDICAL MAXO2 PLUS AE

• One-touch calibration, with reminder
• Long battery life (approx. 5,000 hrs)
• Impact resistant and drip proof
• External MAX-250E Oxygen Sensor



TESTER MONITORIZARE NEUTRONI FLUKE BIOMEDICAL 190N

• Auto-scaling measurement of rate and dose (integrate mode includes dose and time accumulation)
• True Rem readings recorded across a wider (lower and higher) rate range
• Ergonomic, portable design: adjustable shoulder strap and rugged handle with padded grip
• Flexible detector assembly, 190 can be removed for remote readings
• Available in SI units


ANALIZOR SECURITATE ELECTRICA FLUKE BIOMEDICAL DALE 601E

• Small, lightweight, self-contained portable instrument
• Master range meter delivers accurate measurment for each test
• Accurate test measurements with 4-wire Kelvin bridge
• Test method complies with AAMI load per ANSI/AAMI ES1-1993 or IEC601-1
• Leakage Current can be measured in Open/Closed Neutral, Normal/Reversed Polarity and Open/Closed Ground
• All Leakage Current measurements are displayed directly in µAmps
• Broad range of external measurements
• Five (5) Universal EKG Lead Connectors
• The DALE601E is designed for 230 V operation
