Extech EX650 Cleste curent 600A True RMS AC cu Detector fara contact

Cod: Extech EX650




Brosura produs PDF, 0.53 Mb

Descriere

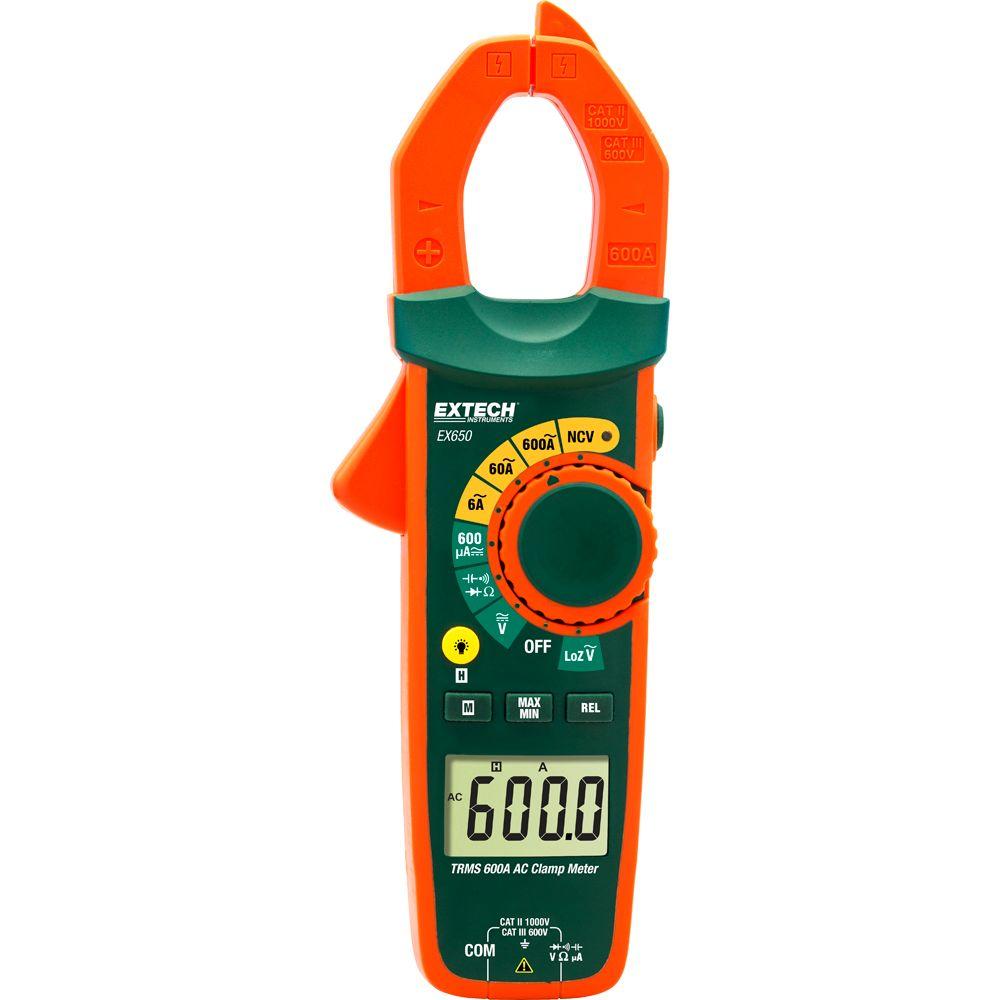

AC Clamp Meter with Non-Contact Voltage Detector and Low Impedance

The EX650 is a 600A True RMS AC Clamp meter. This clamp meter also measures AC/DC voltage, resistence, capacitance, continuity/diode test and has an NCV detector. The EX650 has a 1.18" jaw size which accomodates conductors up to 350 MCM. This meter also features a 6000 count backlit LCD display, data hold, min/max, relative function, auto power off and a convenient LED worklight. Complete with test leads and 3 AAA batteries.



·         True RMS for accurate AC measurements

·         1.18" (30mm) jaw size accomodates conductors up to 350MCM

·         6000 count backlit LCD display

·         Low Impedance (LoZ) prevents false reading caused by ghost voltages

·         Built-in non-contact voltage detector (NCV) with LED indicator

·         Built-in LED flashlight for working in dimly-lit areas

·         Functions include: NCV, AC/DC Voltage, AC Current, AC/DC micro Current, Resistance, Capacitance, Diode Test, Continuity

·         Data Hold, Min/Max, Relative function, Auto Power Off

·         Complete with test leads and 3 AAA batteries
