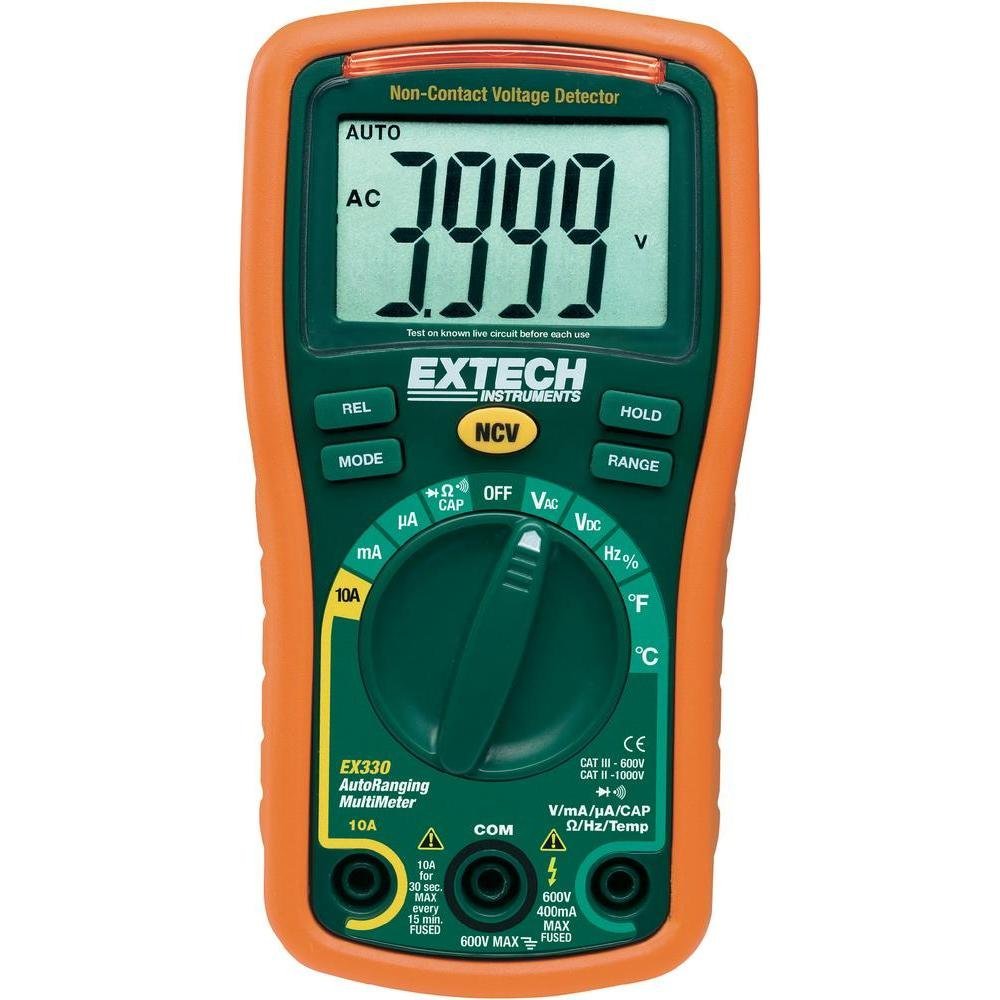

Extech EX330 Mini-multimetru cu 12 functii + NCV

Cod: Extech EX330




Brosura produs PDF, 0.28 Mb

Descriere

Autoranging DMM with NCV detector and Temperature function

The EX330 is a compact autoranging multimeter which features extra large 4000 count display and a built-in non-contact AC voltage detector. Advanced function include Frequency, Duty Cycle, Capacitance and Temperature, Diode test and continuity. Rubber holster protects meter. UL listed Cat III - 600V. Includes test leads, Type K temperature probe, two AA batteries and tilt stand.



Features:

  • Autoranging DMM with 12 functions and 0.5% basic accuracy
  • AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
  • Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
  • Large-digit 4,000 count LCD display
  • 10A max Current
  • Data Hold, Relative and Auto power off
  • Type K temperature measurements
  • Complete with test leads, tilt stand, protective holster, general purpose Type K bead wire probe and 2 AAA batteries
