Extech 38387 Cleste ampermetric 600A AC cu Multimetru

Cod: Extech 38387




Brosura produs PDF, 0.27 Mb

Descriere

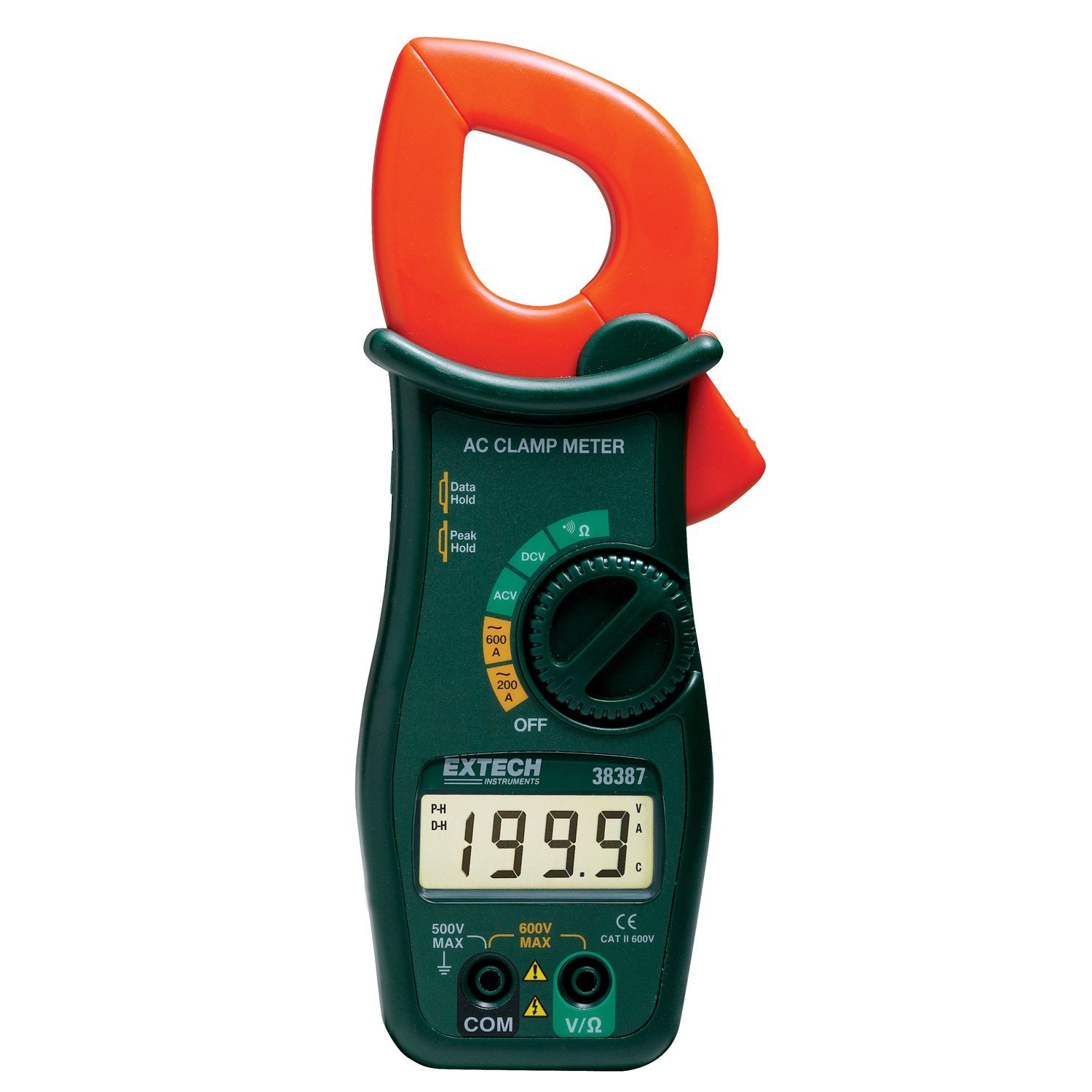

Clamp meter includes AC/DC Voltage and Resistance measurements

The 38387 is a 600A AC Clamp Meter which has a 1.25-Inch circular jaw for large cables up to 350MCM. In addition to AC Current, it can measure AC/DC Voltage, Resistance, and has a continuity beeper. Meter features include Data Hold and Auto power Off. Product comes complete with test leads, 9V battery and a belt holster.



ˇ         Measure AC Current, AC/DC Voltage and Resistance

ˇ         1.25" (33mm) circular jaw opening for large cables (350MCM)

ˇ         Large 2000 count LCD display

ˇ         Data Hold freezes data in display

ˇ         Peak Hold captures in-rush currents

ˇ         Audible Continuity beeper
