Extech 380562 Mili-ohmmetru inalta rezolutie

Cod: Extech 380562




Brosura produs PDF, 0.17 Mb

Descriere

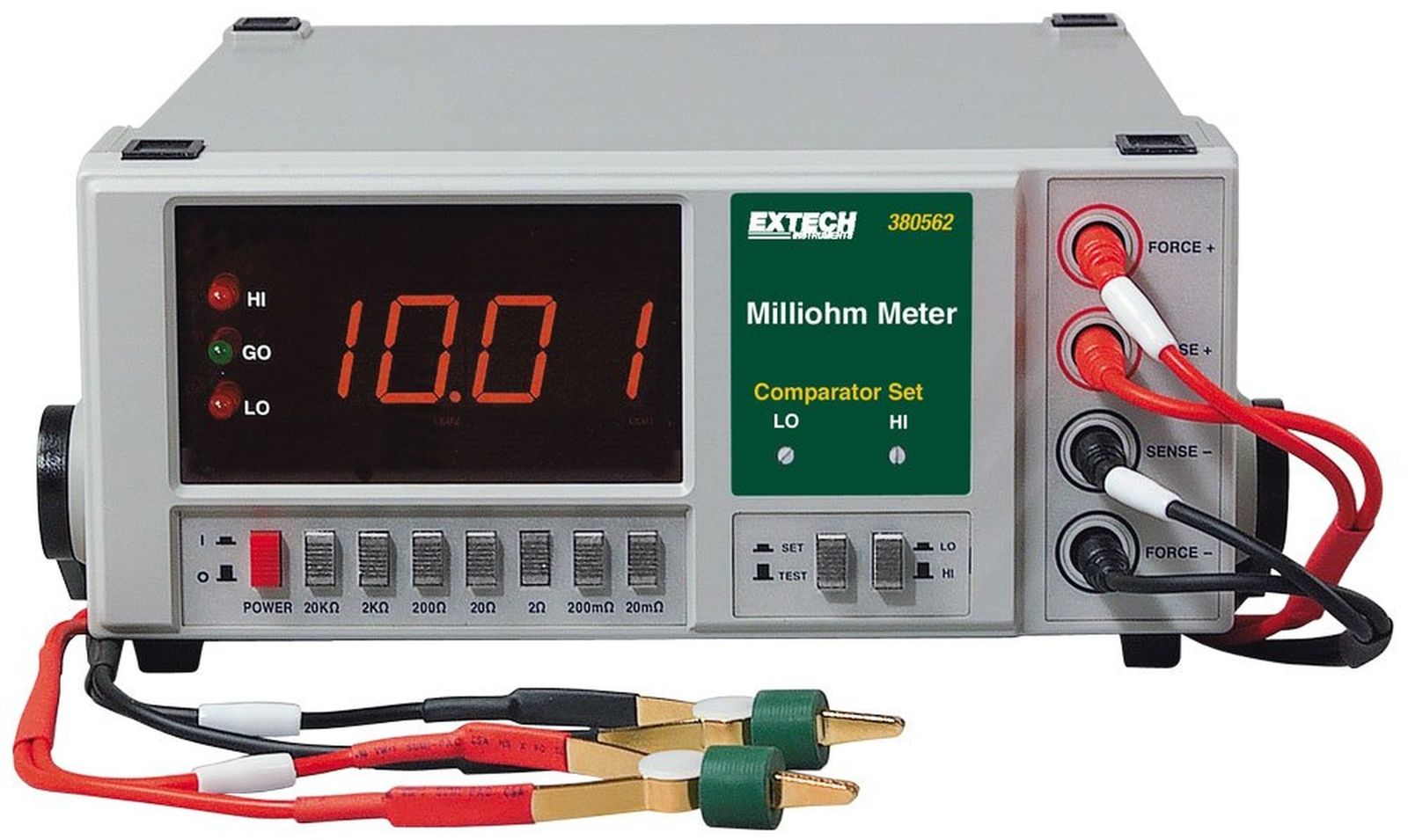

Benchtop meter provides resolution down to 0.01mO

Compact and precise, the Extech 380562 Milliohm Meter has 7 ranges and measures down to 0.01mO using 4-wire Kelvin clip test leads. Measurements are displayed on the unit's large 0.8", 1999-count LCD. Built-in comparator for Hi/Lo/Go resistance testing or selection. Complete with 4-wire cables with Kelvin clip connectors and power cord.



Features:

  • 7 ranges for wide low resistance measurements
  • High resolution to 0.01mOhm
  • 1999 count display with 0.8" digits
  • 4-wire test cable with Kelvin clip connectors
  • Automatic zero
  • Built-in comparator for Hi/Lo/Go resistance testing or selection
