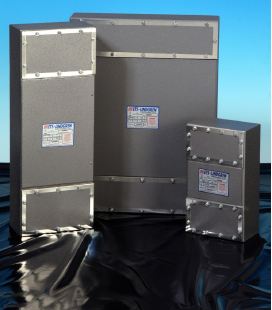

Filtre putere Tempest/ EMI/ EMC de mare performanta curenti 16..200A ETS-Lindgren N500X

Cod: ETS-Lindgren N500X




Brosura produs PDF, 1.12 Mb

Descriere

  • Low power dissipation
  • Compact Rugged Construction
  • 100dB insertion loss from 40kHz
  • Suitable for 400Hz supplies
  • Current Range 16 to 200 Amperes



APPLICATIONS

  • In high performance screened rooms and anechoic chambers the N500X series provides protection of both incoming and outgoing supplies in line with the shield performance.
  • In TEMPEST applications, the N500X filters provide an extremely high degree of protection required to obtain maximum security.
  • N500X filters are ideal for EMC applications such as computer suites.
  • N500X filters can be used for general purpose high performance filtering.


 Electrical Specifications


PART #

Current Max (Amps)

Voltage Max (Volts)

Frequency (Hz)

Number of Lines

Volt Drop on Full Load in a 250V 50/60Hz System per Line (Max)

Full Load Dissipation

5000

16

250

DC/50/60/400

2

1.3

20

5001

16

440/250

DC/50/60/400

4

0.65

20

5002

32

250

DC/50/60/400

2

0.3

20

5003

32

440/250

DC/50/60/400

4

0.15

20

5004

63

250

DC/50/60/400

2

0.4

48

5005

63

440/250

DC/50/60/400

4

0.2

48

5006

100

250

DC/50/60/400

2

0.3

60

5007

100

440/250

DC/50/60/400

4

0.15

60

5008

200

250

DC/50/60/400

2

0.2

80

5009

200

440/250

DC/50/60/400

4

0.1

80
