Sistem monitorizare camp electromagnetic de banda larga 10 kHz..40 GHz ETS-Lindgren HI-6100 E-Field Monitor

Cod: ETS-Lindgren HI-6100 E-Field Monitor



Brosura produs PDF, 1.04 Mb


Descriere

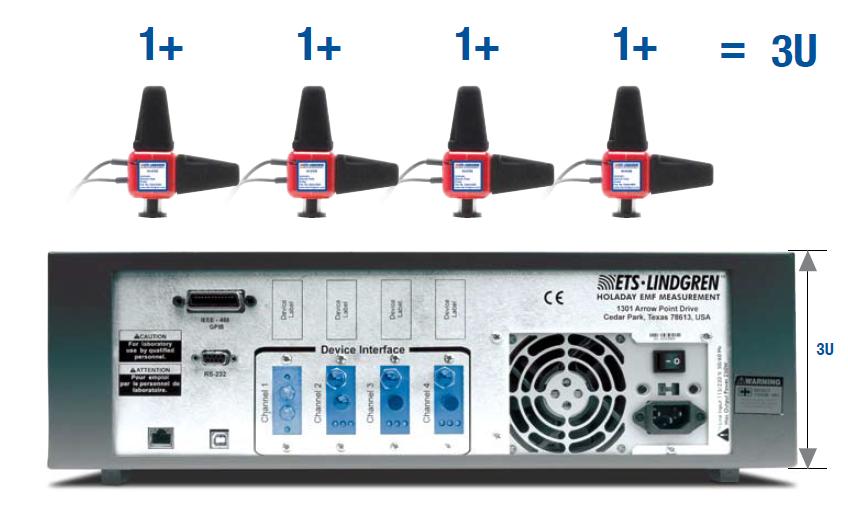

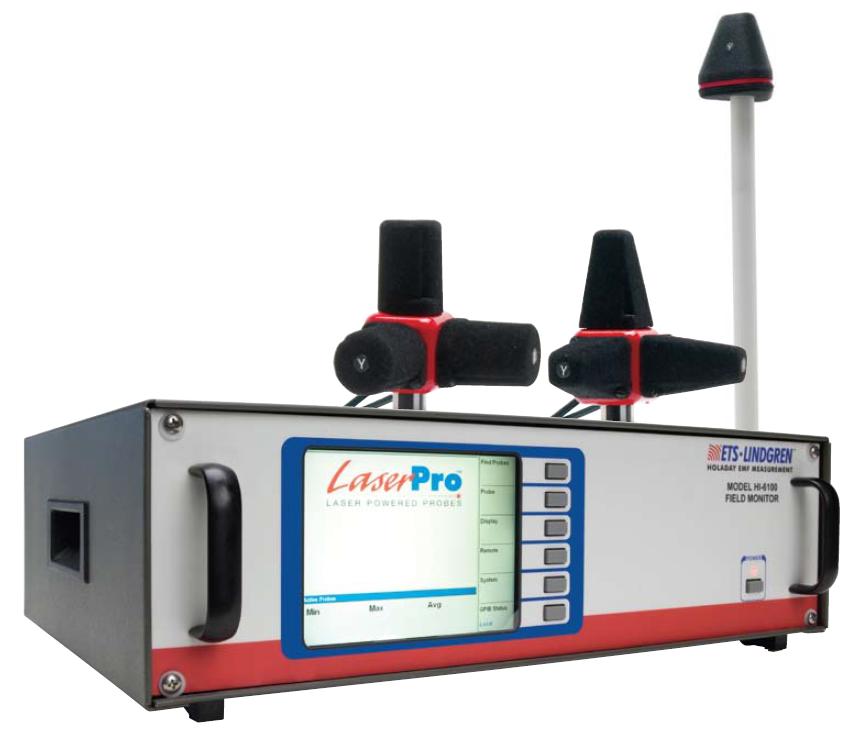

HI-6100 Field Monitor

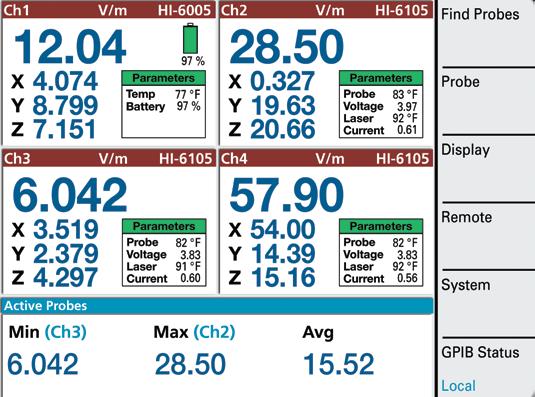

Display: 13.5 cm x 10 cm Color LCD

Probe Input(s): Four (4) HI-6xxx &/or HI-44xx &/or FPxxxx (any mix)

Each probe requires optional Data Module installed in Field Monitor chassis

Data I/O : IEEE-488, RS-232, USB

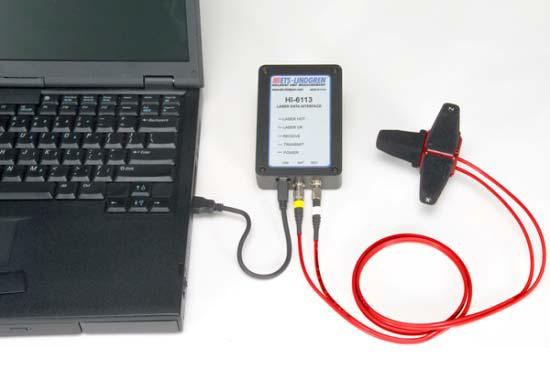

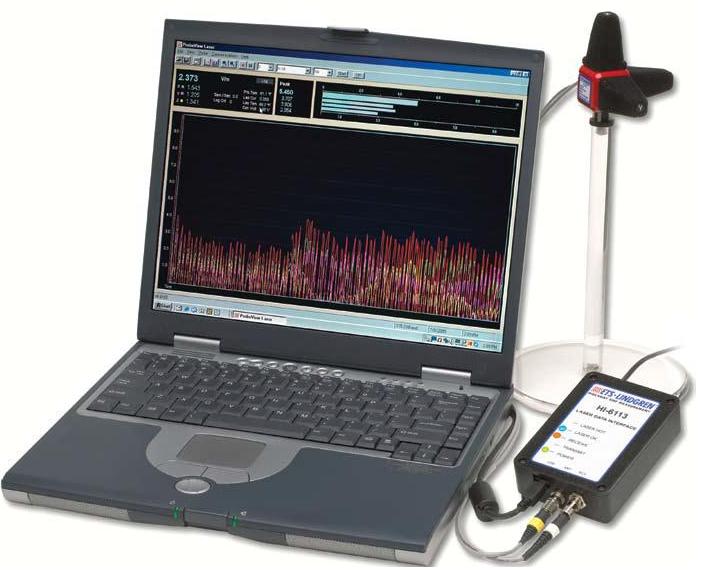

HI-6113 USB Interface Module

Display:  User supplied PC w/ ProbeView™ software

Probe Input(s): One (1) HI-6122, HI-6105 or HI-6153

Data I/O : USB



HI-4413P RS232 Interface Module

Display:  User supplied PC w/ ProbeView™ software

Probe Input(s): One (1) HI-60xx &/or HI-44xx &/or FPxxxx

Data I/O : RS232





Probes



HI-6022 Battery-powered Electric (E) field 10 kHz - 1 GHz

HI-6122 Laser-powered Electric (E) field 10 kHz - 1 GHz



HI-6005 Battery-powered Electric (E) field 100 kHz - 6 GHz

HI-6105 Laser-powered Electric (E) field 100 kHz - 6 GHz

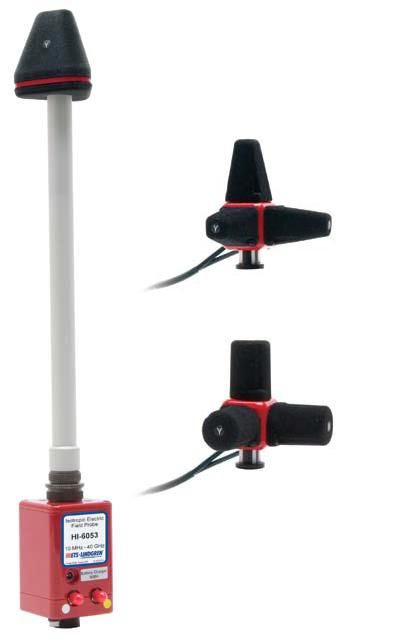

HI-6053 Battery-powered Electric (E) field 10 MHz - 40 GHz

HI-6153 Laser-powered Electric (E) field 10 MHz - 40 GHz
