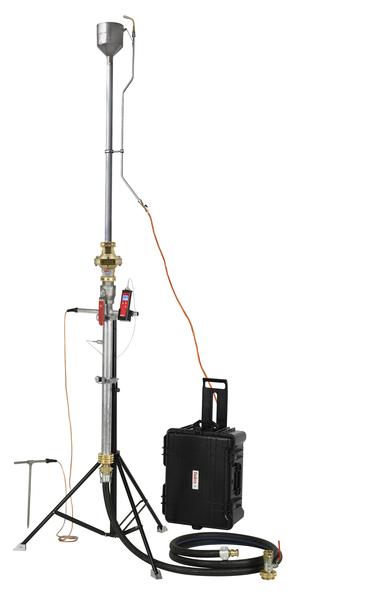

The gas testing standpipe is a proven tool in the gas supply field that is used to test pressure, as well as for the filling and commissioning of gas lines.

The recommendation of the German Technical and Scientific Association for Gas and Water (DVGW) is to fill the lines with a speed between 3 and 7 m/s in the pipe applies for the purging of the line. We now offer a practice-oriented solution for this task. A measuring tube equipped with an inner Pitot tube is used and connected with the GOLIATH gas measurement device for the evaluation.

The GOLIATH Option v is equipped with a differential pressure sensor with which the static and dynamic pressure in the Pitot tube is determined. The user, prompted by the menu, enters the diameter of the main pipe and its length. The speed in the main pipe, the estimated time required for the purging and the elapsed filling time, as well as the gas concentration then appear in the GOLIATH display.

EVERYTHING FROM ONE SOURCE!
Our solution thus meets all requirements in keeping with the DVGW rules.

Features:

Practical system with wide application
Easy adaptation to many thread sizes, drilling saddles and fittings -directly or via electrically conductive tube
Rapid extraction of gas by using the Venturi nozzle
Flame arrestor for burning off the gas safely

Alte produse ESDERS

ESDERS GOLIATH BIOGAS ANALIZOR DE BIOGAZ

• Use of infrared sensors for CH4 and CO2 guarantee fast run-in period and extremely short response times and exclude cross-sensitivities to other gases.
• An oxygen and a hydrogen sulphide sensor are offered as an option.
• The measurement range for H2S is 0 to 2,000 ppm and cover the requirement for measurements at biogas plants ideal.

ESDERS HUNTER DETECTOR SI ANALIZOR SCAPARI DE GAZE

• Cast carpet mat free from the material wear common in deep drawn mats
• Stabilising mould elements enable optimal fit on the ground and enable the carpet to be pulled backwards
• Comprehensive flow channels for sampling

ESDERS GOLIATH ANALIZOR DE GAZE

• Time-tested Esders operation concept.
• Very quick initial break-in phase after being switching on or changing application.
• Extremely short reaction times when measuring CH4 and CO2 in all concentrations.
• Oxygen and up to 3 toxic gas sensors are available as an option.
• Ethane analysis with automatic measurement result assessment can be integrated.
• Optional pressure measuring up to 2,000 hPa.

ESDERS LECKOMIO EX DETECTOR SCURGERE GAZ

• Extremely rugged hand-held measurement device as an individual or combination instrument in aluminium casing with very-well protected LCD display
• Easy operation through menu technology and function keys guarantees problem-free use.
• Document tests by printing them on the thermal-printer through the IR interface
• Practice-orientated accessories for all applications

ESDERS GAS STANDPIPE - SISTEM TESTARE TEAVA DE EVACUARE GAZE

• Practical system with wide application
• Easy adaptation to many thread sizes, drilling saddles and fittings -directly or via electrically conductive tube
• Rapid extraction of gas by using the Venturi nozzle
• Flame arrestor for burning off the gas safely

ESDERS SAFE ETHANTEST TESTER GAZ ETAN

• Taking the service box to the measurement site
• Activate device and connect sensor
• Feed sensor into sensor hole and start analysis at the touch of a button
• SAFE absorbs a gas sample and displays its concentration in vol.%
• The gas sample passes through the chromatographic column and the display of methane and ethane (if applicable) takes place

ESDERS VAKUMOBIL

• The Esders Vakumobil has a markedly improved suction power compared to conventional technology.
• The low pressure in the surface generated by one suction probe has an impact over several metres.
• This creates only a movement or distortion of the gas accumulation but not there elimination.

ESDERS LECKOMIO DETECTOR PORTABIL DE SCAPARI SCURGERI GAZ METAN

• Rugged hand-held instruments with ergonomic aluminum housing
• Wide range of applications in the gas and water installation
• Load- and tightness tests according to TRGI
• Powerful gas detector with vibration alarm and digital display reading for gas leak detection

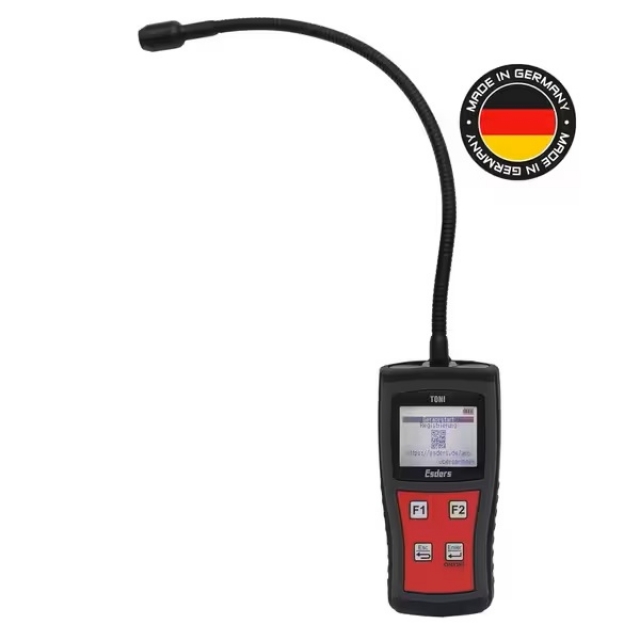

ESDERS TONI GASTEST CH4 DETECTOR SCURGERI GAZ METAN
