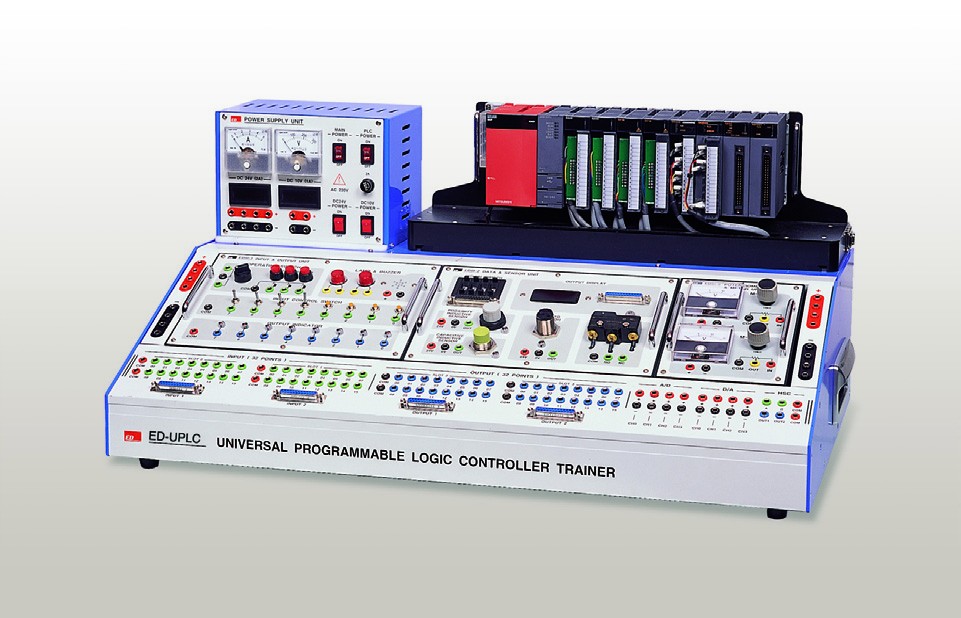

Universal PLC Trainer ED-UPLC

Cod: ED-UPLC




Brosura produs PDF, 0.85 Mb

Descriere

EXPERIMENTS



PLC UNIT

  • CPU Module
    • Computing Speed : 0.10µs
    • Program Capacity : 28k step
    • I/O Points : 1024 points
    • I/O Device Points : 2048 points
  • Digital Input
    • Input Points : 16points x 2
    • Input Voltage : DC24V
  • Digital Output
    • Output Points 16points x 2
    • Relay output
  • Input Voltage : AC220V
  • Base Module : 8 slots



MAIN FRAME

  • Structure
    • 625(W) x 340(H) x 430(D)mm
    • Desktop type
  • Power
    • Voltage: DC24,10V
    • Current: 2A
  • Input Terminal : 32 points(8-point COM)
  • Input Voltage : AC220V 50/60Hz
  • Output Terminal : 32 Points(8-point COM)
  • Mounting Capacity : 2.5ea(Basic)
  • Modules
    • Basic : 2.5ea
    • ED-4260 Option : 17ea
  • Docking System
    • Slide type
    • I/O: 96P
    • Analog:48P



ACCESSORIES

  • Patch Cord(ø4) : 1set
  • Circuit Connection Cable : 1set
  • Pneumatic Hose(ø6, ø4) : 1set
  • AC Power Cord : 1ea
  • Dust Cover : 1ea
  • RS-232 Cable : 1ea
  • Program CD : 1ea
  • User Manual : 1ea



Features:

  • Docking System architecture separating the main body from PLC modules
  • Various types of Programmable Logic Controller experiments
  • Modular structure for convenient storage and mobility
  • Built-in multi connection device compatible with world’s famous PLC brands
