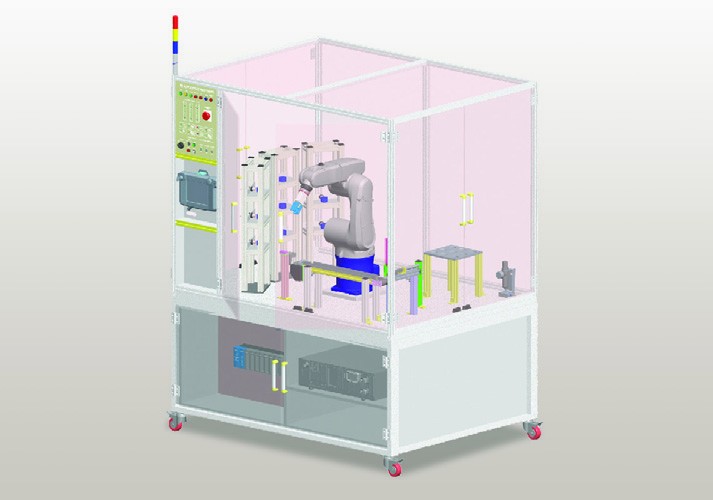

6-axis Multi Joint Robot Trainer ED-VP6

• Experiments on Servo Motor control techniques using Servo Driver
• Aluminum carrying case for convenient storage and mobility
• JOG operation, PLC control operation, PC control operation
• Various types of control elements easily to be mounted
• Capable of checking normal operating voltage / over current by voltmeter and ammeter



• Comprehension of basic production automation processes such as transfer, fabrication, classification, inspection and storage
• Convenient wiring and pipe arrangement with a label of each component such as sensors and actuators
• PLC training system function(various types of sequence actions through a change in PLC control program
• Counter/timer function and motor control by PLC or without PLC(electrical method)
• Aluminum profile worktable & control modules for easy mounting



• Fuel cell generation using photovoltaic
• Complete disassembly and assembly of the fuel cell
• Current and voltage measurement for PEM Fuel Cell Stack according to each of Cell
• Power production experiment using PEM Fuel cell



• Practice basic method how to operate such as basic peration, Constant voltage, Constant current, serial connection, and arallel connection
• Brightness control, Color control, and lighting
• Simulation for Steady/PWM



• Composed of essential devices for Programmable Logic Controller I/O commands
• LD (Ladder Diagram), IL (Instruction List), SFC (Sequential Function)
• Built-in Simulator to train on the encoder’s principle and functions
• Stepping motor and DC motor installed as standard (forward/reverse rotation, linear movement)
• Capable of network configuration by CPU and Remote I/C Link



• E/O and O/E conversion and characteristics
• Optical PCM communication(trasmission&reception)
• Optical Data communications using personal computer
• DC power supply, a roll of fiber cable and the microphone included as peripherals



• Experiments on various types of special control unit
• Characteristics of Servo Motor and setup of Servo Driver
• Essential components in automation using a PLC position module
• 4mm banana jack to increase wiring capability



• Graphical display of functonal block diagram on the system suface
• Real-time monitoring and control by PC Control Program
• LM Guide and Rotary Encoder for position control
• Displays moving distance and angle data using LCD



• ALLEN-BRADLEY SLC-500 PLC programming and execution
• Modularization of the devices essential for PLC I/O commands
• Experiments for basic command and various application program
• Binary data experiments with 4digits digital switch and display unit
• Customizable for various types of SLC-500 Series CPU upon request



• Inverting, Non-inverting and Differential Amplifiers
• Comparator Circuit
• Voltage and Current Circuit
