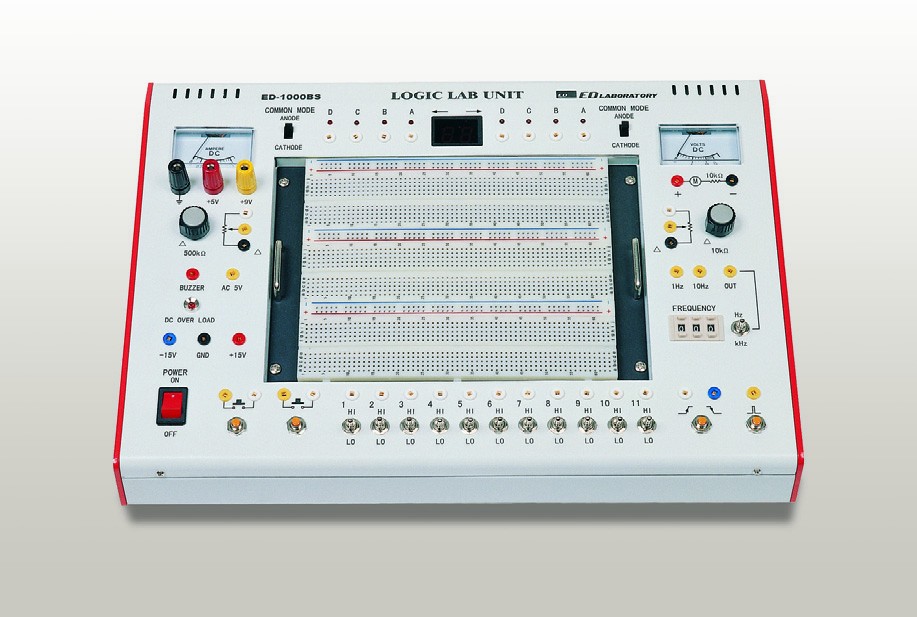

Logic Lab Unit ED-1000BS

Cod: ED-1000BS




Brosura produs PDF, 0.59 Mb

Descriere

SPECIFICATIONS

  • DC Output : 5V / 9V 0.5A ±15V 50mA
  • BCD Display
  • Input Voltage : AC 220V 50Hz/60Hz
  • Dimension : 350(W) x 85(H) x 355(D)mm
  • Weight : 4.3kg
  • Indication Polarity
    • Anode / Cathode selectable common mode
    • 1Hz~999Hz ,1kHz~999kHz(H : 4.5V, L : 0.2V approx.)
  • Clock Pulse Output : PLL 3 digits, Toggle, 1Hz, 10Hz
  • Logic Switch : 11 Toggle, 2 Push Switch
  • Control Switch : 1 Push Switch Floating Contact
  • Single Pulse Generator : 1 Push Switch
  • Buzzer : Low Power Driver(+3V~7V 1mA or Less)
  • Bread Board
    • Socket Strip(630 holes) : 3ea, Bus Strip : 4ea



ACCESSORIES

  • Jumper Wire(5-color) : 1set
  • AC Power Cord : 1ea
  • Instruction Manual : 1ea



OPTION

  • Bread Board(ED-1000BB)
