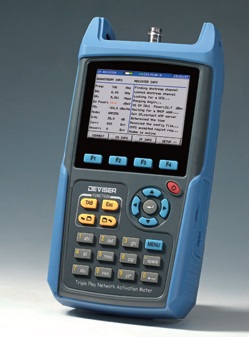

Tester TV cablu CATV analog si DVBC digital instalatii retele HFC Deviser DS6300C

Cod: Deviser DS6300C




Brosura produs PDF, 0.84 Mb


Descriere

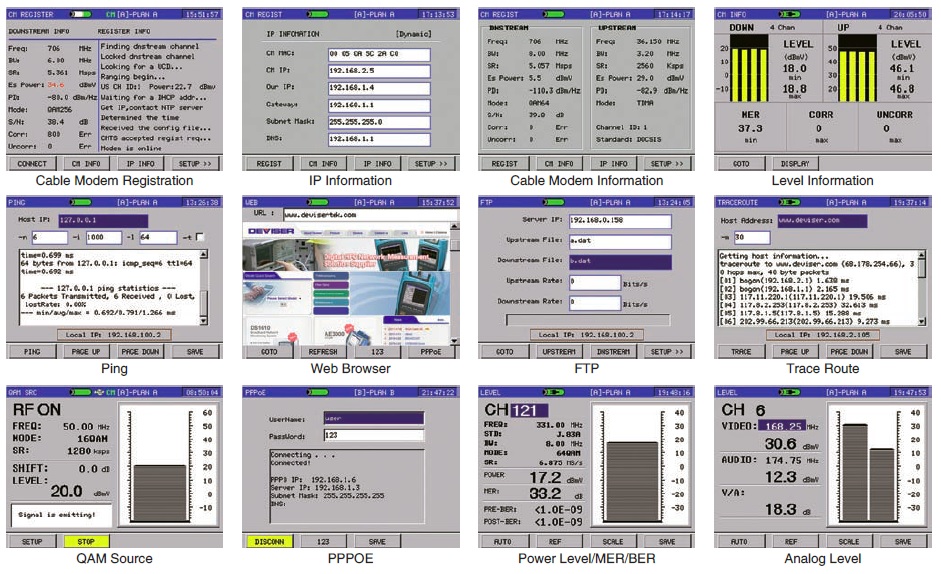

DS6300C is mainly applied for  the installation of data service of HFC Network, which is compatible with DOCSIS & Euro DOCSIS 1.1/2.0/3.0. Also it provides simple measurement of Analog TV, DVB-C and Spectrum.



  • 3.5 Inch TFT LCD
  • USB storage and upgrade
  • Toolbox - PC Management Software





Frequency

Range

5 MHz ~ 1000 MHz

Resolution

10 kHz

Accuracy

±10 × 10-6

DVB-C



Power Level

30 dBµV ~ 110 dBµV

Resolution

0.1 dB

Accuracy

±2.0 dB(C/N >20 dB)

MER

~38 dB

MER Accuracy

±2 dB

BER

1E-3 ~ 1E-9

Modulation Type

64/128/256 QAM ITU-T J.83 Annex A/B/C

Analog CATV



Level

20 dBµV ~ 120 dBµV

Resolution

0.1 dB

Accuracy

±2.0 dB (C/N >20 dB)

Functions

Level, C/N, V/A, Tilt, Limit Test, Channel Scan, HUM

Spectrum

Span

Max. 995 MHz

QAM Source



Range

5 MHz ~ 65 MHz

MER

>38 dB

Modulation Type

QPSK; QAM (8/16/32/64); CW

SR

160/320/640/1280/ 2560/5120 KSym/s

Level Output

68 ~ 120 dBµV

Others

Dimension

247 mm × 130 mm × 67mm

Weight

1160 g

Battery

7.4 V / 4.4 AH Rechargeable Lithium-Ion

Charge Time

3 ~ 4 Hours

Working Time

>5 Hours
