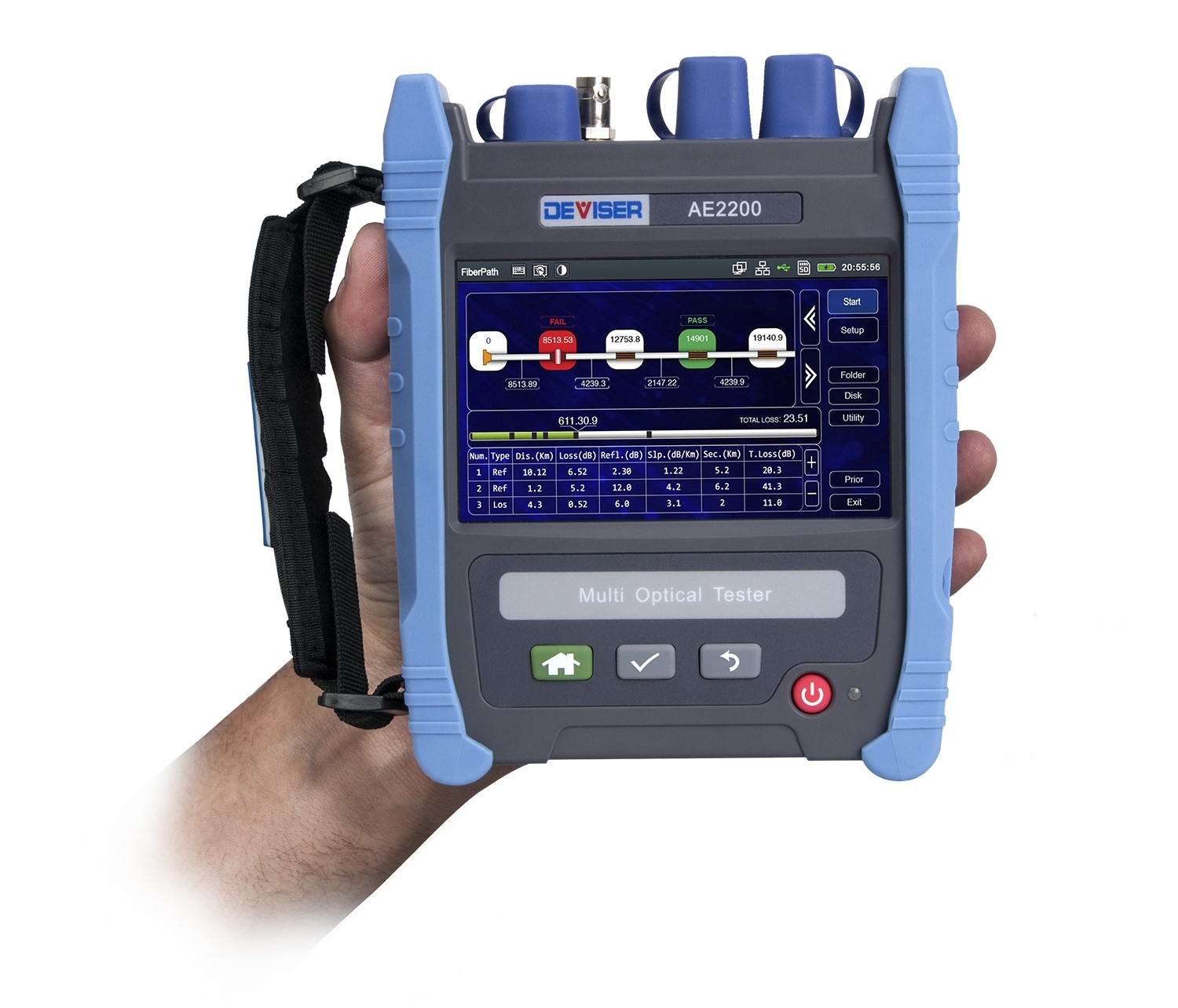

Deviser AE2200 FTTx Multi-Function Meter

Cod: Deviser AE2200




Brosura produs PDF, 1.44 Mb

Descriere

The award-winning AE2200 is the company½s newest ultra-portable, multi-function validation solution for FTTx, RFoG and RF PON installations. Engineered to address the requirements of communications service providers (CSP), the AE2200 is flexible meter that integrates cable TV analysis, metallic TDR testing and optical testing, including a fiberscope, optical time domain reflectrometer (OTDR), optical power meter, visual fault locator and light source. Users can easily verify optical links with the FiberPath fiberlink mapping tool, which reduce the need for OTDR trace interpretation. The AE2200 confirms proper optical levels and quickly executes pre-programmed cable TV auto tests that ensure repeatability.



Features:

  • Future-proof, all-in-one solution includes optical, cable TV (RF), and metallic testing for verifying the installation of FTTx, RFoG and RF PON networks
  • Lightweight and compact design for easy mobility throughout the network
  • Long battery life enables the user to test all day without stopping to charge the test equipment
  • Easy learning curve with simple GUI
  • FiberPathş and Auto Test simplifies testing and reduces the need for OTDR trace interpretation
  • Validate proper levels for both optical and cable TV installation, minimizing repair truck rolls and increasing customer satisfaction
