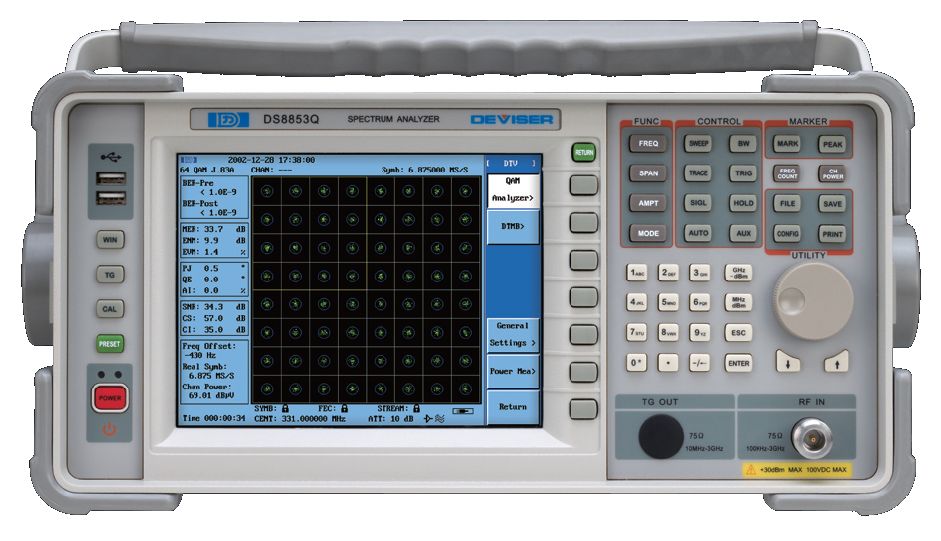

Analizor de spectru TV si CATV 100kHz..3 GHz Deviser DS8853

Cod: Deviser DS8853A/ DS8853B/ DS8853Q/ DS8853T




Brosura produs PDF, 0.99 Mb


Descriere

  • 100 kHz.. 3 GHz Frequency Range
  • 50 or 75 ohm input impedance
  • Portable design with DSP technology
  • Design QAM analysis, spectrum analysis and CATV analysis in one unit
  • QAM analysis: MER, BER, EVM, Constellation Diagram etc.
  • Support QAM/ITU-T J.83 ANNEX A/B/C/D and QPSK, COFDM

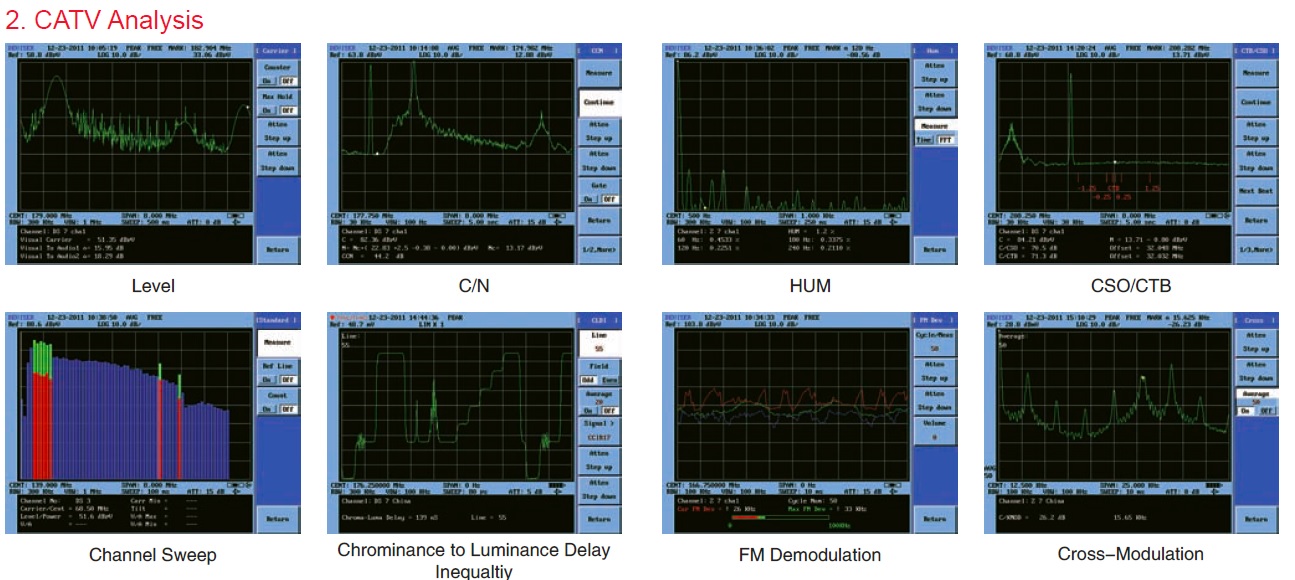

  • CATV analysis: CSO/CTB, C/N, HUM, DoM, LEVEL, Cross-Modulation, Auto and Limit Test etc.
  • Video Analysis Function: Differential Phase/Gain, Chrominanceto-Luminance Delay Inequality

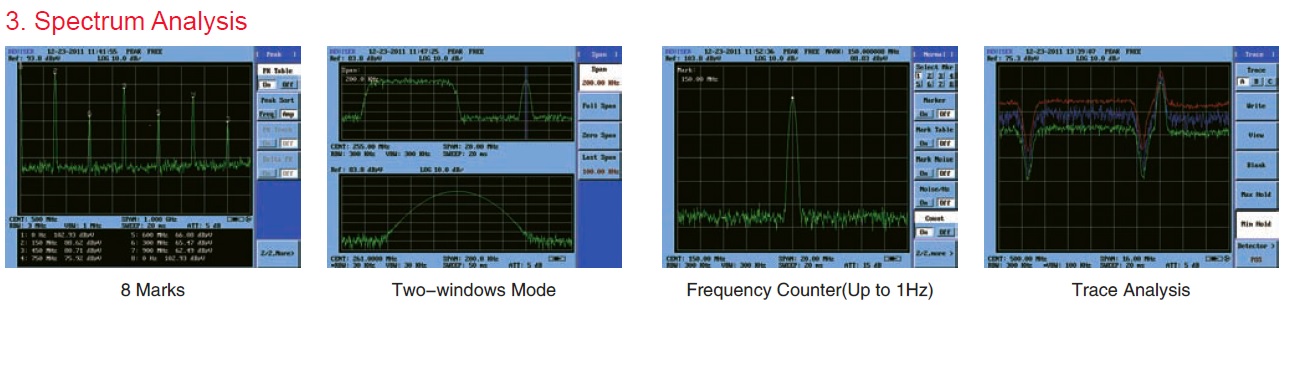

  • Powerful Spectrum Analysis
  • 7.5" color TFT LCD and USB, LAN Interface

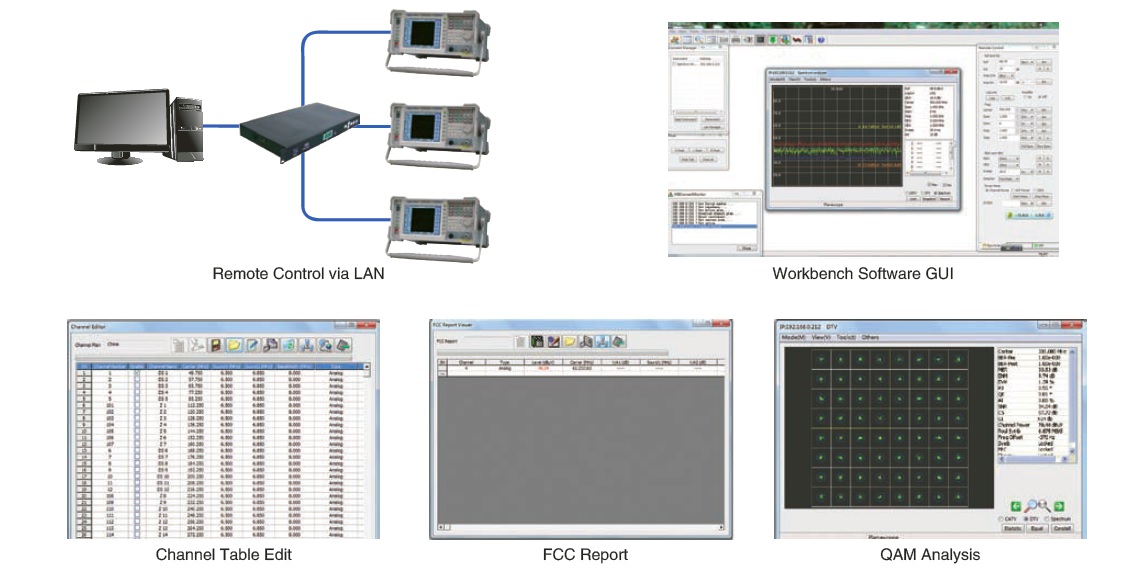

  • Remote control via LAN port
  • Mainly for analyzing broadcasting and communication signal
  • Double scan windows
  • Fast sweep and peak hold function
  • Battery and AC power supply


Accesorii standard

Model              Description

DS8853A        Standard 3GHz Spectrum Analyzer 50O

DS8853B         3GHz Spectrum Analyzer 75Owith CATV

DS8853Q        3GHz Spectrum Analyzer with CATV, DVB-C

DS8853T         3GHz Spectrum Analyzer with CATV DVB-C, DTMB



Optiuni recomandate

Option

Tracking Generator

1000MHz/3000MHz Tracking Signal Source

Workbench

PC management software

Line Selection in CATV

Video Analysis including Differential Phase, Differential Gain, Chrominance-to-Luminance Delay Inequality and Row Triggering function in Spectrum

Narrowband RBW

RBW to 300Hz 100H 30Hz;     VBW to 1Hz

Video output converter

Converting the VGA signal to RCA and S_Video output

CATV Measurement

CATV Indexes

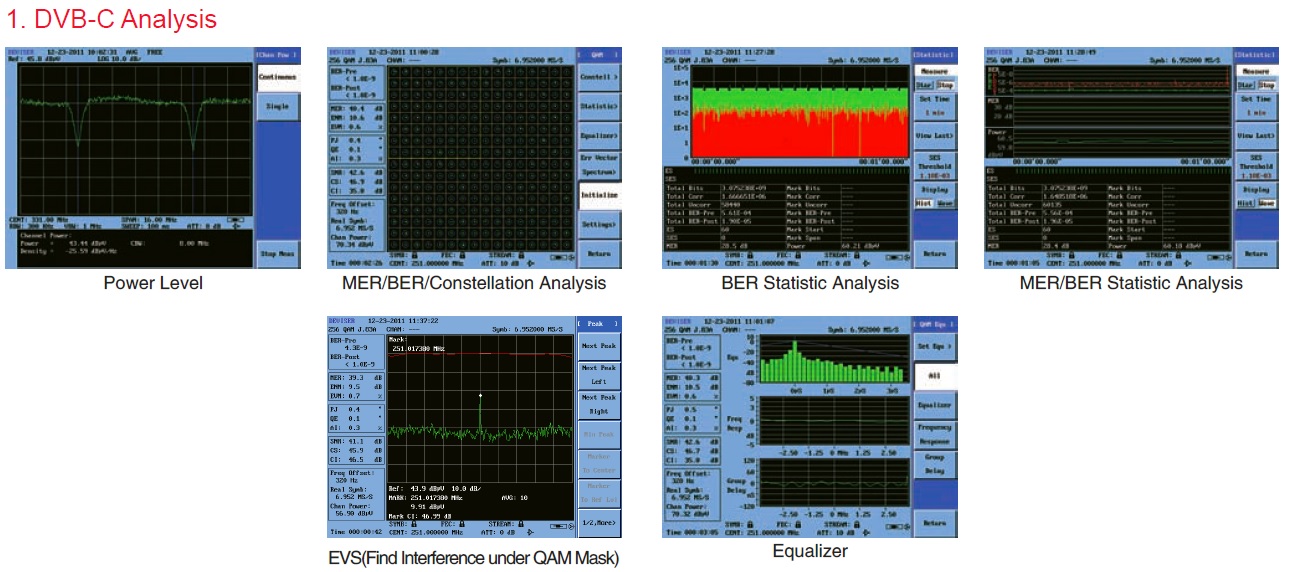

DVB-C Measurement

DVB-C Indexes

DTMB Measurement

DTMB Indexes
