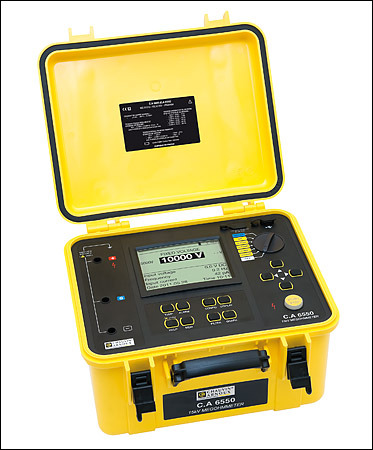

With its site-proof casing, the C.A 6550 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations.

It is ideal for electricity companies, manufacturers, installers, maintenance firms, industry, R&D centres and infrastructure.

Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the C.A 6550 complies with the IEEE43 standard which recommends insulation testing at 5-10kV.

Other features:

- Wide measurement range from 10 kohm to 25 Tohm

- Fixed or programmable test voltage from 40V to 10 kV

- 5mA max charging current

- Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs

- Automatic ratio calculation: DAR / PI / DD / DR (ppm/V)

- Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes

- 3 filters to optimize measurement stability

- Calculation of R at a reference temperature

- 80,000-measurement storage capacity and real-time clock

- Optically-isolated USB communication for transfer onto PC and report generation with DataView® software

Accesorii standard

CA6550½ P01139705

CA6555½ P01139706

C.A 6550 and C.A 6555 delivered with

a bag with 2 safety leads 3 m long equipped with an HV plug at each end (red / blue),

1 guard test lead

3 m long equipped with an HV plug at one end and an HV plug with rear

connection at the other end (black),

3 crocodiles clips (red, blue, black),

2 CAT IV 1,000 V test probes (red/black) for voltage measurements,

1 blue lead with rear connection,

1 mains power cable 2 m long,

DataView® software,

1 optical / USB communication lead,

1 operating

manual in 5 languages on CD-ROM and 5 specification labels(1 per language).

Optiuni recomandate

Accessories / Replacement Parts

3 HV leads with croc. clips for 10/15 kV ... P01295466

Blue 8 m HV lead with croc. clips ... P01295468

Red 8 m HV lead with croc. clips ... P01295469

Black 8 m HV lead with croc. clips ... P01295470

Blue 15 m HV lead with croc. clips ... P01295471

Red 15 m HV lead with croc. clips ... P01295472

Black 15 m HV lead with croc. clips ... P01295473

3 x 3 m HV leads for 10/15kV ... P01295465

50 cm HV lead with rear connection ... P01295467

2 red/black test probes ... P01295454Z

3 crocodile clips: red/blue/black ... P01103062

Bag ... P01298066

C.A 861 thermocouple thermometer ... P01650101Z

C.A 846 thermohygrometer ... P01156301Z
