Model	Channel	Bus Triggers	Protocol Analysis	Cascade for more channels
LA3068E	68	I	I	-
LA3136E	136	I	I	Available later
LA3068B	68	I, II	I, II	-
LA3136B	136	I, II	I, II	Available later

• Bus Triggers I : BiSS-C, CAN2.0, DALI, I²C, I²S, LIN2.2, PWM, SPI, UART, USB PD3.0, ...

• Bus Triggers II : eMMC5.1, eSPI, MIPI SPMI 2.0, NAND Flash, SD3.0, Serial Flash, SVID

• Protocol Analysis I : I²C, SPI, UART, USB PD3.0

• Protocol Analysis II : CAN2.0, BiSS-C, DALI, eSPI, I²S, LIN2.2, MDIO, PMBus, PWM, SD3.0, SVID, ...

• Bus Decode : CAN2.0, eMMC5.1, I²C, Profibus, SD3.0, SPI, SVID, UART, ...(80+ decodes)

1-Wire, 3-Wire, 7-Segment, A/D Mux Flash, AccMeter, ADC, APML, BiSS-C, BSD,

CAN 2.0B, Close Caption, DALI, DMX512, DP Aux, EDID, eMMC 5.1/MMC, eSPI, FlexRay,

HDMI CEC, HD Audio, HDLC, HDQ, HID over I²C, I²C, I²C EEPROM, I²S, I80, IDE, ITU656,

IrDA, JTAG, LCD1602, LIN2.2, Line Encoding, Line Decoding,Lissajous, LPC, LPT, M-Bus,

Math, MDIO, MHL CBUS, Microwire, MII, MIPI DSI, MIPI RFFE, MIPI SPMI 2.0, Modbus,

NAND Flash, NEC IR, PECI, PMBus, Profibus, PS/2, PWM, QI, RGB Interface, RC-5, RC-6,

SD3.0 (SDIO), Serial Flash, Serial IRQ, SGPIO, Smart Card, SMBus, SMI, S/PDIF, SPI,

SPI-NAND, SSI, ST7669, SWD, SWP, SVI2, SVID, UART, UNI/O, USB 1.1, USB PD 2.0,

Wiegand, ...

Alte produse ACUTE

OSCILOSCOP USB 2 X 200MHZ ACUTE TRAVELSCOPE

• PC-based (USB2.0 interface)
• USB powered (2 USB ports needed for TS2212A)
• 2 channels (stackable up to 6 channels)
• 1 GS/s real-time sampling
• 200 MHz bandwidth
• 10K/64M points per channel

ANALIZOR LOGIC 4GHZ ACUTE TL2136B TL2236B TL2236B+

• PC-based
• USB2.0 interface / powered
• 36 channels
• 4 GHz timing / 200 MHz state analysis
• 4-conditions (4 levels each) trigger
• Data Logger (HD storage)
• Bus Decode I : BiSS-C, CAN, eMMC5.0, I²C, I²S, Nand Flash, ProfiBus, SD, SPI, SVID, UART, USB1.1, ... (80+ decodes)

OSCILOSCOP USB DIGITAL 2 X 200 MHZ ACUTE DS-1302

• 200 MHz Bandwidth
• 2 Channels (allows to stack up to max. 6 channels)
• 200MS/s Sample Rate
• 9 bit Vertical Resolution
• 2M Memory Depth

ANALIZOR LOGIC SI PROTOCOL ACUTE BUSFINDER BF6264B

• PC-based, 64 channels
• USB 3.0 interface, 12V power adaptor
• 32Gb total memory
• Protocol Analyzer:eMMC5.1, NAND Flash, SD3.0, SD 4.0 (UHS-II)
• Logic Analyzer:eMMC5.1, NAND Flash, SD3.0, Serial Flash, SPI NAND, SPI

ANALIZOR LOGIC SI PROTOCOL ACUTE TRAVELLOGIC TL3017E TL3134E TL3134B TL3234B+

• PC-based
• USB3.0 interface
• 17 / 34 channels
• 2 GHz timing / 200 MHz state analysis
• 8 Gb Memory
• Voltage detect : 2 sets
• Bus Decode : BiSS-C, CAN, eMMC5.0, eSPI, I²C, I²S, NAND Flash, Profibus, SD3.0, SPI, SVID, UART, USB1.1, USB PD3.0... (80+)

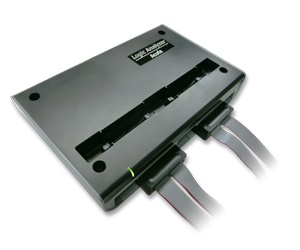

ANALIZOR LOGIC USB ACUTE LA3068E LA3136E LA3068B LA3136B
