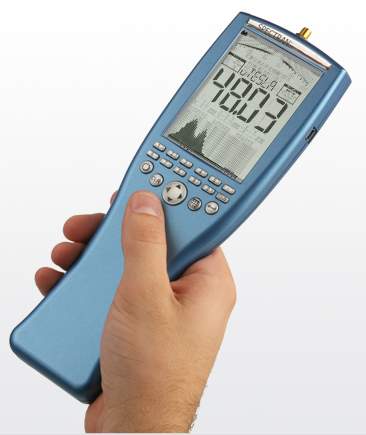

Gaussmetru analiza spectru EMI/ EMC 1Hz..30MHz Aaronia Spectran NF5030

Cod: Aaronia Spectran NF5030




Brosura produs PDF, 0.72 Mb

Descriere

  • Frequency range: 1Hz to 1MHz (30MHz)
  • Magnetic field (Tesla): 1pT to 2mT (typ.) expandable up to a amount of Tesla with PBS1
  • Magnetic field (Gauss): 10µG to 20G (typ.) (only with option 006)
  • Only with Option 009, 24bit resolution: 10nG to 20G (typ.) (Gauss)
  • Electric field: 0,1V/m to 20kV/m (typ.)
  • Analog Input: 200nV to 200mV (typ.)
  • Incl. Option 005 (12Bit Dual DDC Frequency Filter)
  • Resolution (RBW): 0,3Hz to 1MHz (1-3-10 step)
  • Units: V, V/m, T, G, A/m
  • Detectors: RMS, Min/Max
  • Demodulator: AM, FM
  • Input: High impedance SMA input (f)
  • Audio: Internal speaker with volume control and 2,5mm jack
  • Accuracy: 3% (typ.)
  • Interface: USB 2.0/1.1
  • Dimensions (L/W/D): 250x86x27 mm
  • Weight: 420gr
  • Warranty: 10 years



Highlights:

  • Integrated 3D (isotropic) magnetic sensor
  • Data Logger (64K), expandable to 1MB (Option 001)
  • Exposure limit calculation according to DIN/VDE 0848
  • Enhanced and much sharper LCD display
  • Jog Dial for easy usage of menu operation and volume control
  • Simultaneously displays frequency and signal strength
  • Internet flash software updates
  • Real-time remote control via USB
  • Fast FFT/DFT spectrum analysis
  • Hold function
  • High-performance DSP (Digital Signal Processor)
  • Large, high resolution multifunctional LCD
  • 1/4" tripod connection



Examples for possible analysis and measurements within frequency range (1Hz - 30MHz):

  • Traction power
  • Power lines and cables
  • Transformer
  • Power supplies and harmonics
  • Energy saving light bulbs
  • Switching power supplies
  • TFT and LCD monitors and TVs
  • 135kHz RFID
  • DSL
  • ADSL
  • VDSL
  • 13,56MHz RFID
Various home appliances, industry and office up to 30MHz


Accesorii standard

  • EMC/EMI Spectrum Analyzer NF-5030
  • Incl. Option 005 (12Bit Dual DDC Frequency Filter)
  • Integrated electric (E) and magnetic (H) sensor/antenna
  • SPECTRAN 1300mAh rechargeable battery (integrated)
  • Battery charger and power supply incl. international adapter set
  • Aluminum carrying case with foam protection
  • Detailed English manual (on CD)
