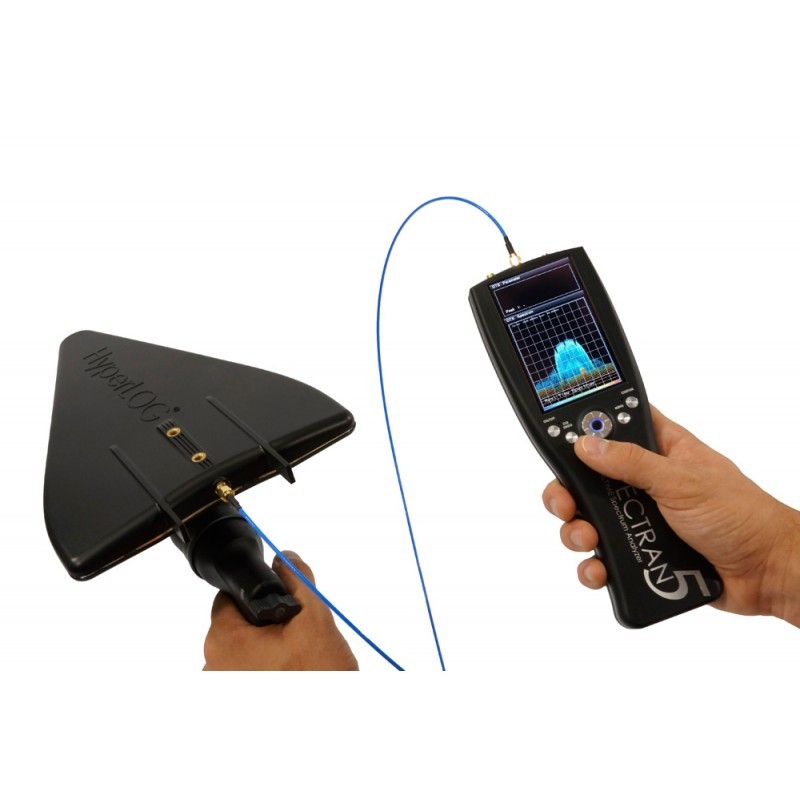

AARONIA Spectran HF-80160 V5 Analizor de spectru in timp real 9kHz..16GHz

Cod: AARONIA Spectran HF-80160 V5




Brosura produs PDF, 1.42 Mb

Descriere

Spectran HF-80160 V5 (9kHz - 16GHz)

Real-Time Handheld Spectrum Analyzer



• Frequency range: 9kHz to 16GHz



• Up to 175MHz Real-Time bandwidth



• POI below 1µS



• Real-time I/Q streaming via USB



• Very fast sweep mode, scans 20GHz in less than 20mS (in preparation)



• Patented polyphase filter technology



• Patented spectrum analysis (modulated LO)



• First analyzer with ultra fast LO sweeps (µS DDS sweep)



• Compact and lightweight



• Optional I/Q Generator (6GHz) and Power Meter (40GHz) available soon



• Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite" (gapless streaming and playback)



Unit is currently supplied with latest beta firmware, which is continuosly updated via free firmware updates (Updater included) and may miss some features.







Aaronia presents the SPECTRAN V5, a Handheld Real-Time Spectrum Analyzer designed to capture even shortest signal transmissions.

With this Spectrum Analyzer you can master all the challenges. Wether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements.

The included PC analysis software RTSA Suite transforms the V5 into a fully-featured Benchtop Spectrum Analyzer . Available in 4 different versions the V5 offers a solution for almost every application.



Additional Information

Country of Manufacture

Germany

Frequency range

9kHz - 16GHz

Weight

850g

Guarantee

2 years

AVG Noise Level (1Hz) with PreAmp

-150dBm/Hz



Accesorii standard

Included with delivery

SPECTRAN HF-80160 V5 incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Watertight & shock-proof transport case, Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapters
