AARONIA OFG30100E Generator camp radio 30MHz..1000MHz

Cod: AARONIA OFG30100E






Descriere

  • Frequency range: 30 MHz to 1000 MHz
  • Up to 3V/m output power (0,5m distance)
  • Perfect for RF immunity measurements
  • Perfect for RF attenuation measurements
  • Highest power level: +18dBm
  • Smallest power level: -45dBm
  • Up to 63dB dynamic range
  • Frequency accuracy: 15Hz (<100MHz), 150Hz
    (<1GHz)
  • Modulations: AM, FM, PM
  • Onboard TCXO for very high frequency accuracy
  • Can be connected to external reference clock for even higher accuracy (female SMA-connector)
  • Onboard CPU and memory for intelligent self-running profiles
  • Stand alone operation (no PC or USB connection required)
  • Battery operation up to 4h
  • USB connector for realtime PC control or for storing programs
  • Incl. 12V power supply for continuous operation
  • Can be operated from 12V Car and Truck power system
  • Dimensions: 540 x 225 x 225mm
  • Small Weight, 1300grams incl. battery

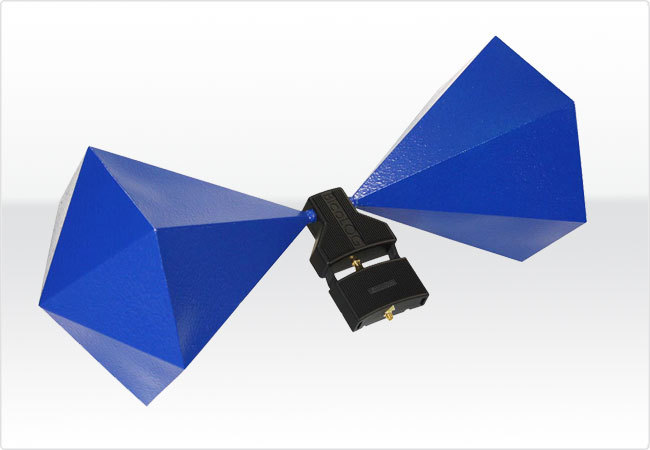

Omni-directional Field Generator OFG30100E



Omni-directional RF field strength generator OFG30100E with high output power

The perfect RF test station or test transmitter for EMC measurements or the assessment of shielding effects (eg shielded rooms or Screen chambers).



Function

The portable, battery-operated field strength generator can be used with simple or complex batch programs that start automatically after power (eg CW signal, sweep, pulse, frequency hopping, etc.). Also, the level can be varied; programmable. A direct control (eg at the laboratory bench) is possible via USB. An appropriate, easy to use software for Mac, Linux and Windows, is included.







Accesorii standard

  • OFG 30100E Field Generator with integrated battery

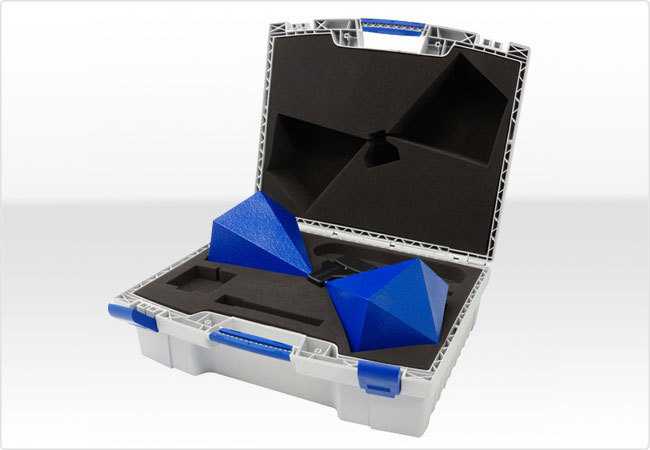

  • transport case
  • pistol grip
  • International Charger/Power Supply
  • SMA Tool
  • USB-Cable
  • Control Software
