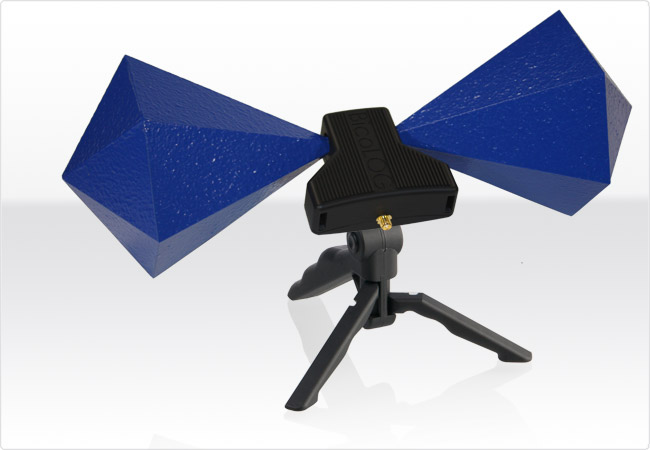

Antena biconica radiala izotropa banda larga 50MHz..700MHz Aaronia BicoLOG 5070

Cod: Aaronia BicoLOG 5070



Brosura produs PDF, 0.54 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Biconical (radial isotropic)
  • Frequency range: 50MHz to 700MHz
  • Max. input power: 5W AM (100MHz)
  • Nominal impedance: 50 Ohm
  • Gain: -18dBi (@100MHz)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Calibration points: 70 (5MHz and 10MHz-steps)
  • Dimensions (L/W/D): 350x160x140mm
  • Weight: 350gr
  • Warranty: 10 years



Highlights:

  • Excellent cost effective choice for low frequency measurements down to 50MHz
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (50MHz - 700MHz):

  • Radio & TV
  • Tetra/BOS
  • ISM434
  • etc.


Accesorii standard

  • BicoLOG 5070 radial isotropic biconical antenna
  • Typical calibration data with 70 calibration points (5MHz and 10MHz steps!) on CD
  • Carrying case not included! Please order it separately!


Alte produse AARONIA

ANALIZOR SPECTRU EMC PROFESIONAL 1MHZ..9.4GHZ AARONIA SPECTRAN HF60100

• Frequency range: 1MHz to 9,4GHz
• DANL: -155dBm(1Hz)
• DANL with Preamp: -170dBm(1Hz)
• Max. power: +20dBm (opt. +40dBm)
• Lowest sample time: 1mS
• Resolution (RBW): 200Hz to 50MHz
• EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz
• Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
• Demodulator: AM, FM, PM, GSM


TESLAMETRU EMF CAMP MAGNETIC 10HZ..400KHZ AARONIA SPECTRAN NF3020

• Frequency range: 10Hz to 400kHz
• Magnetic field (Tesla): 1pT to 100µT (typ.)
• Magnetic field (Gauss): 10µG to 1G (typ.)
• Electric field: 1V/m to 5.000V/m (typ.)
• Analog Input: 2µV to 200mV (typ.)
• Resolution (RBW): 1Hz to 100kHz (1-3-10 step)
• Units: V, V/m, T, G, A/m


AARONIA BPSG6 OEM GENERATOR RF 6GHZ

• Frequency range: 23.5 MHz to 6 GHz
• Up to +18dBm output power (female SMA-connector)
• Smallest power level: -48dBm
• Up to 65dB dynamic range
• Frequency accuracy: 15Hz (<100MHz), 150Hz (<1GHz), 600Hz (<4GHz)
• Modulations: AM, FM, PM

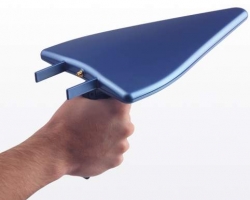

ANTENA EMC ACTIVA BANDA LARGA CU PREAMPLIFICATOR 700MHZ..2.5GHZ AARONIA HYPERLOG 7025X
