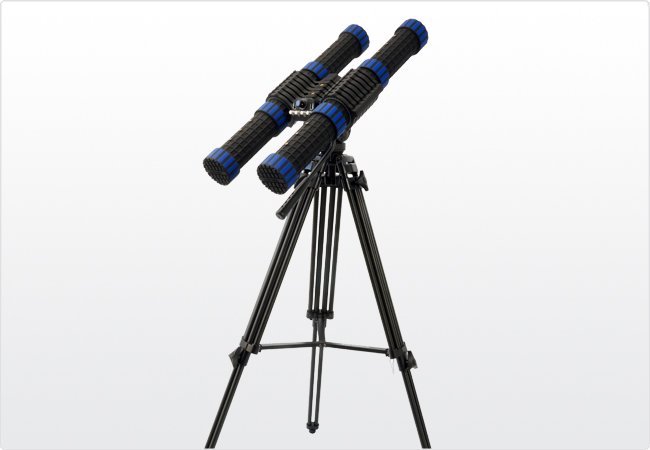

AARONIA Magnotracker ELF-6 pentru detectare directie camp ELF, SLF & ULF 1Hz..9kHz

Cod: AARONIA Magnotracker ELF-6






Descriere

Technical data

  • Frequency Range: 1Hz - 9kHz
  • Design: Ferrite core, Active
  • Internal Amplifier: 25dB (optional 35dB), battery powered (3-4 hours) or continuosly powered via included power supply
  • Impedance: 50 Ohm
  • RF connector: SMA (female), optional N connector
  • Temperature range: - 20°C to +60°C
  • Dimensions: (L/W/D): 66 x 32 x 11 cm
  • Weight: 9kg
  • Incl. watertight transport case
  • Weight case: 11kg
  • Dimensions case: 113 x 42 x 16cm
  • Warranty: 10 years



Highlights:

  • Perfect for magnetic field direction finding in combination with Spectrum Analyzers
  • High Gain, internal 25dB pre-amplifier
  • High Directionality
  • Patented Functionality
  • Compact Design
  • 10 years warranty and manufactured in Germany

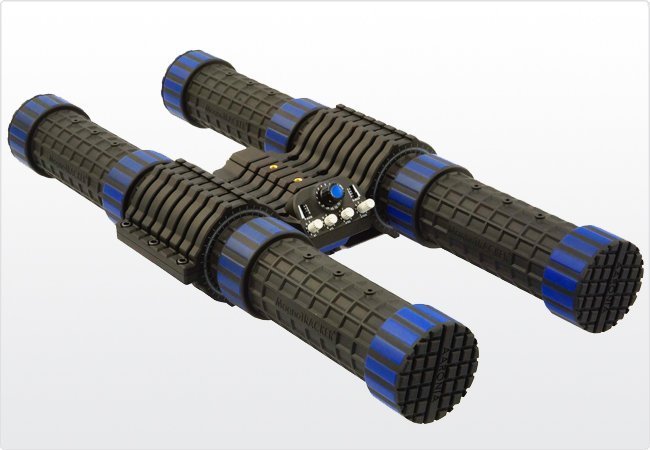

ELF, SLF and ULF Magnetic Field Tracking Antenna Aaronia MagnoTRACKER ELF-6



A lot of customers have problems detecting and pin pointing signals in the low frequency range from 1Hz to 9kHz. They want one antenna with high gain to cover the full frequency range. The antenna should also offer a high directivity to pin point the signal(s).
Till today such an antenna simply did not exist. Aaronia now offer world´s first patent pending magnetic antenna "MagnoTRACKER" combining all those features.

Based on a new patented production process Aaronia can produce this new cores with only 10% of the material and weight needed for similar working ferrites. A great advantage for the handling of the MagnoTRACKER antenna.

The Aaronia MagnoTRACKER is usable for the full frequency range of 1Hz to 9kHz without any adjustment. Simply connect it via SMA cable to your Receiver, Spectrum Analyzer, Oscilloscope, Power Meter etc. With a built-in 25dB pre-amplifier (optional 35dB) the antenna offers a very high gain.

Finding disturbing signals, interferences etc. was never that simply and efficient.



Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all MagnoTRACKER antennas.







Examples for possible analysis and measurements within frequency range (1Hz - 9kHz):



  • ELF Band
  • SLF Band
  • ULF Band
  • Interference hunting
  • Secure communication
  • AC power grids
  • Submarine communication
  • etc.





Accesorii standard


Included in delivery

  • Aaronia Magnotracker ELF-6

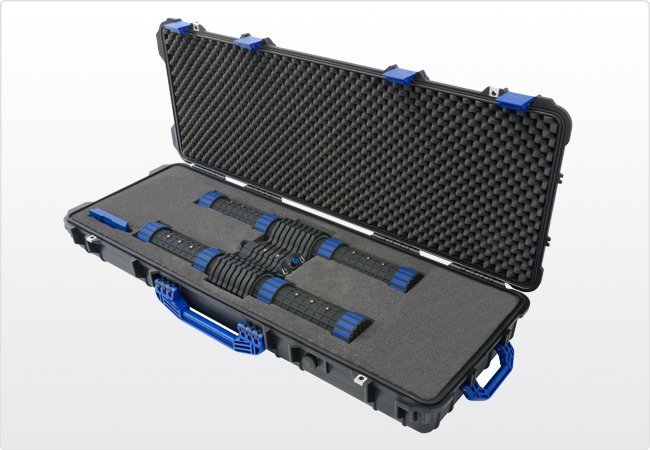

  • Watertight transport case with foam insert
  • International Power Supply
