AARONIA MDF 930X Antena magnetica activa urmarire directie camp 9kHz..30MHz

Cod: AARONIA MDF 930X




Brosura produs PDF, 0.6 Mb

Descriere

Technical data

  • Compatible with any Spectrum Analyzer brand
  • Design: Active Loop
  • Frequency Range: 9kHz - 30MHz (1MHz - 25MHz with max. +/- 0,5dB deviation)
  • Impedance: 50 Ohm
  • RF connector: SMA (female)
  • Temperature range: - 40°C to +60°C
  • Dimensions: (L/W/D): 180 x 180 x 85 mm
  • Weight: 360gr
  • Incl. Pistol grip with mini tripod function & watertight transport case
  • Warranty: 10 years



Highlights:

  • Perfect for magnetic field direction finding in combination with Spectrum Analyzers
  • Incl. 35dB pre-amplifier with integrated battery
  • Compact Design and low weight
  • 10 years warranty and manufactured in Germany

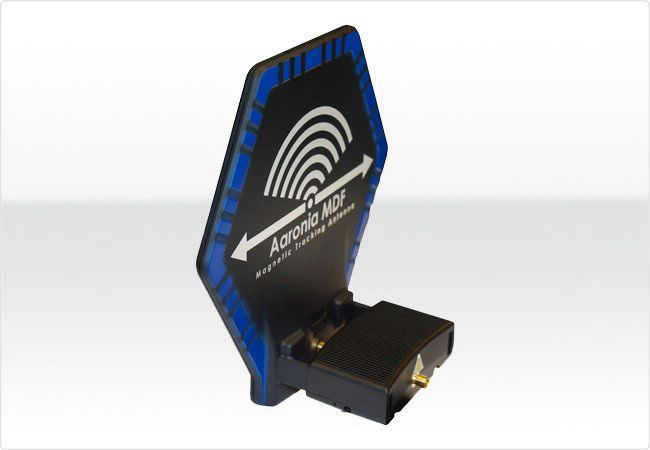

Active Magnetic Field Tracking Antenna Aaronia MDF 930X



The Aaronia MDF 930X is a broadband, active magnetic field tracking antenna, suitable for signal tracking and field strength measurements.

Thanks to the high directionality of the antenna, the MDF is ideally suited for signal direction finding.



In contrast to the passive version, the MDF 930X comes with directly attached 35dB preamplifier. The thus reached extremely high antenna gain allows the measurement of ultra-weak signals.



The preamplifier of the antenna can be operated by an internal battery or by the included USB AC adapter. The battery time is approx. 3-4 hours. The USB connection allows to read out the calibration data of the preamplifier, which are stored in the internal EEPROM and therefore can not be lost.



Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all MDF antennas.



Optional Accessories:

Each MDF antenna can be equipped with many accessories. More details can be found at above section "Accessories".





Examples for possible analysis and measurements within frequency range (9kHz - 30MHz):



  • Pre-Compliance-Test
  • DSL
  • ADSL
  • VDSL
  • 13,56MHz RFID
  • Amateur Radio
  • etc.





Accesorii standard

Included in delivery

  • Aaronia MDF 930X Antenna with 35dB preamp & USB power charger
  • Pistol grip with miniature tripod function
  • Watertight transport case with foam insert
