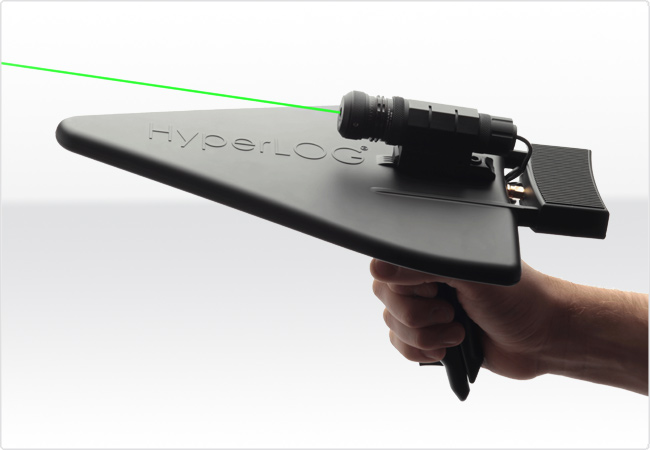

Antena banda larga pentru testare 680MHz..10GHz Aaronia HyperLOG 60100X

Cod: Aaronia HyperLOG 60100X




Brosura produs PDF, 0.54 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Active Logarithmic-Periodic
  • Frequency range: 680MHz - 10GHz
  • Nominal impedance: 50 Ohm
  • VSWR (typ.): <1:2,5
  • Gain (typ.): 45dBi
  • Antenna factor: see data sheet graph
  • RF connection: SMA socket (18GHz) or N socket using an adapter
  • Tripod connection: 1/4"
  • Interface: USB 2.0/1.1
  • Calibration points: 933 (10MHz-steps)
  • Dimensions (L/W/D): 340x200x25 mm
  • Weight: 400gr
  • Warranty: 10 years



Highlights:

  • Ultra high gain for detecting even lowest RF sources
  • Integrated Low Noise Preamplifier incl. LiPo battery
  • Runs with battery or external power supply (included)
  • Integrated calibration data on EEprom (readout via USB)
  • Additional standard calibration data (on CD)
  • Special designed radome for perfect antenna protection
  • Gold coating for stable performance
  • Wide bandwidth
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact and sturdy design
  • Can be used in the lab and for open-field application





Application areas to measure with the antenna:

  • GSM900 / GSM1800 / UMTS
  • GPS
  • DECT
  • Microwave
  • WiFi
  • HDMI
  • 2,4GHz / 5-6GHz WLan
  • directional radio
  • UWB (FB2-FB8)
  • WiMAX
  • etc.


Accesorii standard

  • Active Directional Antenna HyperLOG 6080 X
  • Low Noise Preamplifier with integrated LiPo battery (3,5h run time)
  • International battery charger and power supply
  • Calibration data on EEprom (readout via USB)
  • Typical calibration data with 933 calibration points (10MHz steps!) on CD
  • Large aluminum carrying case with foam protection
  • Pistol grip with mini tripod function
  • Aaronia SMA tool set with over-torque protection
  • SPECTRAN is NOT included
