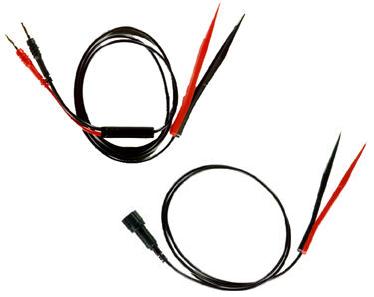

SMD Test Tweezers for DMM, RLC-meters Testec TT-22100

• TT-SI 9101 1:10 / 1:100, 100MHz
• TT-SI 9110 1:100 / 1:1000, 100MHz

• TT-SI 9010 1:100 / 1:1000, 70MHz
• TT-SI 9010A 1:100 / 1:1000, 70MHz

• TT-SI 200 1:10, 200MHz
• Bandwidth: 200MHz
• Attenuation Ratio: : x10
• Accuracy: ± 1%
• Rise Time: 1,75ns
• Input Impedance: 500kW / 7pF

• I-prober 520 - PCB track Touch & Measure
• Current measurement from insulated probing of conductor
• Suitable for observation and measurement of current in PCB tracks, component leads and ground planes
• Wide dynamic range of 10mA to 20A peak to peak
• Wide bandwidth of DC to 5MHz
• Low noise figure equivalent to <6mA rms at full B/W



• TT-LF 112 1:1 - 1,2m, 25MHz
• TT-LF 116 1:1 - 1,6m, 22MHz
• TT-LF 120 1:1 - 2,0m, 20MHz

• TT-LF 212 10:1 - 1,2m, 150MHz
• TT-LF 216 10:1 - 1,6m, 130MHz
• TT-LF 220 10:1 - 2,0m, 100MHz

• TT-HVP 40 1000:1, 300Hz
• Attenuation Ratio: x1000 @ 10 Ω, x2000 @ 1 Ω
• Input Impedance: 1000 Ω
• Bandwidth: 300 Hz (-3dB)
• Max. Input Voltage: DC 40kV, AC 28kVrms (0..300Hz)
• Cable Length: 1,0 m

• TT-HVP 15HF 1000:1, 50MHz
• Attenuation Ratio: x1000 +/-1% @ 1 Ω
• Accuracy: VDC +/-6% / VAC +/-6% @ 1kHz
• Input Impedance: 100 Ω, 1 pF
• Bandwidth: 50 MHz (-3dB)

• TT-HF 412 10:1 - 1,2m, 350MHz
• TT-HF 420 10:1 - 2,0m, 270MHz

• TT-HV 150 100:1, 300MHz
• TT-HV 151 100:1, 200MHz
• TT-HV 250 100:1, 300MHz
• TT-HV 251 100:1, 200MHz
