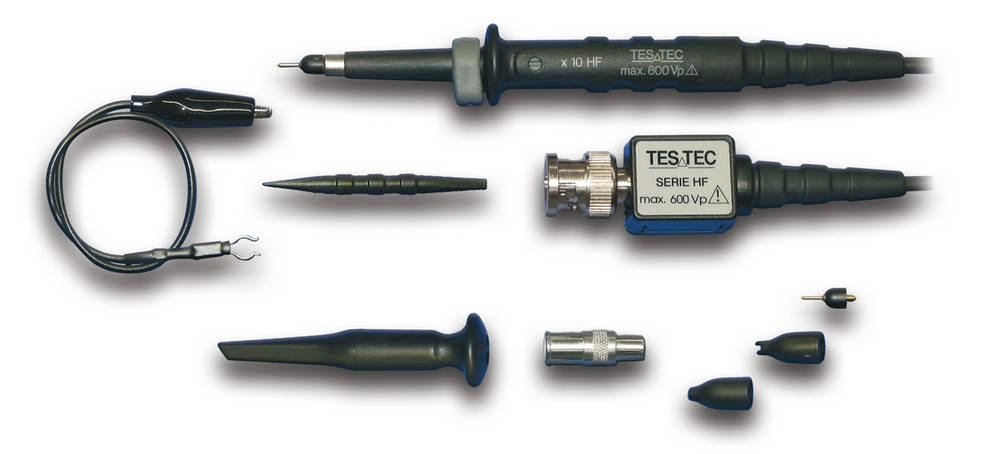

Voltage Oscilloscope Probe 10x attenuation Testec TT-HF200

Code: Testec TT-HF200




Description

TT-HF 212  10:1 - 1,2m, 300MHz

Attenuation Ratio: x10

Input Impedance: 10 Ω, 13,5 pF

Bandwidth: 300 MHz

Rise Time: 1,2 ns

Cable Length: 1,2 m

Compensation Range: 10..50 pF



TT-HF 220  10:1 - 2,0m, 230MHz

Attenuation Ratio: x10

Input Impedance: 10 Ω, 15,5 pF

Bandwidth: 230 MHz

Rise Time: 1,5 ns

Cable Length: 2,0 m

Compensation Range: 10..50 pF
