Shineway MTP-200-OSA Optical Spectrum Analyzer / Channel Analyzer

Code: Shineway MTP-200




Datasheet PDF, 0.34 Mb

Description

 Multi-Function and High Performance CWDM + DWDM Testing



?    S, C and C+L band measurement range

?    Up to 160 channels measurements

?    DWDM Channel spacing down to 50 GHz

?    ITU G.694.1 grid compliant (DWDM)

?    ITU G.694.2 grid compliant (CWDM)

?    High wavelength accuracy: ½ 50 pm

?    Dynamic range > 50 dB

?    PDL < 0.3 dB

?    Channel power measurement

?    Channel threshold detection

?    In-band OSNR measurement



Optimized Platform Performance



?    Lightweight, 2.1kg

?    7 inch touch screen

?    Windows user interface for easy operation

?    Damp-dust-shock proof

?    10 hours continuous operation

?    Supports WiFi / Bluethooth / GPS

?    Direct printing function(compatible with PCL printers)

?    Remote/local control by PC



More products SHINEWAY

OPTICAL FIBER IDENTIFIER SHINEWAY OFI-20A/ OFI-20B

• Fiber types: 250µm, 900µm, 2mm/3mm jacketed fiber
• Non-destructive detection
• Indication of signal presence, strength and direction
• CW/MOD tones detection
• Buzzer indication
• Handheld & sturdy
• CE, FCC certificates



SHINEWAY OCC-50 CWDM OPTICAL CHANNEL CHECKER

• Result display in histogram and list
• Applicable to normal optical power measurement
• Internal clock & fiber S/N editable
• User definable threshold setting

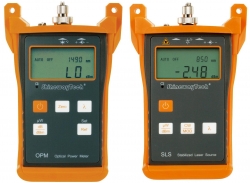

OPTICAL FIBER POWER METER/ LASER SOURCE LOSS TEST SET SHINEWAY OPM-15/ SLS-21
