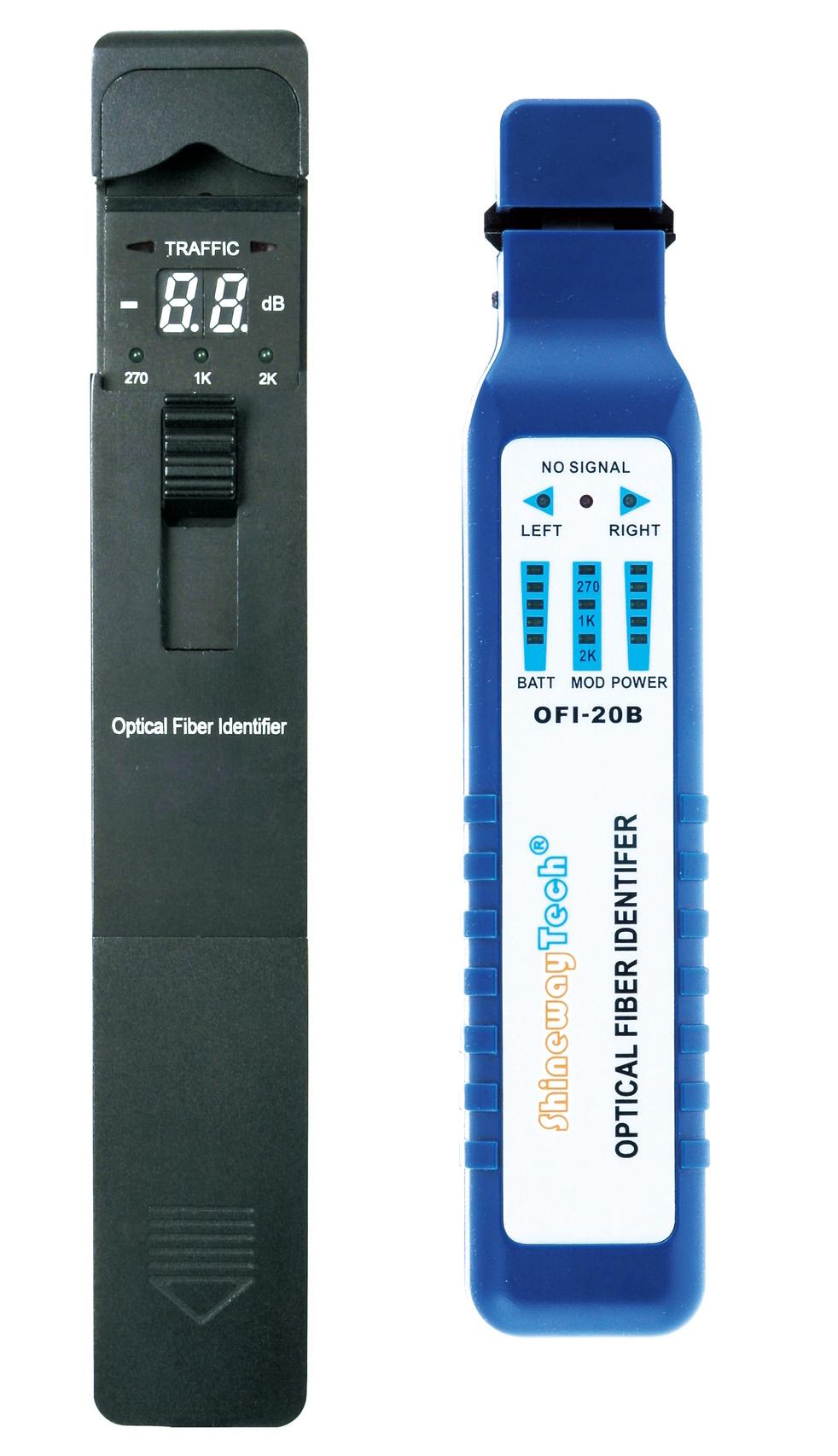

Optical Fiber Identifier Shineway OFI-20A/ OFI-20B

• Attenuation Range: 2.5-60dB
• Direct Output Power Control
• Adjust at step of 0.05/0.10/1.00/10.00 dB
• PC Control via USB
• Backlight



• Clear TFT LCD display (320*240)
• 8-channel measurement (1471-1611 nm)
• Result display in histogram and list
• Data Transfer to PC via USB
• 10 hours continuous operation



• Measures 2G/3G wireless network
• GSM900/1800, CDMA800/1900, TD-SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX or user-defined band
• High-accuracy forward/reflected power, VSWR, Return Loss & load power measurement
• Monitor function & test data saving
• Standard N(F) connector supports various transmission cable & antenna
• USB & DB9 interface



• Lightweight, portable
• High precise measurement, large memory capacity (200 test curves)
• RS-232/USB data upload port
• PC software for measurement data analyzing and reporting
• Display measurement by graphics curves
• NiMH rechargeable battery support 10 hours continuous operations



• Specially designed for FTTx/PON (B/E/G) applications
• Simultaneous Triple-play PON signals measurement: 1310/1490/1550nm (Voice/Data/Video)
• Pass/Warning/Fail assessment
• Pass-through test: Applicable anywhere on PON
• Optional Visible Fault Locator for macro bend detection and fiber identification
• Optional SM/MM Power Meter and Stabilized Laser Source



• Available for SC, FC, ST, etc. connectors
• Suitable for both field use and factory use
• Consistently achieve high quality cleaning without alcohol or other solvents
• Cleaning tape is replaceable, thus reducing long-term cost
• One cleaning tape can be used for over 600 wipes/reel



• Compatible with various connectors
• Dual channel video input (microscope) for easy viewing of male/female connectors
• Extended display on external monitor
• Audio & video recording
• Multimedia playback
• Direct read/write flash disk
• Large storage: 128MB internal memory, SD card up to 16GB
• Data transfer via USB2.0



• Fiber types: 250µm, 900µm, 2mm/3mm jacketed fiber
• Non-destructive detection
• Indication of signal presence, strength and direction
• CW/MOD tones detection
• Buzzer indication
• Handheld & sturdy
• CE, FCC certificates



• Eye-safe video viewing
• Inspect male and female connectors
• Various tips available
• Single-handed operation, quick focus
• Slim to access hard-to-reach connectors



• Analysis and evaluation of SDH and PDH networks andequipment up to 155Mbps.
• According to ITU.T G.821, G.826, G.828,G.829, M.2100, M.2101.
• Tandem Connection Monitoring (TCM) and APid tests.
• Support pointer adjustment test.
• Automatic Protection Switching (APS).
• Round trip delay measurement (STM-1 and E1).
