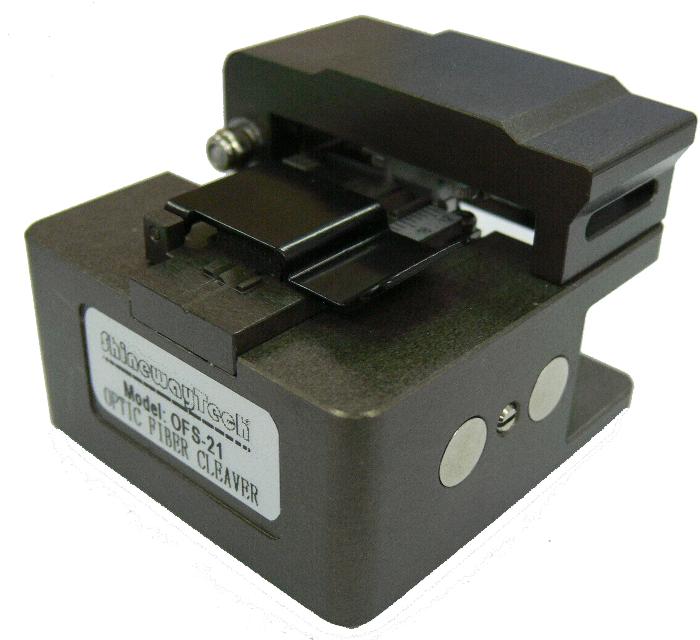

Optical Fiber Cleaver Shineway OFS-21

Code: Shineway OFS-21




Description

  • Easy to use, Reliable
  • Available for Single mode fiber at the standard qualification of ITU-T-Rec. G.652
  • Desktop type
  • Easy to replace blade
  • Able to rotate to change the blade position



Technical specifications:

Applicable range

Single Core silex-fiber (ITU-T-Rec. G.652)

Coating Diameter

f0.25mm &f0.9mm

Fiber Diameter

125µm

Cleave Length

9~22mm

Dimension

58mm(W)*55mm(D)*48mm(H)

Weight

255g

Cleaving Angle

=1.5°

Average Cleaved Angle (at 100 trails)

=0.75°

Blade Rotational Position

16

Blade Life

12000 times
