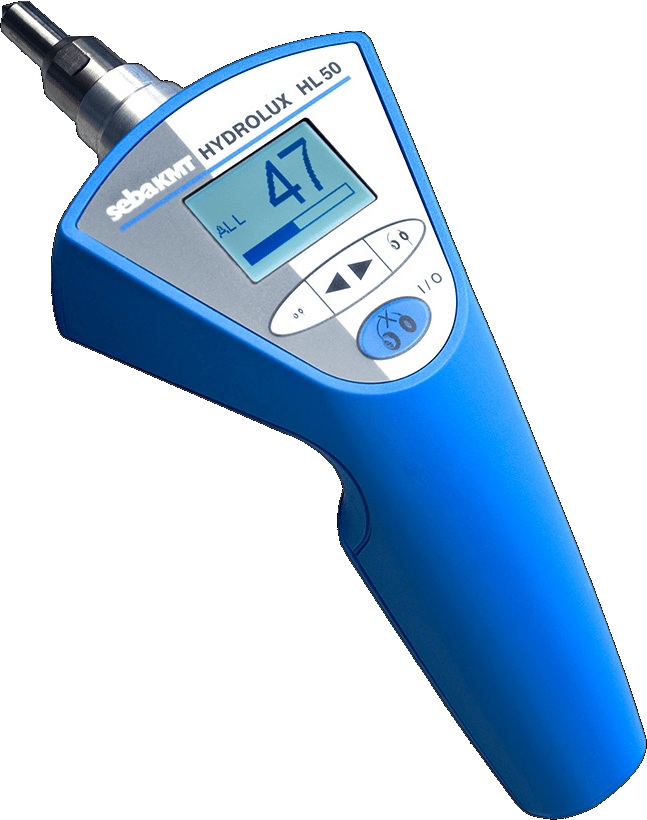

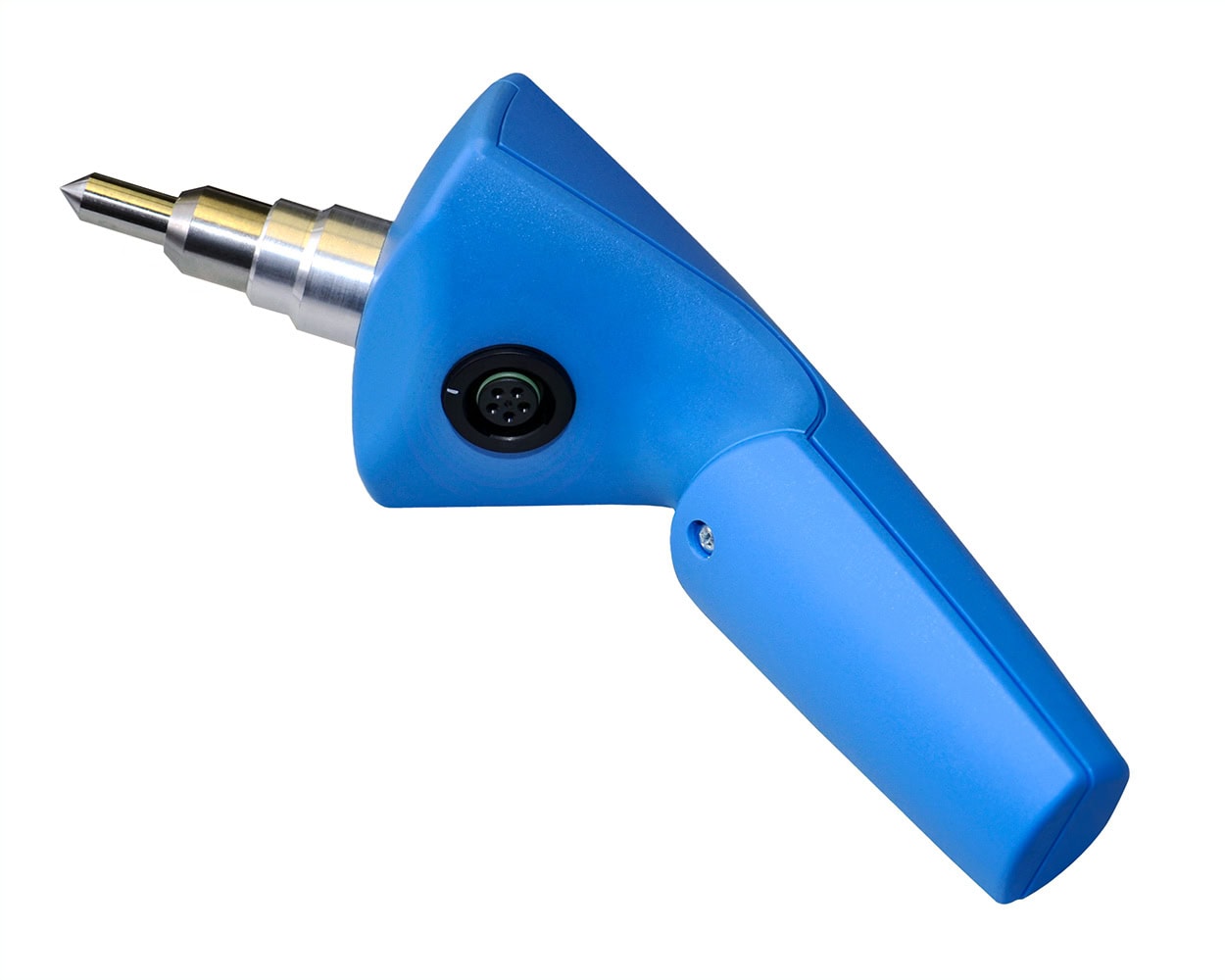

SEBAKMT HL50-BT Portable Water Leak Detector

Code: SEBAKMT HL50-BT HL50BT HL 50-BT HL50 1009207 HYDROLUX



Datasheet PDF, 0.94 Mb


Description

Portable leak detector HL 50-BT
As a water manager or user, you know how essential it is to keep your water network in perfect condition. Every drop counts, and every unnoticed leak that goes unnoticed can cause significant damage and enormous losses""not only to the infrastructure, but also to the environment and your budget.

Special features
Simple operation with just two function buttons
Frequency filter
Always ready for use thanks to rechargeable battery
External ground microphones can be connected for professional leak detection

Find leaks with the HL 50-BT
With the HL 50-BT, monitoring and maintaining your network is not only easy but also very convenient.

Thanks to its sophisticated ergonomic shape, the HL 50-BT fits perfectly in your hand. It is designed so that you can easily operate it with just one hand during use. The four intuitive function buttons - filter, mute, volume up and volume down - are arranged so that you can easily reach them with your thumb. This makes work not only efficient, but also pleasant, even during long periods of use.

The standard version of the HL 50-BT offers everything you need to work flexibly and effectively. An integrated sensor ensures that you get precise and reliable results. The supplied Bluetooth wireless headset makes annoying connection cables superfluous, so you can move around freely - without having to worry about tangled cables or restrictions.

The HL 50-BT is your ideal solution for quickly and effectively detecting leaks and monitoring your network. Whether you are listening to gate valves and hydrants outdoors or checking valves inside buildings, this device provides you with clear acoustic signals and helps you to identify problems at an early stage. You not only protect the infrastructure, but also actively help to minimize water losses and conserve valuable resources.

This device is not just a tool - it is a partner that helps you to master the challenges in your everyday life. You gain control, security and a good feeling that you are doing everything you can to protect your water network.

Rely on the HL 50-BT so that you can look to the future with a smile and a clear conscience - for yourself, for your community and for the environment.

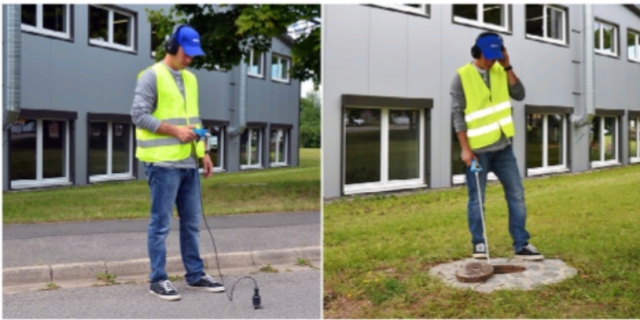

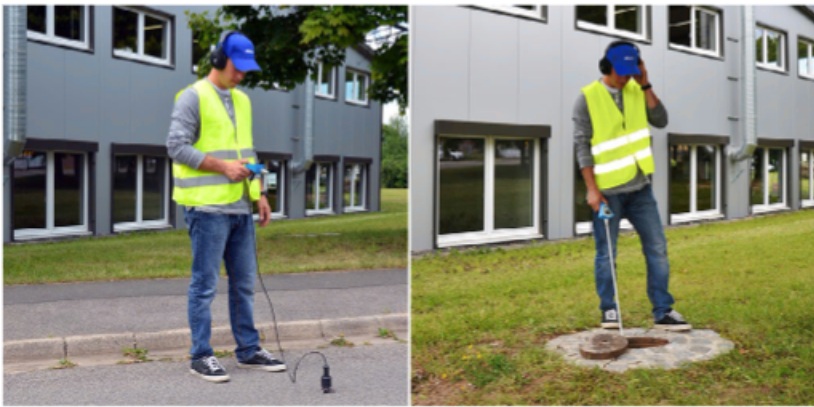

Precise pinpointing with the HL 50-BT
When it comes to not only detecting leaks, but locating them with pinpoint accuracy, the HL 50-BT is your reliable partner. Thanks to the integrated sensor and outstanding acoustic precision, you can trace water leaks back to the smallest point.

With the HL 50-BT's pinpoint detection, you can hear the noises that cause leaks clearly and distinctly. The device effectively filters out ambient noise and amplifies the relevant signals so that you can work quickly and accurately. Whether on gate valves, hydrants, fittings or pipes, you can be confident that you are identifying the exact source of a leak.

Bluetooth (TM)
Bluetooth technology ensures that you can move around freely. No cable restricts your freedom of movement, so you can adapt flexibly to any location. This freedom is a great advantage, especially when pinpointing, where every centimeter counts.

With the HL 50-BT, you can reduce the time you spend on leak detection and increase accuracy at the same time. This not only means less effort for you, but also faster protection of your water network and the prevention of major damage.

Every drop counts "" and with the HL 50-BT, you won't miss a single one. Rely on precise pinpointing to sustainably protect your infrastructure and use resources efficiently.

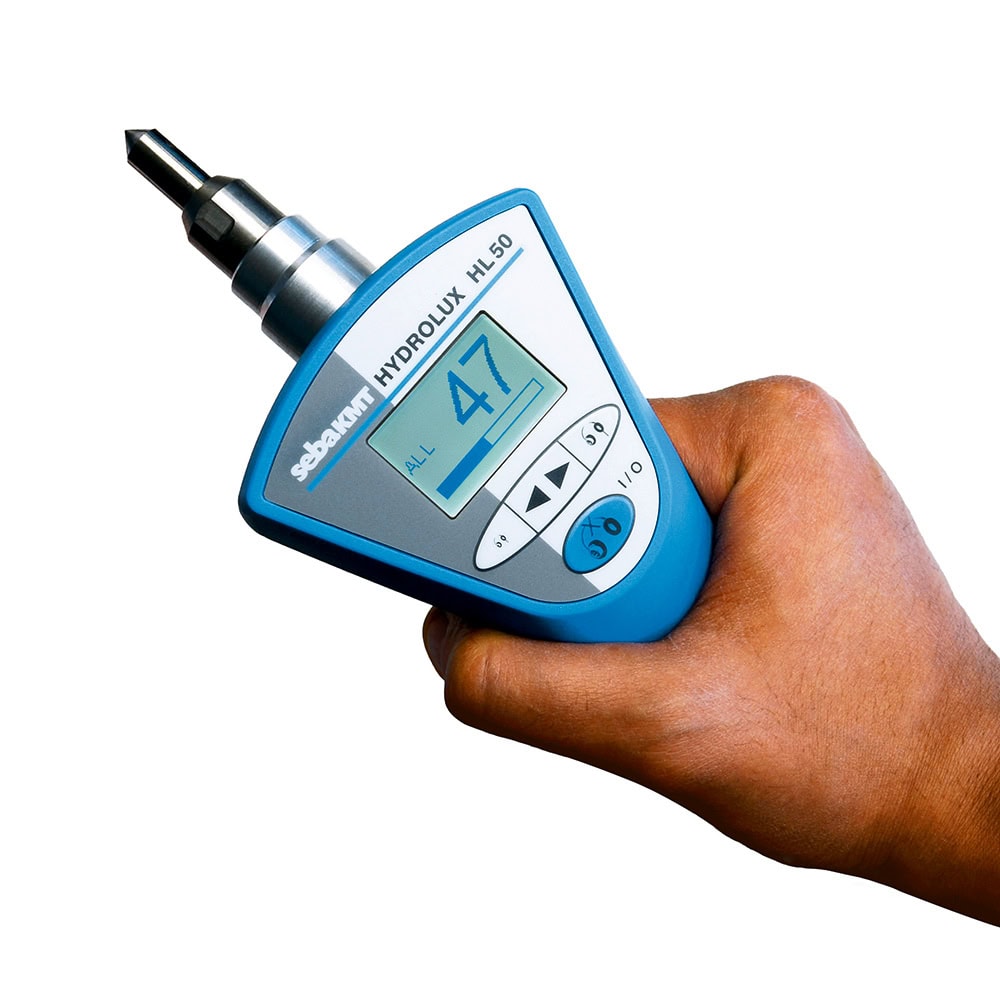

Ergonomic shape
Thanks to its special ergonomic shape, the HL 50-BT can be held in one
hand during use. Only four function buttons (filter, mute, volume) are required to operate the HL 50-BT, which can be easily reached with the thumb. This means that the HL 50-BT offers optimum freedom of movement and is ideally suited for monitoring gate valves and hydrants, as well as fittings in buildings. The measured sound level is simultaneously shown numerically and graphically as a bar on a large LCD display. The currently set filter range is also displayed. When a measurement is ended, the last
measured sound level is marked in the bar. For maximum flexibility and professional applications, three different external microphones are optionally available for the HL 50-BT.




Standard accessories

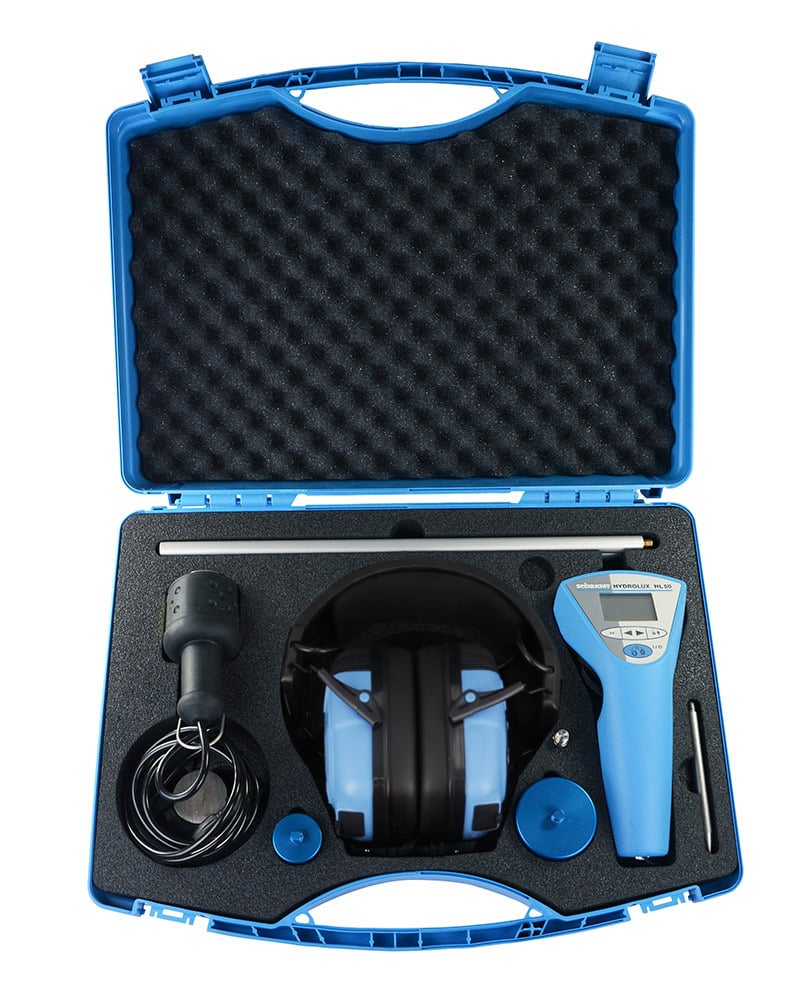

Scope of delivery
HL 50-BT receiver with integrated noise sensor
Bluetooth® wireless headphones ISOtunes (IPX4)
Transport case
Gate valve adapter 20mm, 42mm
Magnetic adapter
Extension rods for stylus tip or magnet (2 pcs.)
Charger for HL 50-BT and headphones
Operating instructions DE/EN (other languages on request)


Recommended options

Optional accessories
PAM B-2 accessories set
1009209- Universal microphone PAM B-2, 1.5m
- Tripod adapter
PAM B-2-3 820015303
- Universal microphone, 3m
PAM W-7-C
1015273
- PAM W-7-C, Ground microphone Cable connected
- Telescopic handle, DPP SU2
- Connecting cable PAM HYDRO-2
- Connection Cable PAM W-7-C HL 50
