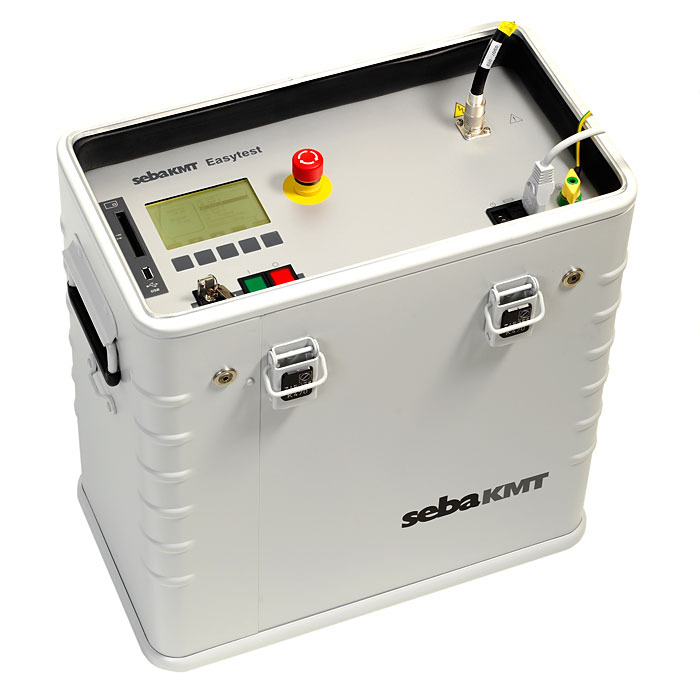

Seba KMT Easytest 20kV VFL cable tester Very Low Frequency

Code: Seba-KMT Easytest-20kV VFL

Datasheet

PDF, 0.18 Mb

Description

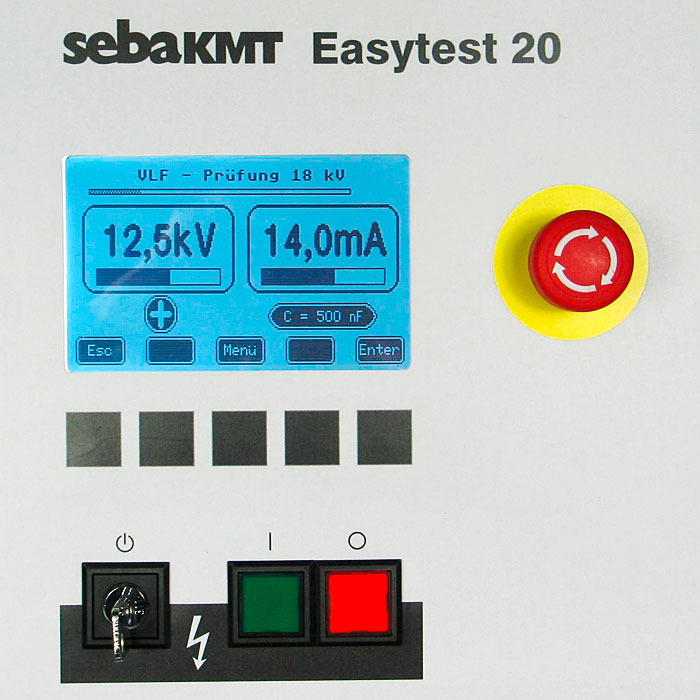

Easytest 20kV

The Easytest represents a simplified version of the standard VLF test. It has been designed to verify operational integrity versus operational reliability, which is the objective of a standard VLF test in accordance with the respective standards.

Typically, a simplified test is performed in accordance with company specifications after repairs or after a new cable or circuit has been installed. The purpose of such a test is to verify the integrity of the cable and there accessories before switching the circuit back into operation. The Easytest allows such a test at voltages well above operating voltage in order to provide a safe indication regarding operational integrity.

Key benefits:

Easy to operate
Configurable test sequences
Compact, rugged and lightweight design
AC, DC and sheath testing in one single system
Reporting via USB or Winkis

Standard accessories

Standard accessories

»» Connection cable for HV, mains supply and earth

»» Accessory bag

»» Operating manual

»» Carrying belt

Recommended options

Options

»» Logging

by USB stick or chip card via Winkis VLF

»» Pinpointing

Step voltage receiver ESG NT for sheath fault

pinpointing

»» External back voltage protection

Additional timer function for delayed HV ON,

permitting to leave the HV switchgear area.

The system is switched off in the event of back

voltage, and the HV output is operated by a

circuit breaker. Visual and audible indication of

detected back voltage

»» Trolley
