PROMAX RANGER mini

Code: RANGER mini CATV DOCSIS



Datasheet PDF, 0.59 Mb


Description

RANGER mini: TV and Satellite analyzer for RF, CATV, DOCSIS and optical fibre analyzer

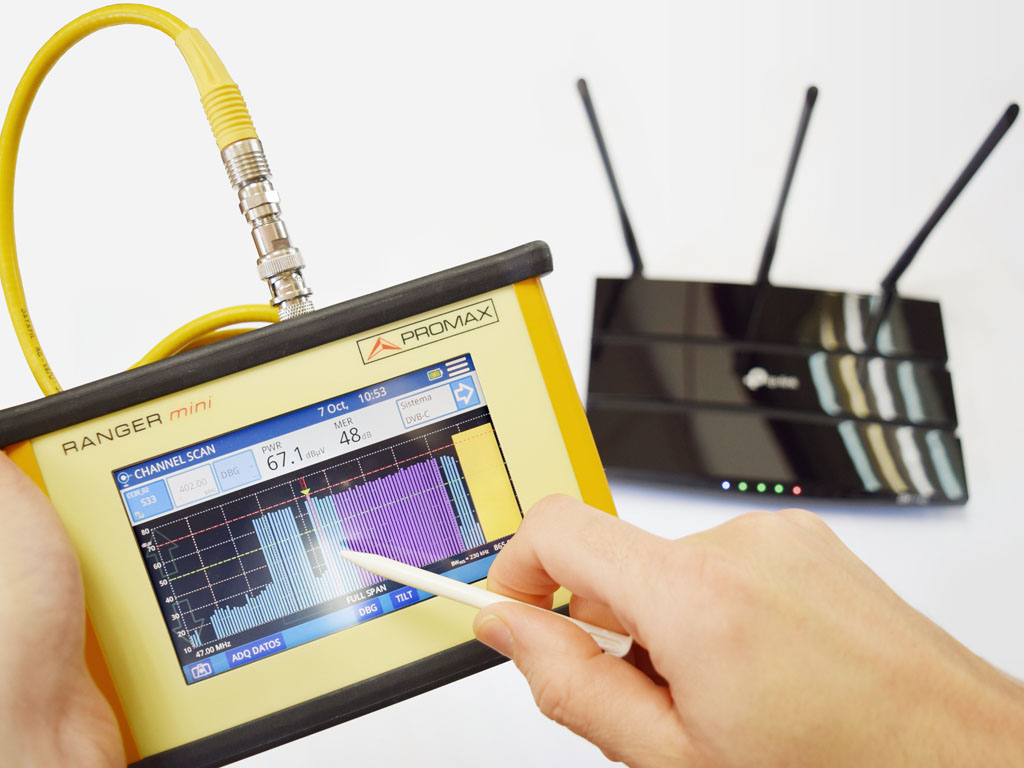

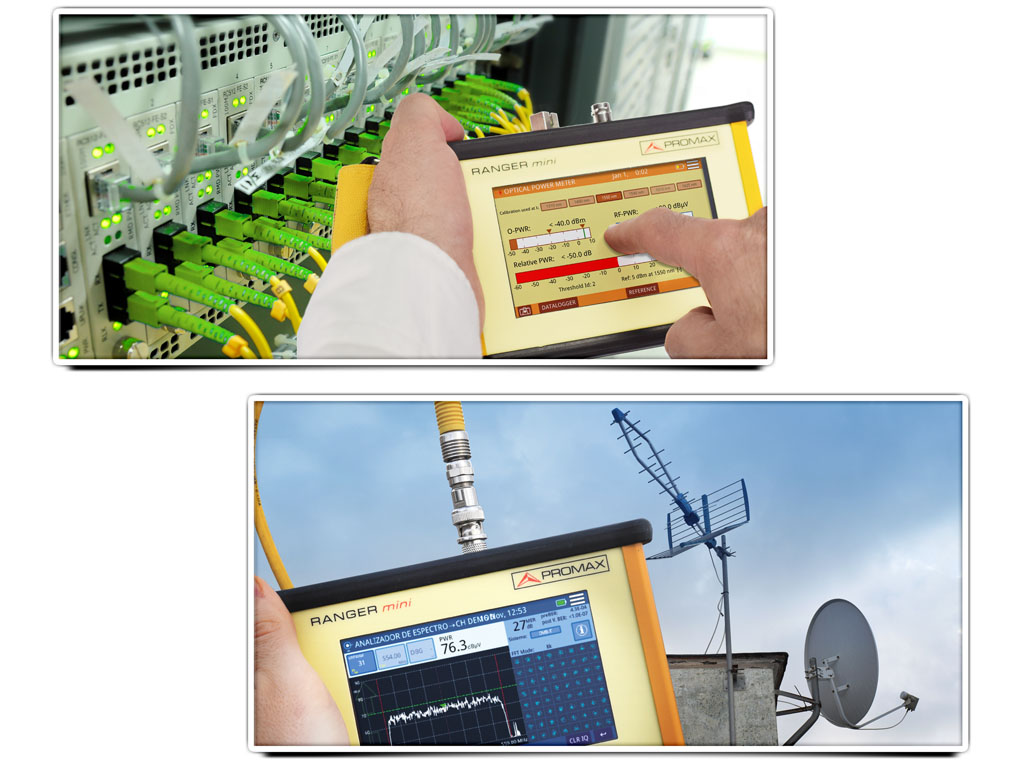

Aiming terrestrial antennas and satellite dishes, analyzing DOCSIS and installing optical fibre. The cost effective all-in-one compact analyzer for RF, CATV and optical fibre

The RANGER mini by PROMAX redefines efficiency in the certification of telecommunications networks. This multi-standard field strength meter is the ultimate professional solution for the deployment and maintenance of Digital TV systems (DVB-T2/S2, ISDB-T), DOCSIS CATV cable networks, and FM radio. Its ultra-compact and ruggedized design makes it the lightest and toughest handheld tool for outdoor technical work.

Optimized for the transition to next-generation networks, the RANGER mini offers an optional fiber optic analyzer with an optical-to-RF converter, facilitating comprehensive diagnostics in HFC and FTTH infrastructures. Thanks to its intuitive touch interface, it allows for real-time spectrum analysis and provides critical quality metrics (MER, preBER, postBER, and constellation diagram) on a single screen.

Ideal for broadcast engineers and outside plant technicians, this device includes advanced datalogger functions for automatic network audits and LNB powering (13V, 18V, 22kHz). If you are looking for a portable test equipment that combines technological versatility, global compatibility, and laboratory precision in a pocket-sized format, the PROMAX RANGER mini is the leading benchmark in the radiocommunications and digital television instrumentation market.

TUNINGFrom 5 to 2700 MHz (by frequency or by channel)
BANDWIDTH RESOLUTION230 kHz or 2 MHz
UNITSdBmV, dBµV, dBm
LNB SUPPLY13 V, 18 V, 22 kHz tone
CHANNEL PLANSCCIR, EIA, HRC, IRC, OIRL, FCC
(up to 10 standard and 30 customized)
STANDARDS AND MEASUREMENTS (analogue)
Terrestrial and Analogue TVLevel, A/V, C/N
Analogue CATVCSO, CTB, HUM
FMLevel, Audio carrier demodulation
STANDARDS AND MEASUREMENTS (digital)
Terrestrial DVB-TPower, MER, preBER, VBER, Constellation
Terrestrial DVB-T2Power, MER, preBER, LBER, Constellation
ISDB-TPower, MER, preBER, LBER, Constellation
Satellite DVB-S, DVB-S2Power, MER, preBER, LBER, Constellation
CATV
  QAM Annex A, QAM Annex BPower, MER, preBER, postBER, Constellation
  DOCSIS 2.0, DOCSIS 3.0Power, MER (over QAM channels), BER, Constellation, Upstream channel analysis
  DOCSIS 3.1Power, MER (estimated COFDM), Constellation, Upstream channel analysis
OPTICAL FIBRE (optional)
Optical bandFrom 1100 to 1700 nm
Optical power meterCalibrated at 1310, 1490, 1550 and 1625 nm
Optical to RF converterConversion to RF band from 45 MHz to 1700 MHz
Measurement toolsSpectrum analyzer, SCAN, TILT, Downstream DOCSIS analyzer
FUNCTIONSSCAN, TILT, Input voltage, RF power meter

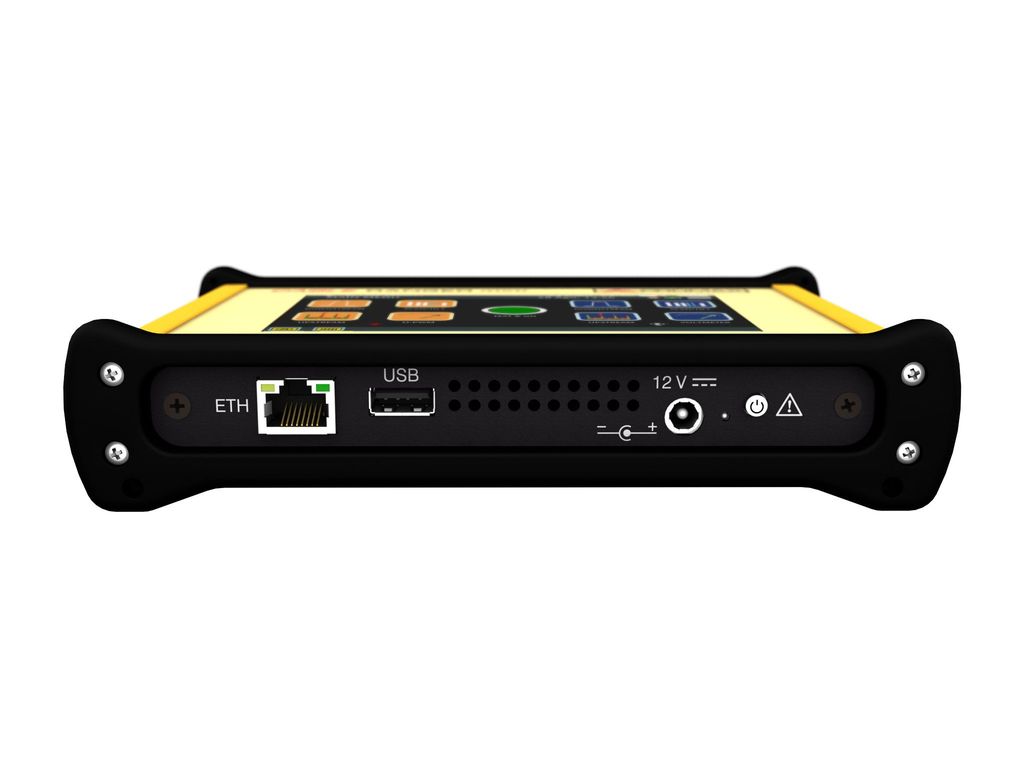

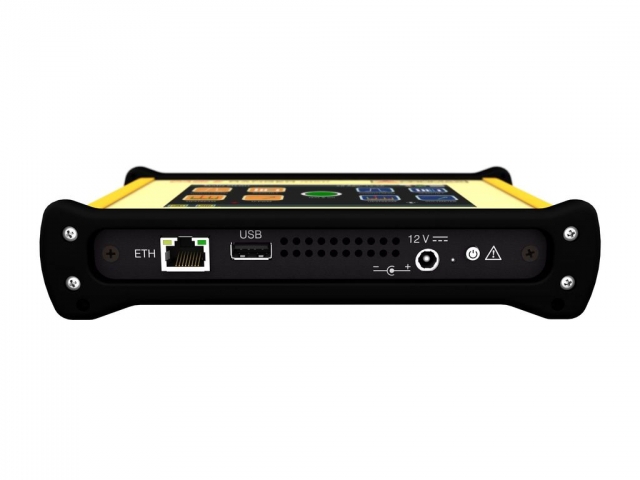

INPUTS AND OUTPUTSRF, USB, Ethernet, Power supply
SCREEN5” Touch screen TFT LCD
BATTERY OPERATION TIMEMore than 4 hours in continuous mode
MECHANICAL FEATURES
Dimensions177 (W.) x 117 (H.) x 30 (D.) mm
Weight700 gr
