Metrel MI3110 Electrical Installations Tester for IT Earthing Systems EUROTEST IM MI-3110

Code: Metrel MI3110 MI-3110 EUROTEST IM




Datasheet PDF, 0.41 Mb


Description

The MI 3110 EurotestIM is a perfect tool for testing permanent Integrated or mobile IT Earthing Systems with Low Voltage Electrical Installation’s Power Supply from Generator or Transformer.



MEASURING FUNCTIONS

  • IT System recognizing, Voltage Range and Voltage Balance;
  • ISFL Single Fault Leakage current from Phase 1 and Phase 2 to PE;
  • Fuse Trip-out Ability Evaluation, Line Impedance and Ipsc Prospective Short Circuit Current;
  • IMD Insulation / ELM Earth Leakage / RCM Residual Current Monitor Devices Control;
  • Alarm Trigger or Trip-Out Check and Adjust.



APPLICATIONS

  • Safety and functionality on IT installations in industry, in hospitals;
  • Marines and ships;
  • Mines, other special locations;
  • Connection of portable power generators;
  • Construction sites and Road maintenance;
  • Fire fighting mobile equipment, generators and pumps;
  • Military vehicles and generators;
  • SAT and radio / TV broadcasting mobile equipment;
  • Police vehicles and generators;
  • Safety and functionality on IT installations on the airports, concert halls, fair locations with generators;
  • Adjustment and calibrations of IMD devices.



STANDARDS

Safety

  • IEC/EN 61010 -1
  • EMC  IEC/EN 61326

Measurements

  • IEC/EN 61557
  • Parts 1 to 7 and 10: Equipment for testing, measuring and monitoring of protective measures
  • Part 8: Insulation monitoring devices for IT systems
  • Part 9: Equipment for insulation fault location for IT systems

Functionality

  • IEC/EN 60364 - 4 - 41/42/43, Protection for safety
  • IEC/EN 60364-6, Verification, testing and reporting
  • IEC/EN 60364-7, Requirements for special installations or locations
  • IEC / EN 60364-7-717, Mobile and transportable units
  • IEC 60364-7-710, Medical locations and associated areas
  • IEC 61892-6, Mobile and fixed offshore units - Electrical installations, Installation
  • IEC 60364-7-711, Electrical installations in exhibitions, shows, stands, and fun fairs
  • IEC 60364-7-708, Electrical installations in marinas and pleasure crafts.



SOFTWARE

PC SW EuroLink PRO is a strong creating tool of professional Visual Inspection Report and Testing Result Report.



TECHNICAL DATA

Dimensions (w x h x l): 230 x 103 x 115 mm.
Mass (without accessories): 1.1 kg.

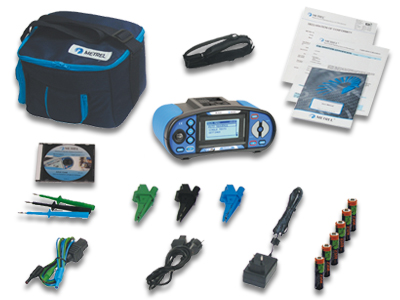

Standard accessories

MI 3110 Standard set MI 3110

  • Instrument MI 3110 EurotestIM
  • Soft carrying bag
  • Mains cable
  • Test lead, 1.5 m
  • Crocodile clip, black, green, brown
  • Test probe, black, green, brown
  • NiMH rechargeable batteries, type AA, 6 pcs
  • PC software EuroLink PRO
  • USB and RS232 cable
  • Instruction manual
  • Calibration certificate
