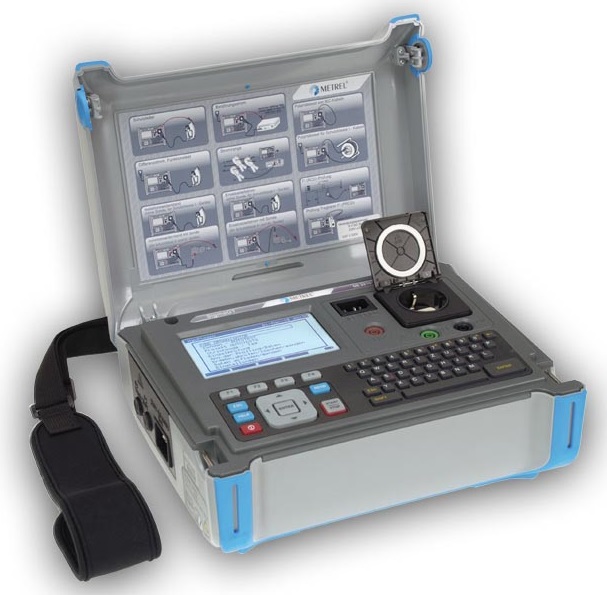

Metrel MI3310A SIGMAGT Safety Analyzer for Portable Electrical Equipment

Code: Metrel MI3310A MI-3310A SIGMAGT

Datasheet

PDF, 0.45 Mb

Description

The multifunctional portable test instrument SigmaGT is intended to perform all measurements for testing the electrical safety of portable electrical equipment. The operation of the unit is clear and simple, the operator does not need any special training to operate the instrument.

MEASURING FUNCTIONS

Earth bond / continuity resistance (200 mA, 10 A)
Insulation resistance
Insulation resistance of isolated accessible conductive parts
Substitute leakage current
Substitute leakage current of isolated accessible conductive parts
Differential leakage current
Touch leakage current
IEC cord polarity test
Leakage and TRMS load currents with current clamp
Portable RCD testing
RCD testing
Functional test

OTHER FEATURES

Innovative Active Polarity function for testing RCD protected cords while voltage is applied to tested item.
Fixed appliance testing is possible.
VDE autosequences are built-in into the instrument, up to 50 custom sequences can be added.
Bluetooth communication with printer, barcode scanner and PC.
Instrument can be powered from both mains supply and internal battery.
Support for RFID and barcoding system.
Project upoloading enables to upload previous test data for fast retesting of the object.
Trend functionality enables comparison of old and new test results on site.
Large graphic LCD display with resolution of 240 x 128 dots with backlight.
Over 6000 memory locations in data flash memory for storing test results and parameters.
Three communication ports (USB and 2 x RS232C) for communication with PC, barcode scanner and printer.
Soft touch keyboard with cursor keys.
Built-in real time clock.
Fully compatible with PATLink PRO PC software package.

TECHNICAL DATA

Dimensions: 310 x 130 x 250 mm

Mass (without accessories): 5 kg

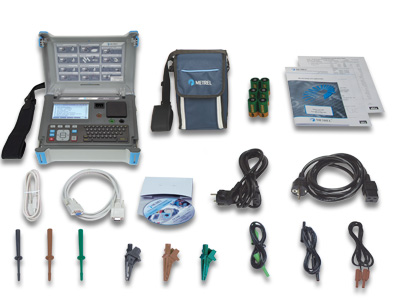

Standard accessories

MI 3310A Standard set MI 3310A

Instrument MI 3310A SigmaGT (with bluetooth)
Small soft carrying bag
Test lead, brown, green, black, 1.5 m
Crocodile clip, brown, green, black
Test tip, brown, green, black
PC software PATLink PRO
RS232 cable
USB cable
Instruction manual
Short instruction manual
Calibration certificate
NiMH rechargeable batteries, type C, 6 pcs
IEC test cable, 2 m
Mains cable 16 A
