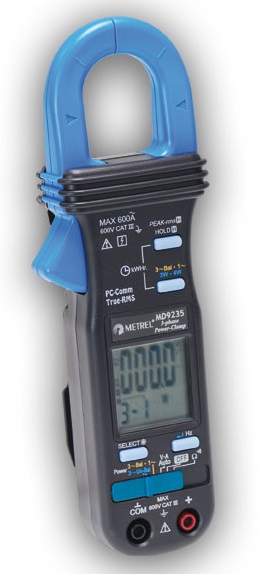

The MD 9235 is a Slim-Jaw current clamp meter with ability to measure 3-Phase Unbalanced-Load + kWHr recording. The MD 9235 enables TRMS AC current measurement up to 600 A, single and 3-phase power analysis, total power factor and resistance measurement. Display with large easy-to-read figures and one-handed operation make MD 9235 an extremely easy-to-use. This compact instrument combines a high level of functionality, small size and portability. All built-in features make MD 9235 a perfect tool for advanced Power applications.

TEST FUNCTIONS

TRMS AC, DC voltage measurement;
TRMS AC current measurement;
Resistance measurement;
Frequency measurement;
Continuity test (acoustic signaling);
Power parameters measurement.

TECHNICAL DATA

Dimensions (w x h x l): 78 x 40 x 189 mm

Mass (without accessories): 192 g

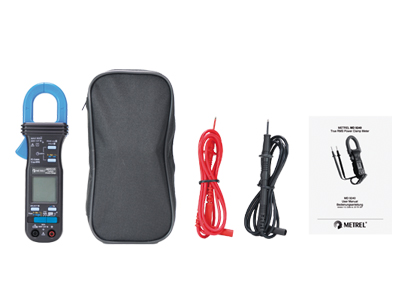

Standard accessories

MD 9235 Standard set

Current clamp MD 9235
Test lead with probe, 2 pcs
Pouch
1.5 V battery, type AAA, 2 pcs
Instruction manual
Warranty
