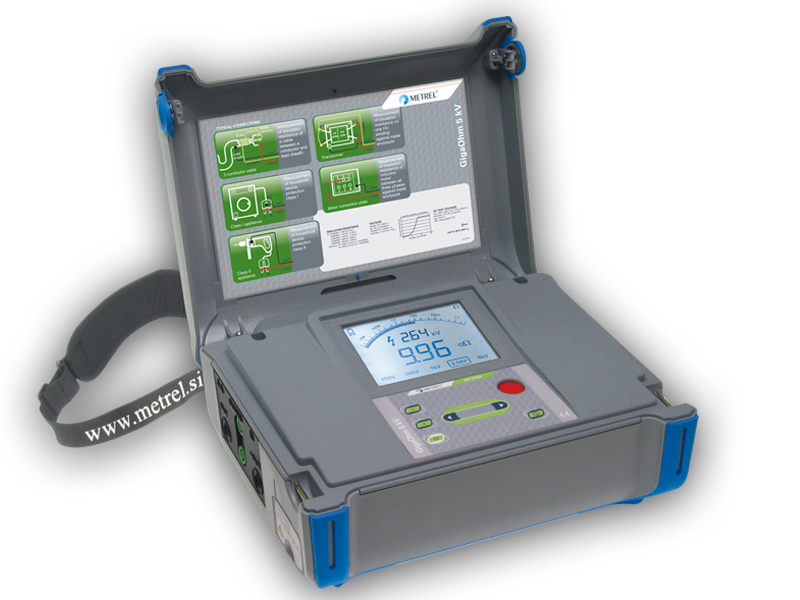

MI 3202 GigaOhm 5 kV provides a quick and accurate reading of insulation resistance. The large segment LCD screen with backlight offers easy reading of results. The analogue/digital display with analogue graph has a range of up to 1 T? for insulation resistance and 600 V for voltage measurements.

MEASURING FUNCTIONS

Quick setting - Quick & Easy test voltage selection
Faster testing - 5 mA current source for quick charging of capacitive loads
Safe - High CAT IV, 600 V voltage protection
Easy to read - Large, bright LCD display with backlight
Effective testing - High quality instrument, shielded test leads and accessories (included in the standard set)

STANDARDS APPLIED

Instruments operation:
IEC/EN61557-2

Electromagnetic compatibility:
EN 61326 class B

Safety:
EN 61010-1 (instrument)
EN 61010-031(accessories)

TECHNICAL DATA

Dimensions (w x h x l): 310 x 130 x 250 mm

Weight (with batteries, without accessories): 3 kg

Standard accessories

MI 3202 Standard set MI 3202

Instrument GigaOhm 5 kV
Mains cable
10 kV shielded test lead, black, 2 m
10 kV shielded test lead, red, 2 m
10 kV crocodile clip, 2 pcs (black, red)
Guard lead, green, 2 m
Crocodile clip, green
6 x 1.2 V NiMH rechargeable batteries, type C
Handbook on CD
Instruction manual
Calibration certificate
