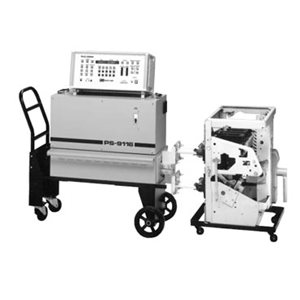

Model PS-9116 offers the latest developments in high-current transformers and microprocessor-based control. It combines lightweight, modular portability with high-current output capacity and maximum testing flexibility. This model incorporates the Model PLC-2000 controller and instrumentation package for storing and printing test results in the field or office. This unit tests most low-voltage breakers rated to 1600 amperes.

Features:

Portable, three piece chassis
Tests wide range of air-frame breakers
Test result printout capability
