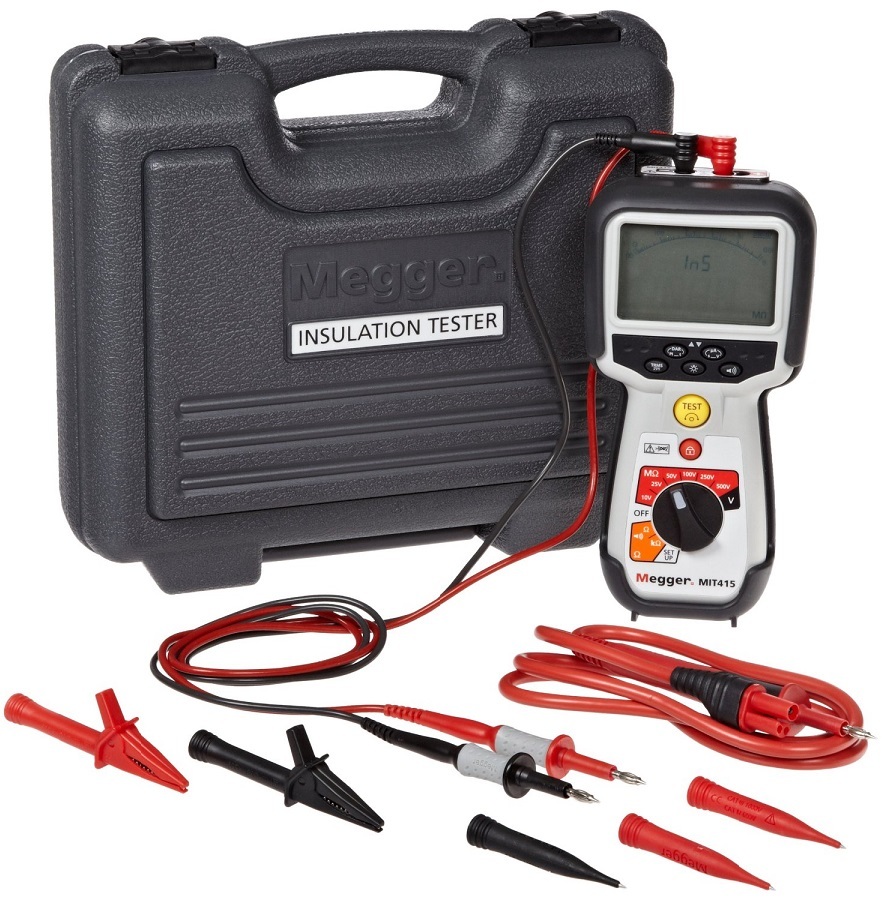

Megger MIT415 ESD Insulation Tester 500V
OBSOLET PRODUCT ( * OUT OF USE )

Code: Megger MIT415

Datasheet

PDF, 0.29 Mb

Description

• 10 V and 100 V ESD testing
• 25 V & 50 V signal cable insulation testing
• 250 V & 500 V Insulation testing up to 50 GO (500 V)
• Continuity testing at 200 mA or 20 mA from 0.01 O to 999 kO
• DC and TRMS AC voltage measurement
• Large backlit display
• Combined analogue and dual digital readout
• Weatherproof to IP54
• Supplied with AA alkaline

The Megger MIT415 insulation and continuity tester is designed for electrical testing by utilities, industrial, commercial and domestic electricians. The wide range of test voltages makes the MIT415 series ideal for the engineer or technician involved with combined applications of both communications circuits and power circuits such as would be found in elevator service/repair and routine maintenance. The low test voltage insulation ranges also makes the MIT415 ideal for ESD testing.

The MIT415 replaces the well-established BMM2000ESD insulation tester, gives greater functionality with simplified operation, greater application range and an ergonomically designed case.

Standard accessories

MIT400: basic CATIV 600 V with 250 V/500 V/1000 V insulation MIT400-EN

MIT410: as MIT400 + 50 V, 100 V, PI and DAR

MIT410-EN NSN:6625-99-354-2757

MIT415: 10 V, 25 V, 50 V, 100 V, 250 V, 500 V, PI and DAR 1000-351

MIT420: as MIT410 + result storage and recall + 200 GO

MIT420-EN NSN 6625-99-169-4728

MIT420-MIN: (NATO version - no batteries) 1000-309 NSN 6625-99-169-5675 MIT430: as MIT420 with Bluetooth download

MIT430-EN MIT40X: Special applications - selectable IT voltage 10-100 V MIT40X-EN

Included accessories

Hard case 5410-420

2 wire lead set to CAT IV 600 V, consisting of: Red and black leads, probes and clips with 1 x red long probe

Calibration certificate

SP5 Switched probe (not MIT400 or MIT40X) 1002-774

Owners information user guide CD

Recommended options

Optional accessories

Replacement 2 wire test lead set 1002-001

2 wire 500 mA fused test lead set 1002-015

Rubber boot with stand 6231-802

Pouch - test and carry case 2001-322
