Megger OTS60AF OTS80AF OTS100AF Oil Breakdown Tester 60kV 80kV 100kV

Code: Megger OTS60AF OTS80AF OTS100AF 60kV 80kV 100kV




Datasheet PDF, 0.51 Mb


Description

• Test voltages : 60 kV, 80 kV and 100 kV

• Laboratory instruments for measuring insulating oil breakdown voltage
• Lock in precision - oil vessel with lockable adjustment
• Bright 3.5" colour display
• Suitable for mineral, ester and silicon oils
• Trip detection circuit with direct measurement of voltage and current
• Ultra fast (< 10 µs) HV switch off time

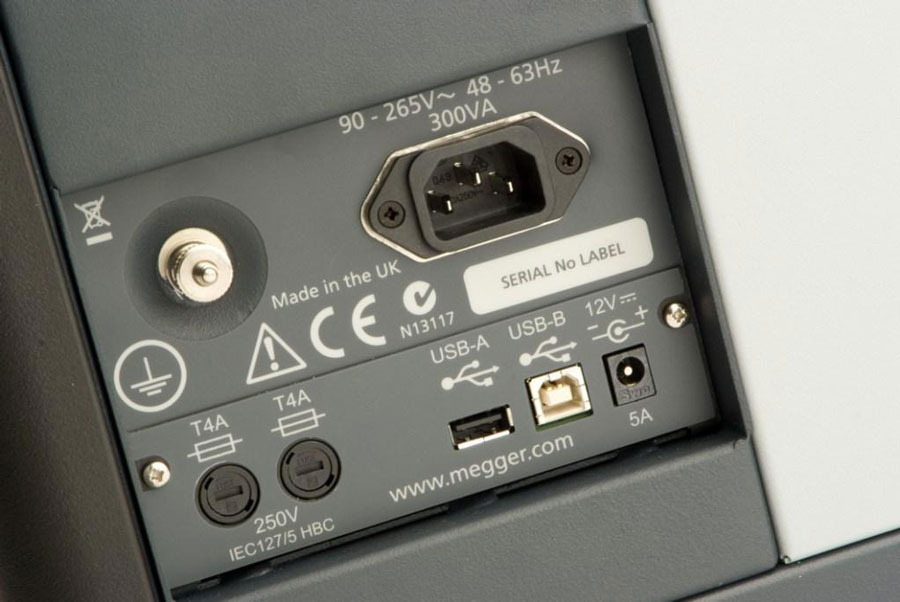

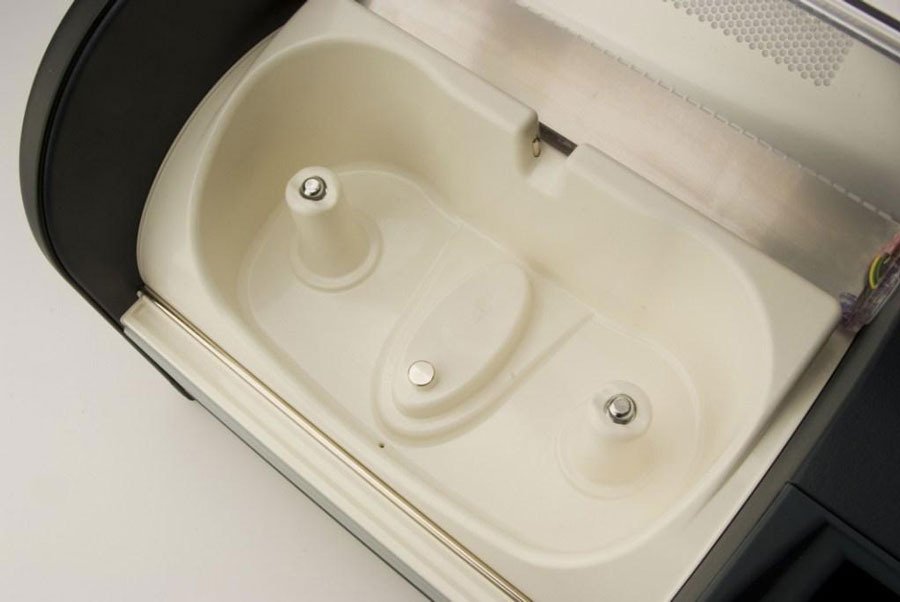

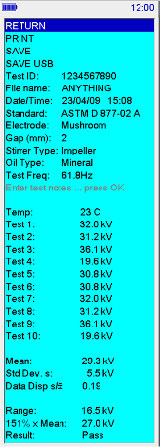

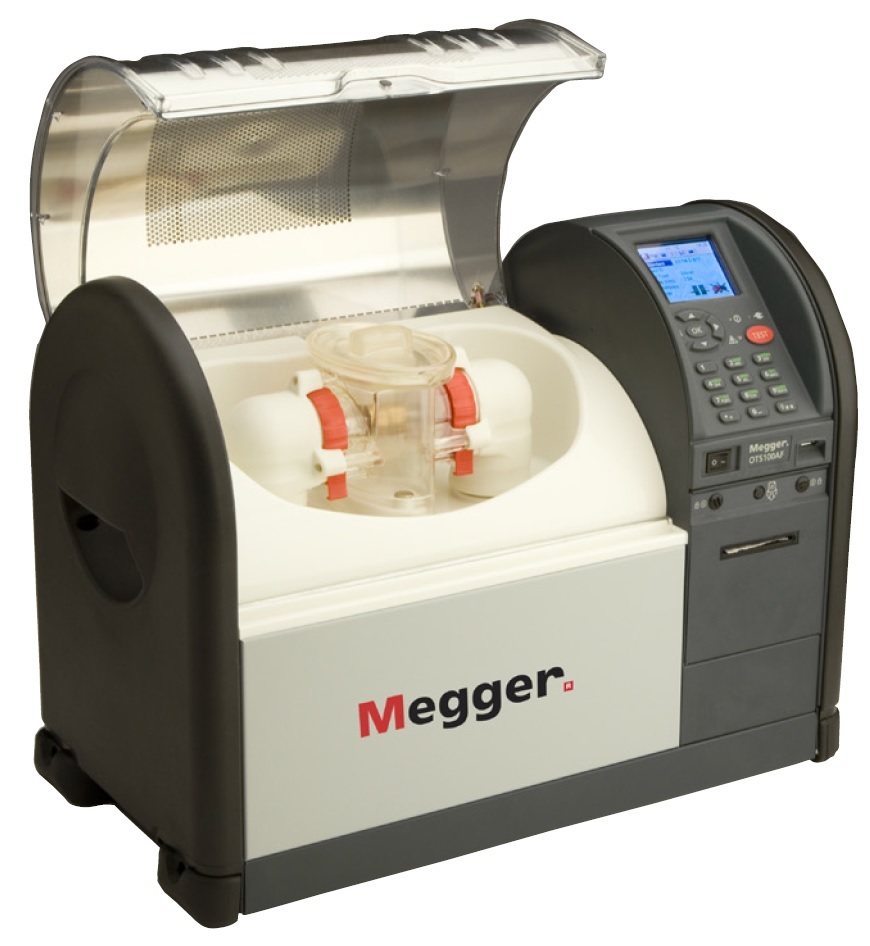

Megger’s automatic laboratory oil test sets perform accurate breakdown voltage tests on mineral, ester and silicon insulating liquids. Moulded test vessels give repeatable results with lock in precision electrode gap setting adjustment wheels. The transparent, shielded lid and large test chamber enable easy access to the test vessel.

All three laboratory models are fitted with a 12 key alphanumeric keypad to facilitate entry of test ID, filenames, notes etc. Alpha characters are entered by repetitive pressing on a key, the same way as text is entered modern cellular telephones.



Standard accessories

OTS60AF configured*

OTS80AF configured*

OTS100AF configured*



Included accessories (on all configurations)

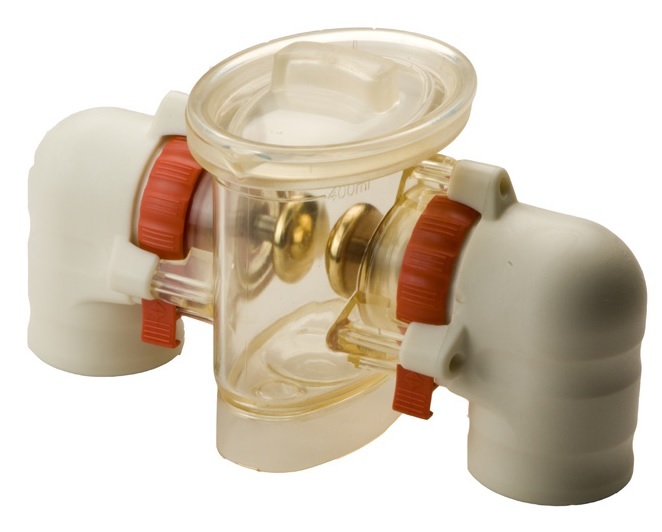

Vessel 400 ml assembly

Magnetic bead stirrers (2 off)

Magnetic bead retriever

Electrode gauge set 1, 2, 2.5, 2.54 mm 1002-144

User manual CD

PowerDB Lite software



Configured accessories (to order additional or spares)

IEC60156 electrode Set - 12.7 mm spherical (2),36 mm mushroom (2) 1001-477

ASTM D877/1816 electrode set - 25.4 mm cylindrical (2 std, and 2 none std), 36 mm mushroom (2) 1001-478

Full electrode set ASTM and IEC electrodes 1001-479

Vessel lid mounted impeller (ASTM D1816) for use with 400 ml vessel 1001-102



Recommended options

Optional accessories

Vessel 400 ml assembly (no electrodes supplied) 1001-473

Vessel 150 ml assembly (no electrodes supplied) 1001-474

VCM100D digital voltage checker 1001-105

VCM80D digital voltage checker 1001-801

Printer paper, 1 roll (MOV applies) (4 rolls supplied if printer configured) 25995-001

Barcode reader, USB 1001-047
