Pulsed Laser Diode Test System Keithley 2520

Code: Keithley 2520




Datasheet PDF, 0.26 Mb

Description

  • Simplifies laser diode LIV testing prior to packaging or active temperature control
  • Integrated solution for in-process LIV production testing of laser diodes at the chip or bar level
  • Sweep can be programmed to stop on optical power limit
  • Combines high accuracy source and measure capabilities for pulsed and DC testing
  • Synchronized DSP based measurement channels ensure highly accurate light intensity and voltage measurements
  • Programmable pulse on time from 500ns to 5ms up to 4% duty cycle
  • Pulse capability up to 5A, DC capability up to 1A
  • 14-bit measurement accuracy on three measurement channels (VF, front photodiode, back photodiode)
  • Measurement algorithm increases the pulse measurement's signal-to-noise ratio
  • Up to 1000-point sweep stored in buffer memory eliminates GPIB traffic during test, increasing throughput
  • Digital I/O binning and handling operations
  • IEEE-488 and RS-232 interfaces


More products KEITHLEY

2-SLOT SYSTEM DMM, DATA ACQUISITION, SWITCH, DATALOGGER KEITHLEY 2700

• Combines functions of DMM, switch system, and datalogger
• True 6½-digit (22-bit) resolution
• Choice of 12 switch/control plug-in modules
• Up to 200 differential input channels



PULSE PATTERN GENERATOR 165 MHZ KEITHLEY 3401-F / 3401-R

• 1 mHz - 165 MHz frequency output range
• 1 channel
• 3 ns - 1000 s pulse width range
• 10 V amplitude into 50 O, 20 V into 1 k O



DATA ACQUISITION CARD PCI 32-CHANNELS 250KSA/S KEITLHEY KPCI-3116

• 16-bit resolution
• Input speeds of up to 250kS/s
• Output speeds of up to 200kS/s
• Digital I/O scanning speeds of up to 3MHz
• 32 single-ended or 16 differential analog inputs
• 16 digital I/O lines
• 2 analog outputs, waveform quality, 200kS/s



PCI BOARD 8-ANALOG + 32 DIGITAL OUTPUT KEITHLEY KPCI-3130

• 20mA output current without power supply
• 8 analog outputs
• 32 high-current digital I/O lines (user configurable)



USB MODULAR DATA ACQUISITION UNIT USB 16-CHANNELS 500KSA/S KEITLHEY KUSB-3116

• USB 2.0 and USB 1.1, true plug-and-play compatibility
• 16 SE/ 8 DI analog input channels
• 16-bit resolution
• High and low programmable gains
• Input/output speeds up to 500kS/s
• Up to 33 digital I/O lines



USB MODULAR DATA ACQUISITION UNIT USB 8-CHANNELS 50KSA/S KEITLHEY KUSB-3100

• USB 2.0 and USB 1.1, true plug-and-play compatibility
• 8 SE analog input channels
• 12-bit resolution
• Input/output speeds up to 50kS/s
• High and low programmable gains
• Up to 16 digital I/O lines



PCI BOARD DIGITAL I/O 16-CHANNELS OPTICALLY ISOLATED KEITHLEY KPCI-PDISO8A

• 16 optically isolated solid-state relays and digital inputs
• Direct, non-polarized switching and sensing: DC up to 60VDC, AC up to 30Vrms
• High load current capability up to 350mA



USB MODULAR DATA ACQUISITION UNIT USB 16-CHANNELS 50KSA/S KEITLHEY KUSB-3108

• USB 2.0 and USB 1.1, true plug-and-play compatibility
• 16 SE/pseudo-DI/ 8 DI analog input channels
• 16-bit resolution
• High and low programmable gains
• Input/output speeds up to 50kS/s
• Up to 17 digital lines for monitoring or control

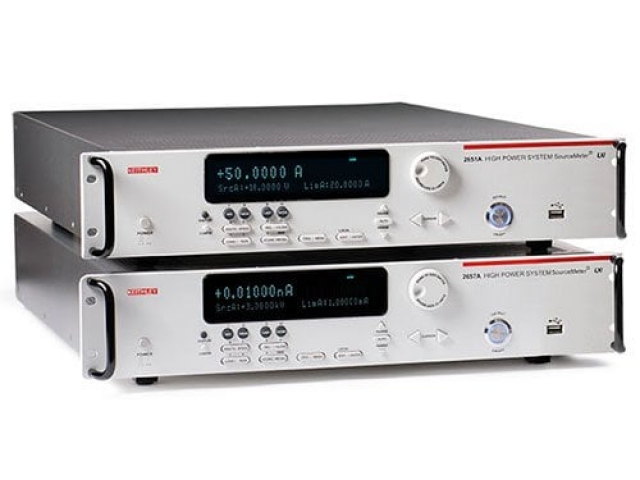

KEITHLEY 2650 2651A 2657A HIGH POWER SOURCE-METER
