High Voltage Power Supply 5 kV Keithley 248

• Source and sink (programmable load) 100fA to 100mA
• 10^14 O output impedance ensures stable current sourcing into variable loads
• Source AC currents from 2pA to 100mA for AC characterization of components and materials



• The two-channel Model 2182A Nanovoltmeter is optimized for making stable, low noise voltage measurements and for characterizing low resistance materials and devices reliably and repeatably



• Five instruments in one (IV Source, IVR Measure)
• Six models: 20 - 100W DC, 1000W pulsed, 1100V to 1uV, 10A to 10pA
• Source and sink (4-quadrant) operation
• 0.012% basic measure accuracy with 5½-digit resolution



• 2 DMMs in 1U high enclosure
• 1 Msample/s, 18-bit digitizers
• 10 nV, 0.1 µΩ and 1 pA sensitivities



• Move C-V measurement to any device terminal without re-cabling
• User-configurable for low current capability
• Personalize the names of output channels
• View real-time test status

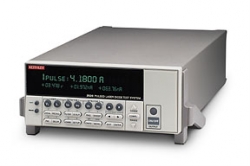

• Simplifies laser diode LIV testing prior to packaging or active temperature control
• Integrated solution for in-process LIV production testing of laser diodes at the chip or bar level
• Sweep can be programmed to stop on optical power limit
• Programmable pulse on time from 500ns to 5ms up to 4% duty cycle
• Pulse capability up to 5A, DC capability up to 1A



• 16 optically isolated solid-state relays and digital inputs
• Direct, non-polarized switching and sensing: DC up to 60VDC, AC up to 30Vrms
• High load current capability up to 350mA



• 6.5 digit DMM
• Single-instrument solution for continuity and hi-pot type leakage resistance measurements
• Programmable constant V source (50-500V) supports high speed, high resistance measurements
• Programmable constant I source (0-50mA) with dry circuit clamp helps prevent device stress or damage during low resistance measurements



• 12-bit resolution
• Throughput of up to 400kS/s
• Digital I/O scanning speeds of up to 3MHz
• 16 single-ended or 8 differential analog inputs
• 23 digital I/O lines



• USB 2.0 and USB 1.1, true plug-and-play compatibility
• 16 SE/pseudo-DI/ 8 DI analog input channels
• 12-bit resolution
• High and low programmable gains
• Input/output speeds up to 100kS/s
• Up to 17 digital I/O lines
